Description
RF Venue SPECTRUM-RECORDER Overview

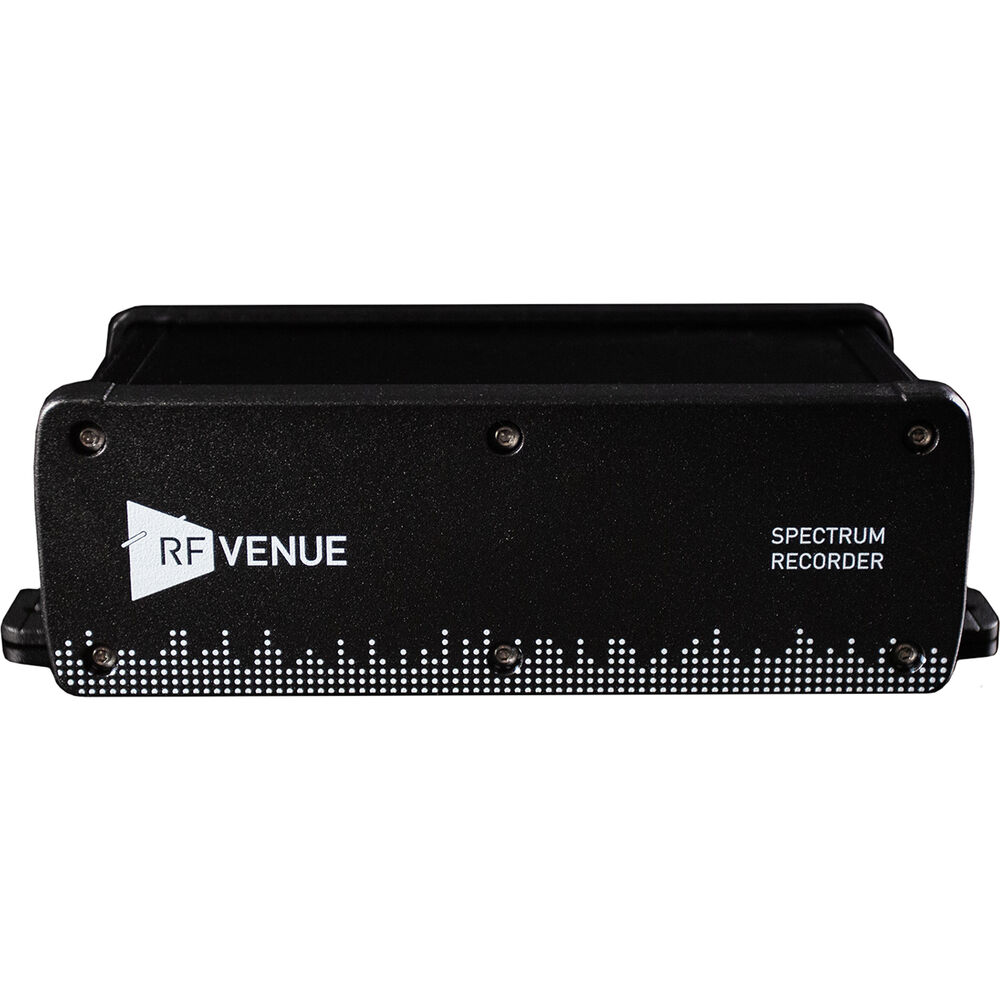

The Spectrum Recorder from RF Venue is a compact, standalone data recording device designed to assist in monitoring and optimizing wireless microphone and in-ear monitor systems. The Spectrum Recorder continuously captures RF spectrum activity in the 400 to 700 MHz UHF band and writes CSV-formatted scan files to its internal storage drive. These time-stamped scan files can be retrieved directly with a USB thumb drive or accessed remotely over a local network connection.
Versatile and Portable
Connect the Spectrum Recorder directly to your wireless microphone antenna system or use the included whip antenna to capture spectrum data for a site survey. PoE capable and battery ready, the Spectrum Recorder is small and lightweight enough to easily ship to a remote location or deploy across many rooms on a fixed installation.
Use with a Wide Variety of Wireless Systems

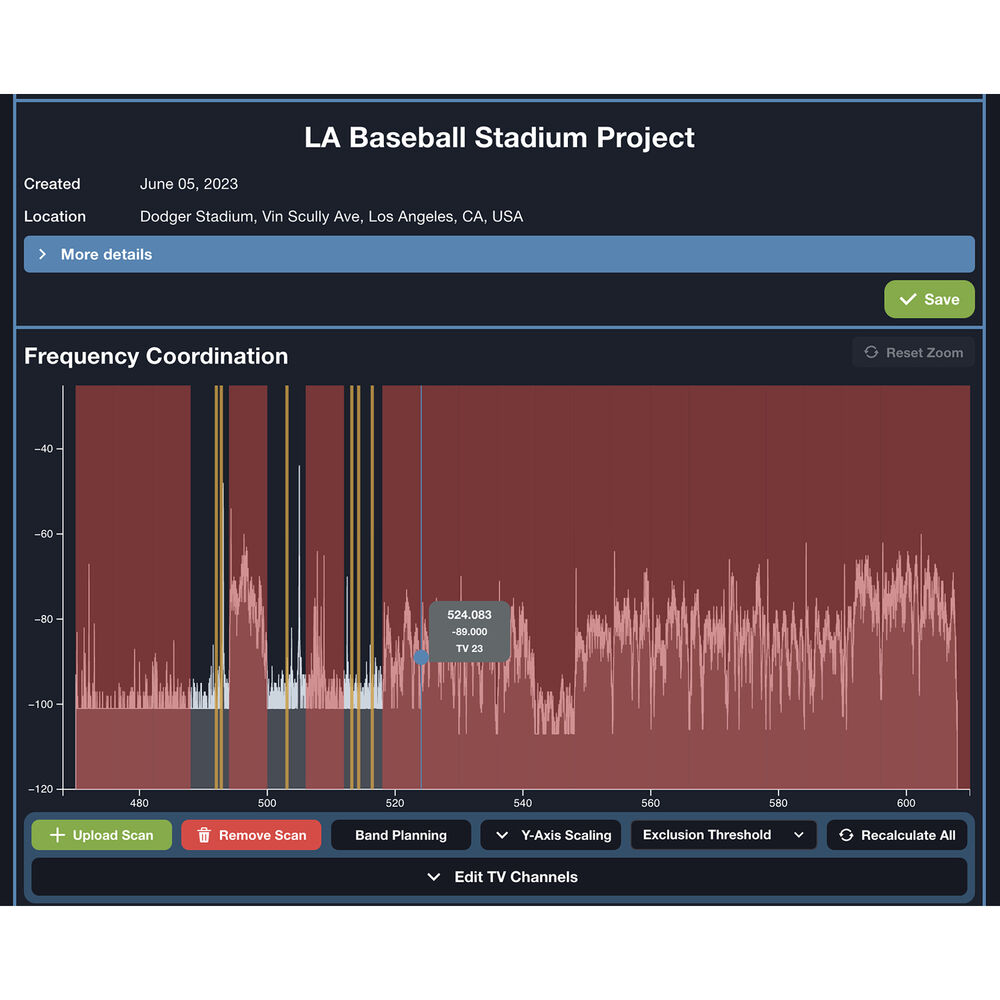

Spectrum Recorder's data can be uploaded to RF Venue's free web-based Wireless System Builder tool for system design and frequency coordination, or imported natively to third-party software like Shure Wireless Workbench and Audio-Technica Wireless Manager. No software installation is needed, and no cloud subscriptions are required.
Features
- Automatic spectrum recording: instant and continuous capture of spectrum activity from 400-700 MHz. No spectrum analyzer or complex test equipment required.
- 24-hour scan data capture: see the entire scope of spectrum activity over 24 hours. Max Hold and Average scan views are captured and calculated automatically.
- Active frequencies scan: separate fixed transmitters such as DTV stations from surprise interference sources. The Active Scan compiles hard to detect frequencies to help protect your wireless system from interference hits.
- Power over Ethernet (PoE) capable: deploy the Spectrum Recorder where needed with just an ethernet connection. Easily cover multiple rooms, buildings, or studios with a network of Spectrum Recorders.
- Battery power ready: No power? No problem. Spectrum Recorder's 5V USB-C DC power input can accommodate common portable power banks used for charging mobile devices. A 10,000mAh battery can power the Spectrum Recorder for several days.
- No software installed, no subscription fees: the Spectrum Recorder does not connect to any outside services or require any onsite software installation. IT professionals can use the Spectrum Recorder MAC address to assign a fixed IP address if desired.
- Updates and upgrades: look for exciting new capabilities for the RF Venue Spectrum Recorder as it grows and develops into the primary hub for all your RF spectrum data.
UPC: 658580646882
Items Included
- RF Venue Spectrum Recorder Network and USB Spectrum Data Recorder for Wireless Microphones and IEMs
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
RF Venue SPECTRUM-RECORDER Specs

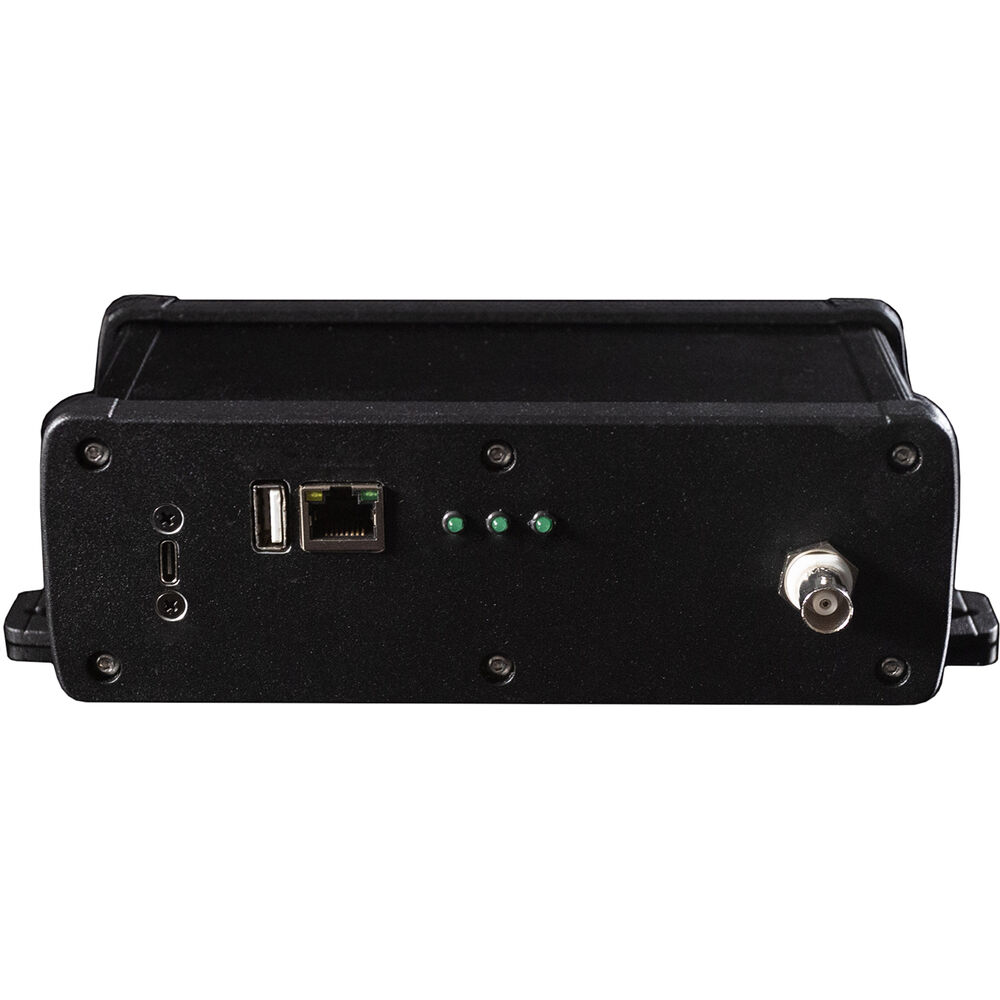

Inputs/Outputs
| USB I/O |
1 x USB-C (Power Only) Female Input/Output
1 x USB-B Female Output |
| Audio I/O |
1x BNC Coaxial Input
|
| Network I/O |
RJ45 Connector
|
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
USB, PoE
|
| DC Input Power |
5 VDC
|
Physical
| Color |
Black
|
| Environmental Resistance |
No
|
| Dimensions |
9 x 6 x 3" / 22.9 x 15.2 x 7.6 cm
|
| Weight |
3 lb / 1.4 kg
|
Packaging Info
| Package Weight |
2.815 lb
|
| Box Dimensions (LxWxH) |
12.2 x 10.5 x 6.1"
|
