Description

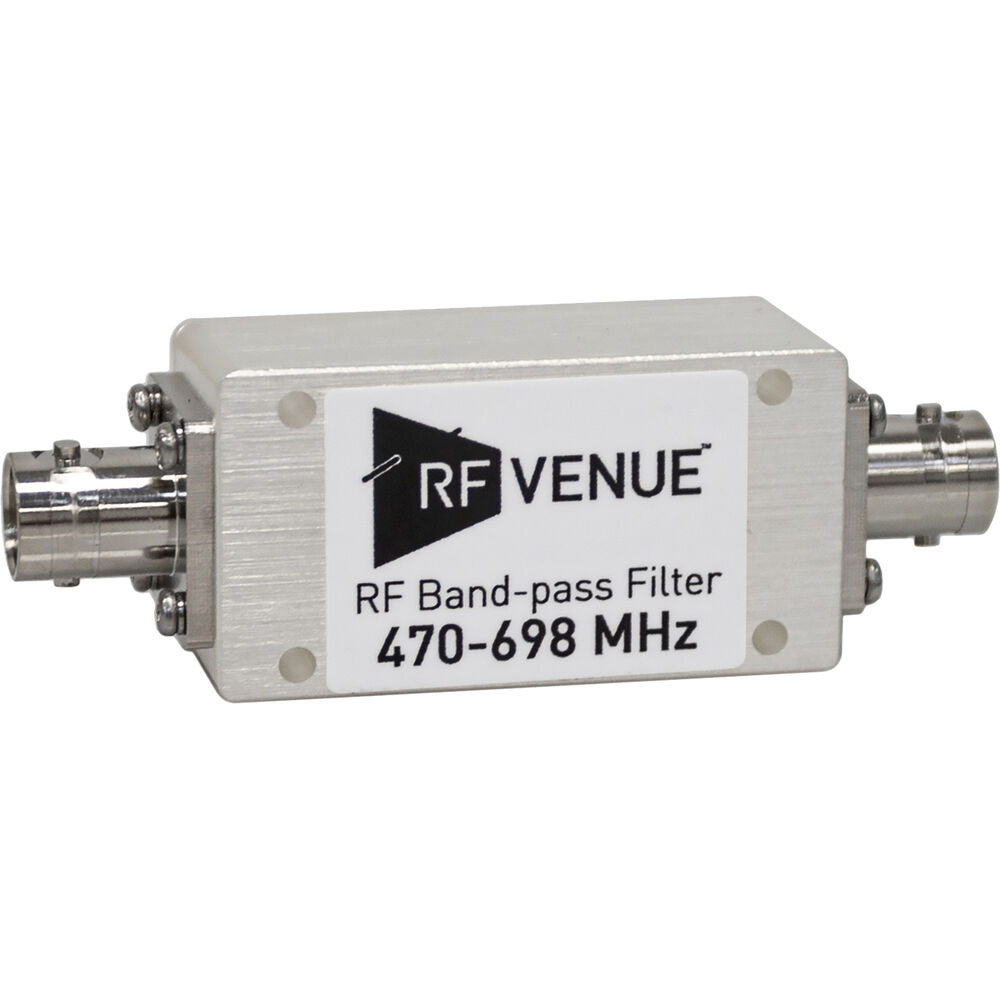

RF Venue BPF470T698 Overview
Get better performance from your wireless microphone system with the RF Venue RF Band-Pass Filter (470 to 698 MHz). RF Venue band-pass filters help eliminate out of band signals that can saturate the front end of wireless microphone receivers, greatly improving dynamic range by reducing noise and third-party interference outside the range of operation.
There's no power or user configuration required; simply connect the band-pass filter in-line with your wireless microphone receiver's remote antenna BNC connections for 40 dB of side rejection. This version of the filter is hand-tuned to filter out everything except frequencies between 470 to 698 MHz, allowing it to work with most wireless microphone systems operating in that frequency spectrum.
- Two band-pass filters are required for diversity wireless microphone systems
- Band-pass filters do not pass DC bias and cannot be used with active antennas
- Not for use with in-ear monitor or other transmit applications
In the Box
- RF Venue RF Band-Pass Filter (470 to 698 MHz)
- Limited 1-Year Manufacturer Warranty
RF Venue BPF470T698 Specs
| Power |
2 W
|
| Bandpass |
470 to 698 MHz
|
| Rejection |
40 dB at DC to 432 MHz
20 dB at 432 to 442 MHz 20 dB at 750 to 766 MHz 40 dB at 766 to 1000 MHz |
| Insertion Loss |
3.5 dB (Max)
|
| Ripple |
1.5 dB (In-Band Max)
|
| VSWR Max |
1.5
|
| Operating Temperature |
-22 to 158°F / -30 to 70°C
|
| Dimensions |
3 x 1.75" / 7.6 x 4.45 cm
|
| Weight |
Not Specified by Manufacturer
|
