Description

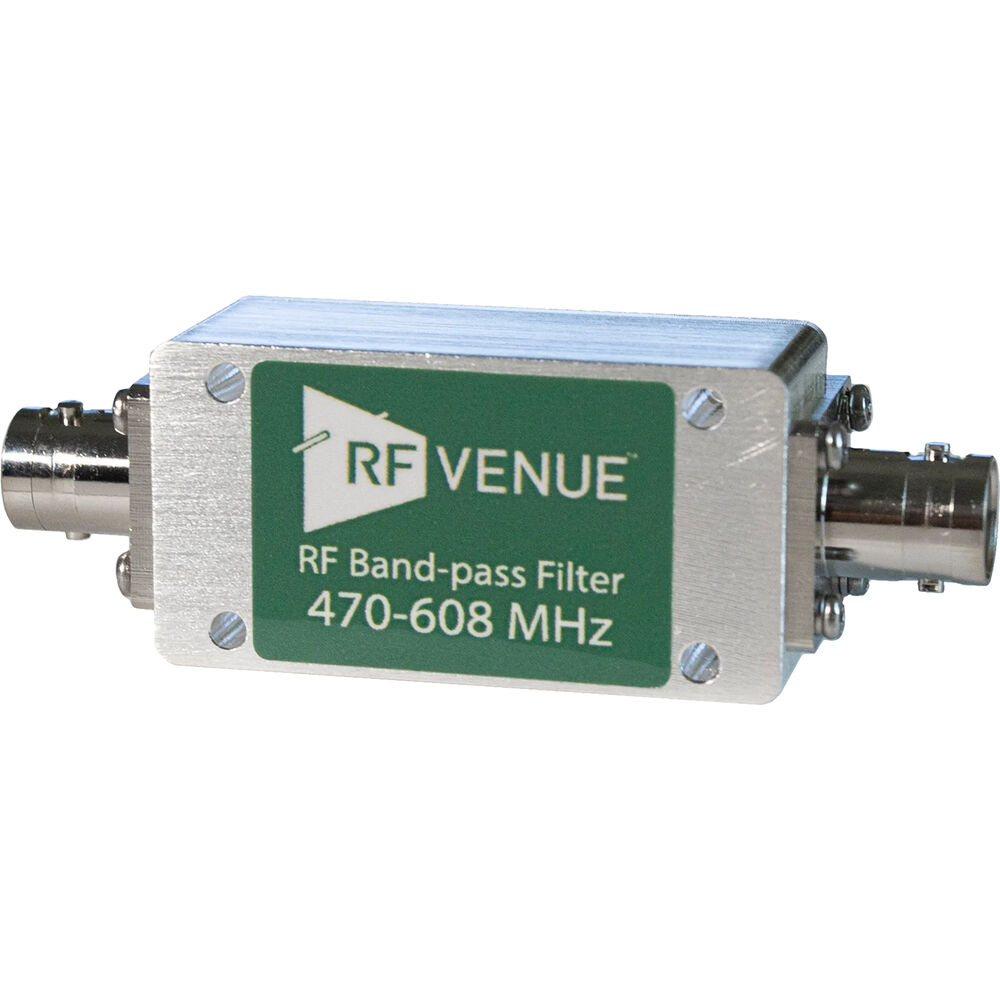

RF Venue BPF470T608 Overview
Get better performance from your wireless microphone system with the RF Venue Band-Pass Filter (470 to 608 MHz). RF Venue band-pass filters help eliminate out of band signals that can saturate the front end of wireless microphone receivers, greatly improving dynamic range by reducing noise and third-party interference outside the range of operation.
There's no power or user configuration required; simply connect the band-pass filter in-line with your wireless microphone receiver's remote antenna BNC connections for 40 dB of side rejection. This version of the filter is hand-tuned to filter out everything except frequencies between 470 to 608 MHz, optimizing it for use in North America and allowing it to work with most wireless microphone systems operating in that frequency spectrum.
- Two band-pass filters are required for diversity wireless microphone systems
- Band-pass filters do not pass DC bias and cannot be used with active antennas
- Not for use with in-ear monitor or other transmit applications
In the Box
- RF Venue RF Band-Pass Filter (470 to 608 MHz)
- Limited 1-Year Manufacturer Warranty
RF Venue BPF470T608 Specs
| Power |
2 W
|
| Bandpass |
470 to 608 MHz
|
| Rejection |
40 dB at DC to 412 MHz
20 dB at 412 to 426 MHz 20 dB at 655 to 668 MHz 40 dB at 668 to 1000 MHz |
| Insertion Loss |
3.5 dB (Max)
|
| Ripple |
1.5 dB (In-Band Max)
|
| VSWR Max |
1.5
|
| Operating Temperature |
-22 to 158°F / -30 to 70°C
|
| Dimensions |
3 x 1.75" / 7.6 x 4.45 cm
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.165 lb
|
| Box Dimensions (LxWxH) |
4.35 x 2.15 x 2.05"
|
