Description
RF Venue ILAMP Overview

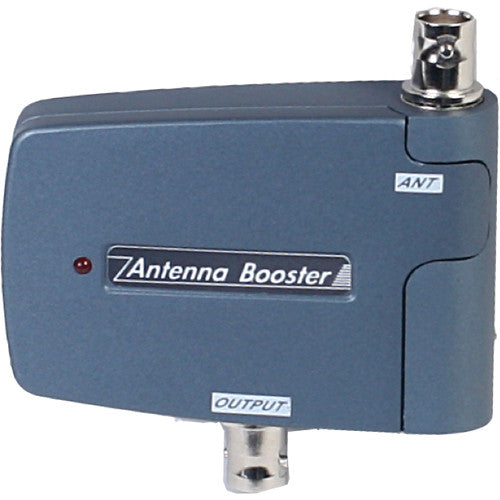

The RF Venue ILAMP-ACT is an in-line amplifier designed to compensate for RF antenna signal loss on long coax runs.
One ILAMP-ACT provides 10 dB of gain, enough to compensate for 66' of RG-58 cable. For longer runs, up to two in-line amps can be cascaded using either a BNC female to BNC female adapter or a coax jumper cable (both available separately).
The unit can be powered via the antenna power output from an antenna distributor or a receiver, or using the included AC adapter. A red light indicates the unit is getting power.
A wall-mount adapter is included for installs.
Note that two ILAMP-ACT in-line amps are required for diversity applications.
UPC: 718122341511
In the Box
- RF Venue ILAMP-ACT Active In-Line Amplifier for RF Antenna Signal (Coaxial, 470 to 960 MHz)
- Wall-Mount Adapter
- AC Power Adapter
RF Venue ILAMP Specs
| Frequency Band | 470 to 960 MHz |
| Gain | 10 dB, Nominal |
| Operation Voltage | 12 VDC, 0.5 A |
| Power Level | -60 to -20 dBm |
| Connector 1 | BNC Female |
| Connector 2 | BNC Female |
| Dimensions | 3 x 0.7 x 3" / 75 x 18.2 x 77 mm |
| Weight | 4.9 oz / 140 g |
Packaging Info
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 14.8 x 3.8 x 2.5" |
