Description

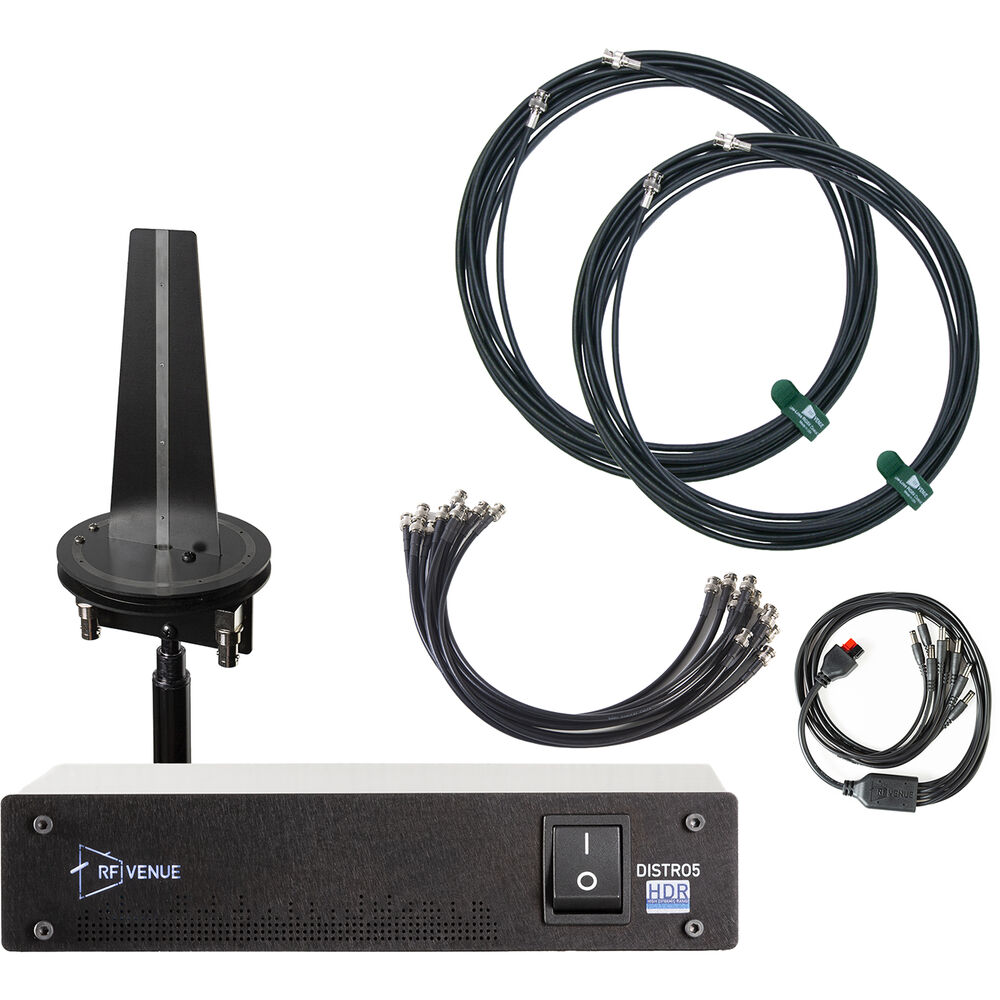

Improve the performance of your wireless microphone system with the Diversity Omni Antenna and DISTRO5 HDR 5-Channel UHF Distribution System Bundle from RF Venue. The turnkey package includes the Diversity Omni Antenna and the DISTRO5 HDR Active Antenna Splitter. Also included are two 25' low-loss coaxial antenna cables as well as a 10-pack of 1.5' low-loss BNC cables to distribute the RF signal from the splitter to up to 5 receivers. The included DC Octopus cable distributes 12 VDC power to the receivers, eliminating wall warts and the need for dedicated rack power distribution.
The DISTRO5 HDR 5-Channel UHF Antenna Distribution System from RF Venue is a high-dynamic-range active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers via coaxial cables (antennas, receivers, and cables available separately). In addition, the unit features a DC power input, allowing you to power it from a DC battery input for location work, and a DC power output, allowing you to power up to 8 receivers or compatible 12 VDC devices using a DC Octopus cable (available separately).
The all-metal, half-rack splitter includes long and short rack ears along with mounting hardware. For larger setups, you can cascade an additional DISTRO5 HDR unit (available separately) for a single 1 RU rack space of RF distribution for up to 9 receivers.
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to five receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 8 receivers via Octopus cable (available separately)
- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTRO5 HDR unit and receivers
- Wide UHF bandwidth from 470 to 698 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- Compact half-rack size to install near receivers
Improve the coverage and reduce dropouts in your UHF wireless microphone system with the Diversity Omni Antenna from RF Venue. Well suited for use in sports venues, amphitheaters, and theme parks, this innovative design puts two antennas on a single stand, providing both horizontal and vertical coverage in an omnidirectional pattern. The compact size allows you to easily position the antenna at the optimal spot for the best reception, while the weather-resistant design allows for outdoor use, simply by installing the included Cordura nylon cover. The Diversity Omni connects to your antenna distributor via two coaxial BNC connectors.
The DC Octopus 8-Connector Power Distribution Cable from RF Venue includes the Anderson PowerPole connector and is compatible with the DISTRO9 HDR.
This black, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.
Items Included
- RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
- Half-Rack Connecting Plate and Hardware
- Set of Rack Ears (Long and Short)
- IEC Power Cord
- Limited 2-Year Manufacturer Warranty
- RF Venue Diversity Omni Antenna for UHF Wireless Mic Systems (470 to 616 MHz)
- Stand Mount
- Weather-Resistant Cover
- Limited 2-Year Manufacturer Warranty
- RF Venue DC Octopus 8-Connector Power Distribution Cable
- Limited 2-Year Manufacturer Warranty
- 2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
- Limited 2-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Output |
5A, 12 VDC
|
| Material of Construction |
Metal
|
| Package Weight |
7 lb
|
| Box Dimensions (LxWxH) |
19.8 x 14.3 x 9"
|
