Description
RF Venue DFIN Overview

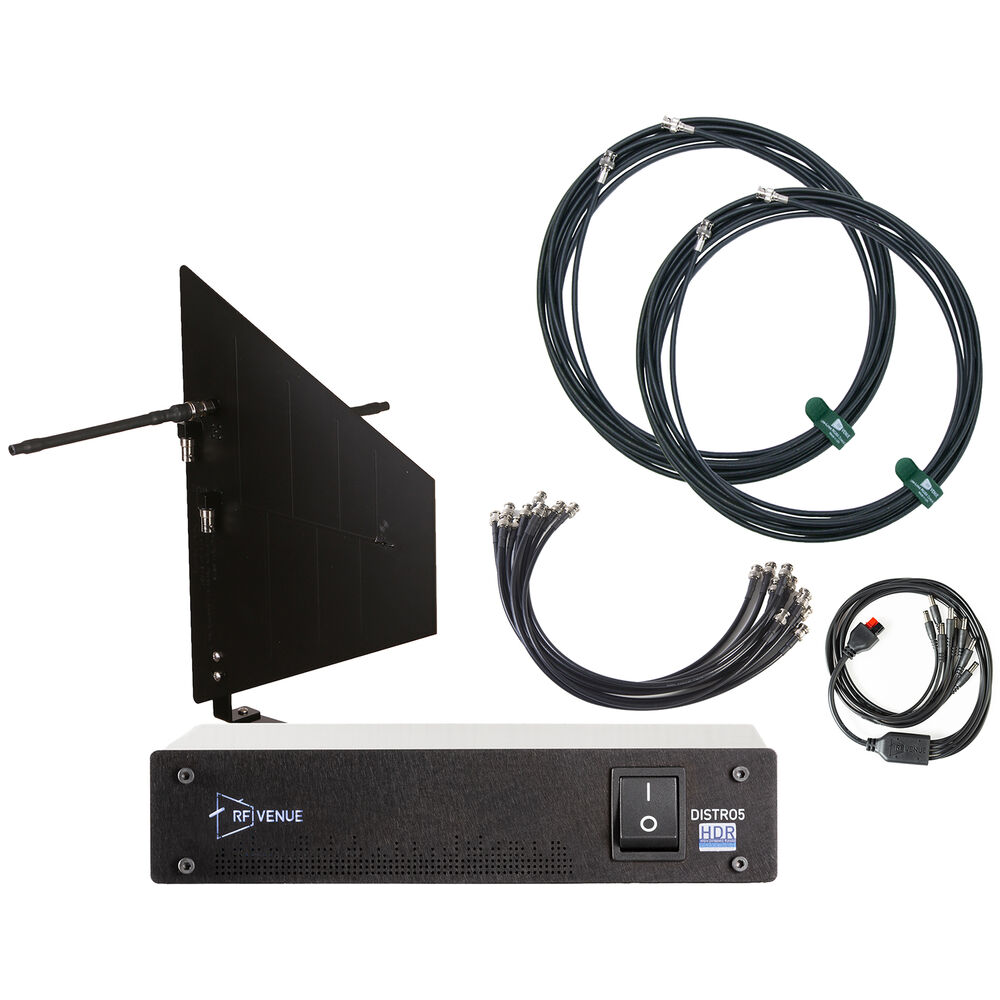

Improve the wireless microphone reception and reduce dropouts in your classroom, event space, or conference room with the black Diversity Fin Wall-Mount Antenna and DISTRO5 HDR 5-Channel UHF Distribution System Bundle from RF Venue. This turnkey package conveniently bundles the black Diversity Fin antenna with wall mount bracket (for permanent installations) with an active, half-rack, 5-channel splitter capable of splitting the RF signals from the antenna's A and B diversity connections, amplifying them, and sending them to multiple receivers. The package also includes a pair of black 25' coaxial low-loss antenna cables as well as a 10-pack of 1.5' low-loss coaxial cables to distribute the RF signal. The included DC Octopus cable distributes 12 VDC power to the receivers, eliminating wall warts and the need for dedicated rack power distribution.
The black RF Venue Diversity Fin is a multi-purpose antenna that reduces dropouts using a proprietary, cross-polarized hybrid design. It is compatible with diversity wireless microphone systems of any brand. The antenna comes equipped with a wall-mount bracket for permanent installations.
The Diversity Fin combines one LPDA and one dipole antenna in an orthogonal (right-angle) configuration. One element captures vertically polarized waves and the other horizontally polarized waves�doing the same job as two shark-fin paddles. This design greatly improves RF and audio performance in high-profile live sound events, film and TV productions, or routine installations in schools and houses of worship.
To use, just connect both the A and B outputs (coaxial cables available separately) to any antenna distribution system or wireless receiver, and point the antenna toward the stage.
The DISTRO5 HDR 5-Channel UHF Antenna Distribution System from RF Venue is a high-dynamic-range active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers via coaxial cables (antennas, receivers, and cables available separately). In addition, the unit features a DC power input, allowing you to power it from a DC battery input for location work, and a DC power output, allowing you to power up to 8 receivers or compatible 12 VDC devices using a DC Octopus cable (available separately).
The all-metal, half-rack splitter includes long and short rack ears along with mounting hardware. For larger setups, you can cascade an additional DISTRO5 HDR unit (available separately) for a single 1 RU rack space of RF distribution for up to 9 receivers.
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to five receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 8 receivers via Octopus cable (available separately)
- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTRO5 HDR unit and receivers
- Wide UHF bandwidth from 470 to 698 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- Compact half-rack size to install near receivers
The DC Octopus 8-Connector Power Distribution Cable from RF Venue includes the Anderson PowerPole connector and is compatible with the DISTRO9 HDR.
This black, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.
Items Included
- RF Venue Diversity Fin Antenna with Wall-Mount Bracket for Wireless Microphone Systems (Black, 470 to 698 MHz)
- Limited 1-Year Warranty
- RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
- Half-Rack Connecting Plate and Hardware
- Set of Rack Ears (Long and Short)
- IEC Power Cord
- Limited 1-Year Manufacturer Warranty
- RF Venue DC Octopus 8-Connector Power Distribution Cable
- Limited 1-Year Manufacturer Warranty
- 2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
RF Venue DFIN Specs
| Frequency Band |
470 to 698 MHz
|
| Bandwidth |
228 MHz
|
| Average Return Loss |
-9.4 dB
|
| Impedance |
50 Ohms
|
| LPDA |
Beam Width: 140° Azimuth
F/B Ratio: -8 dB F/S Ratio: -5 dB Gain: 5 dBd |
| Dipole |
Beam Width: 100° Azimuth
F/B Ratio: -5 dB F/S Ratio: -13 dB Gain: 1.8 dBd |
| Connectors |
2 x BNC Female
|
| Mounting |
Wall-Mount Bracket
|
| Operating Temperature |
-9.4 to 129°F / -23 to 54°C
|
| Dimensions |
11.8 x 14.5" / 300 x 370 mm
|
| Weight |
16 oz / 454 g
|
| Package Weight |
1.355 lb
|
| Box Dimensions (LxWxH) |
14.4 x 11.4 x 2.1"
|
RF Venue DFIN Specs
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Output |
5A, 12 VDC
|
| Material of Construction |
Metal
|
| Package Weight |
7 lb
|
| Box Dimensions (LxWxH) |
19.8 x 14.3 x 9"
|
RF Venue DFIN Specs
| Compatibility |
Not Specified by Manufacturer
|
| Connector 1 |
1x BNC Male
|
| Connector 2 |
1x BNC Male
|
| Color |
Black
|
| Cable Length |
25' / 7.6 m
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
14.2 x 13 x 2.55"
|
RF Venue DFIN Specs
| Color |
Black
|
| Cable Length |
1.5' / 0.5 m
|
| Package Weight |
1.1 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.2 x 1.8"
|
