Description

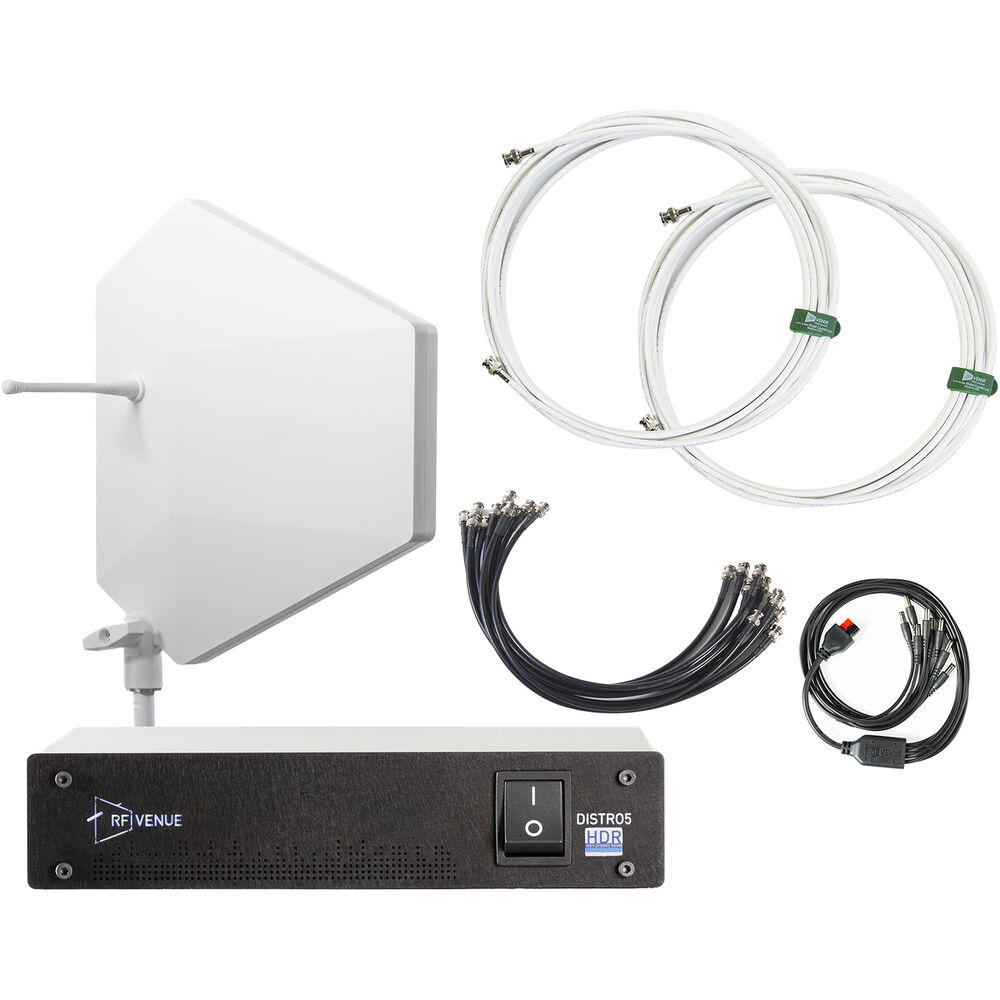

Improve the performance of your wireless microphone system with the Diversity Fin IPX Antenna and DISTRO5 HDR 5-Channel UHF Distribution System Bundle from RF Venue. The turnkey package includes the white, all-weather Diversity Fin IPX Antenna and the DISTRO5 HDR Active Antenna Splitter. Also included are two 25' low-loss coaxial antenna cables as well as a 10-pack of 1.5' low-loss BNC cables to distribute the RF signal from the splitter to up to 5 receivers. The included DC Octopus cable distributes 12 VDC power to the receivers, eliminating wall warts and the need for dedicated rack power distribution.

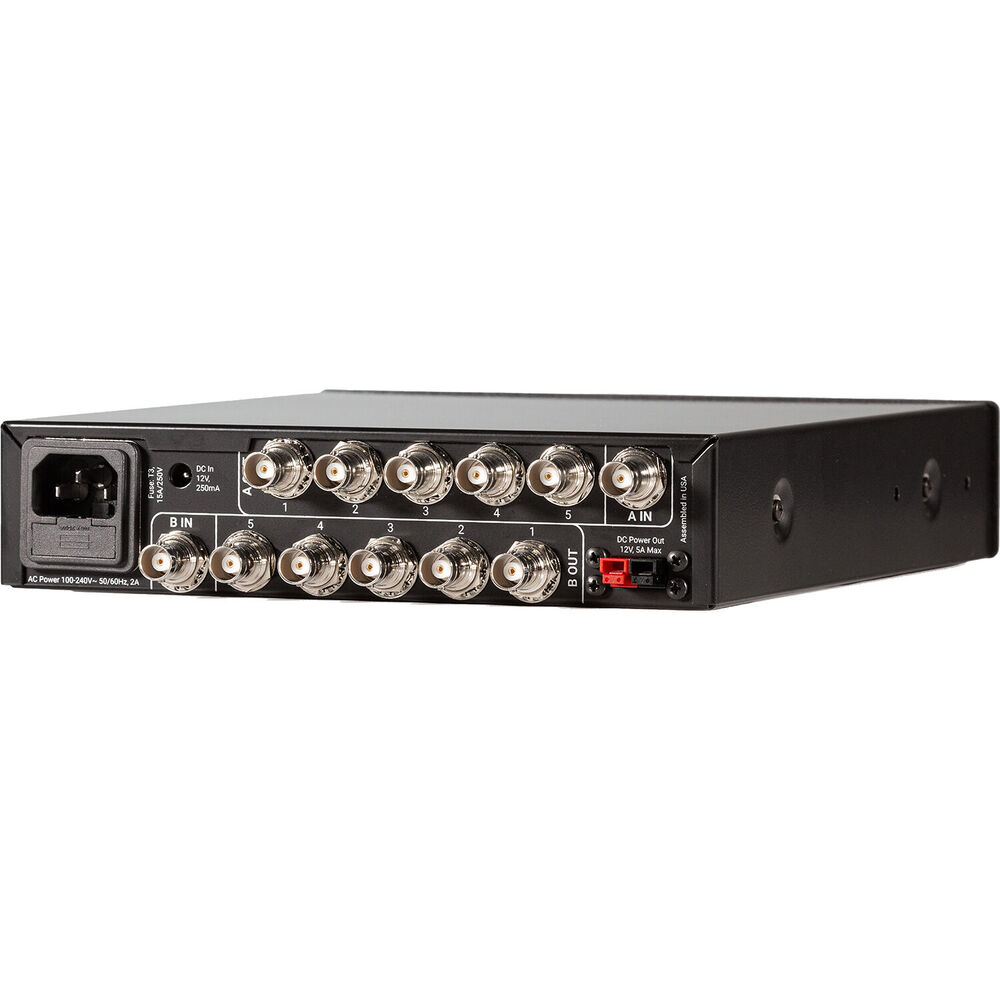

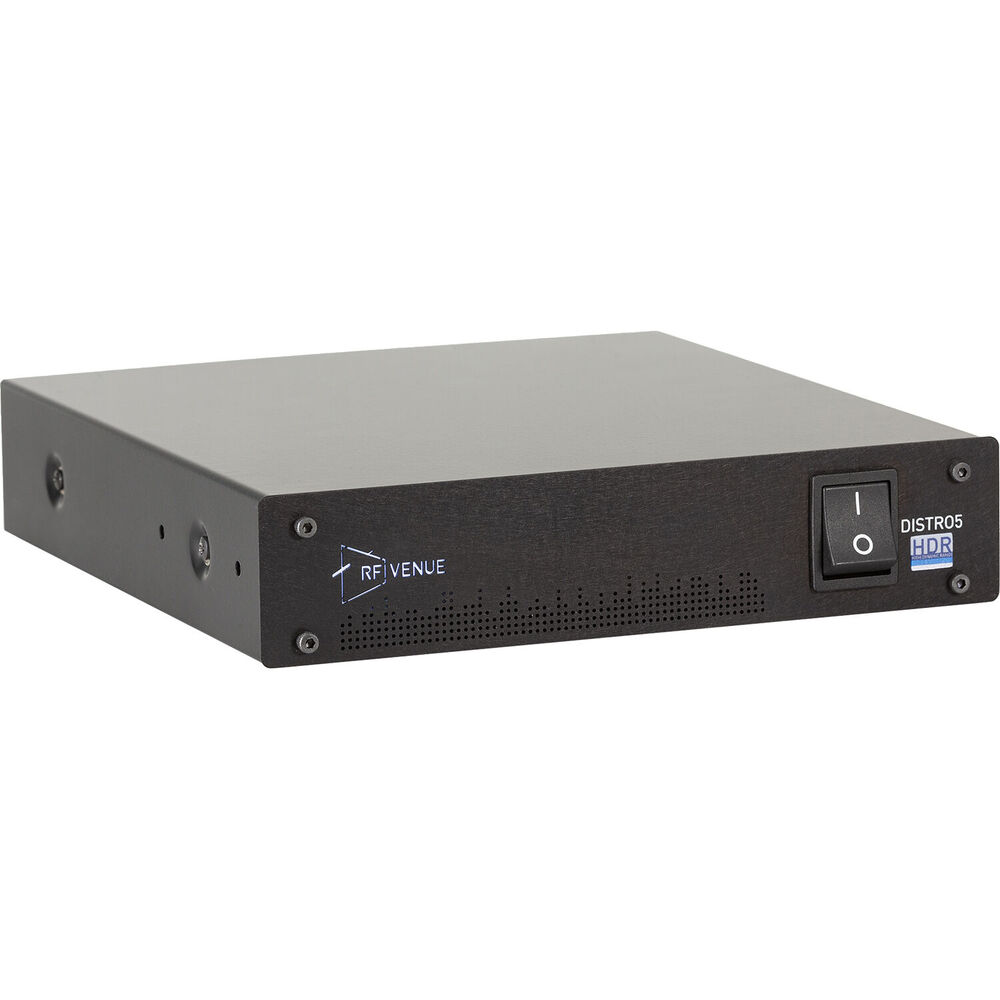

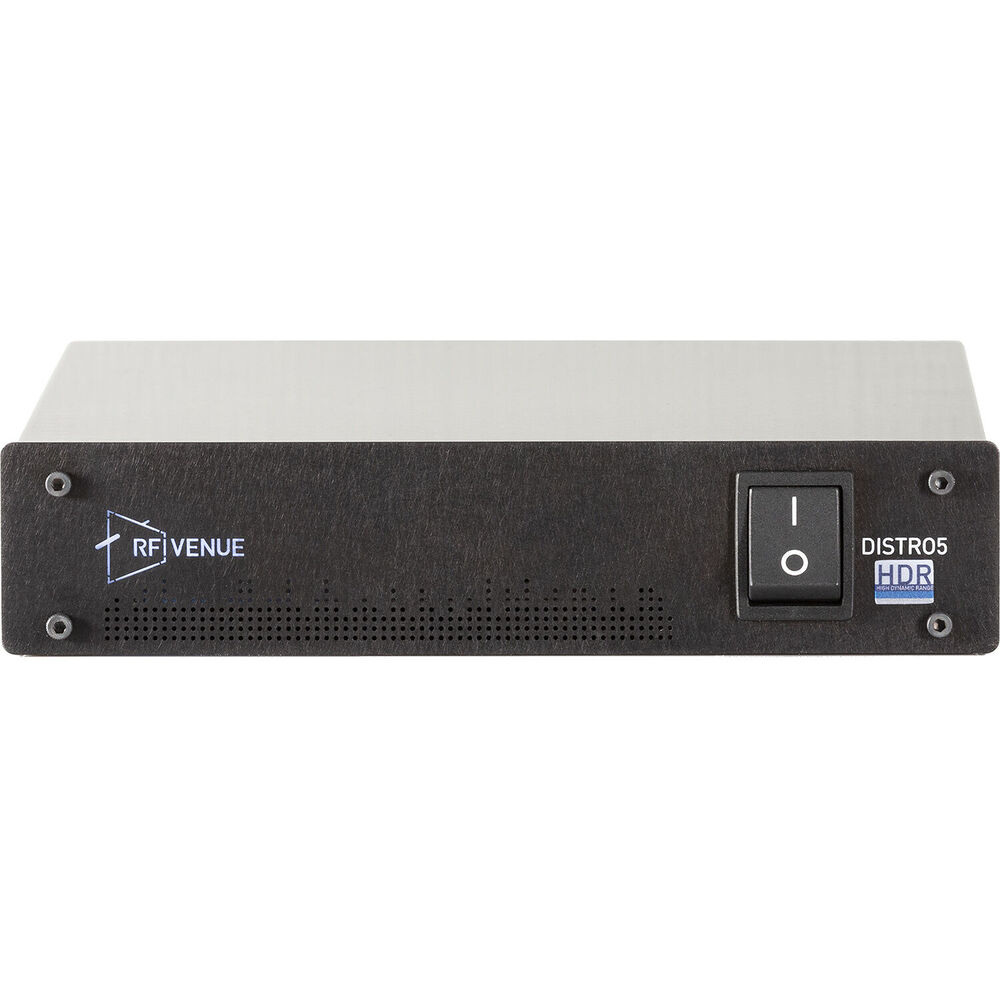

The DISTRO5 HDR 5-Channel UHF Antenna Distribution System from RF Venue is a high-dynamic-range active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers via coaxial cables (antennas, receivers, and cables available separately). In addition, the unit features a DC power input, allowing you to power it from a DC battery input for location work, and a DC power output, allowing you to power up to 8 receivers or compatible 12 VDC devices using a DC Octopus cable (available separately).
The all-metal, half-rack splitter includes long and short rack ears along with mounting hardware. For larger setups, you can cascade an additional DISTRO5 HDR unit (available separately) for a single 1 RU rack space of RF distribution for up to 9 receivers.
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to five receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 8 receivers via Octopus cable (available separately)
- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTRO5 HDR unit and receivers
- Wide UHF bandwidth from 470 to 698 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- Compact half-rack size to install near receivers

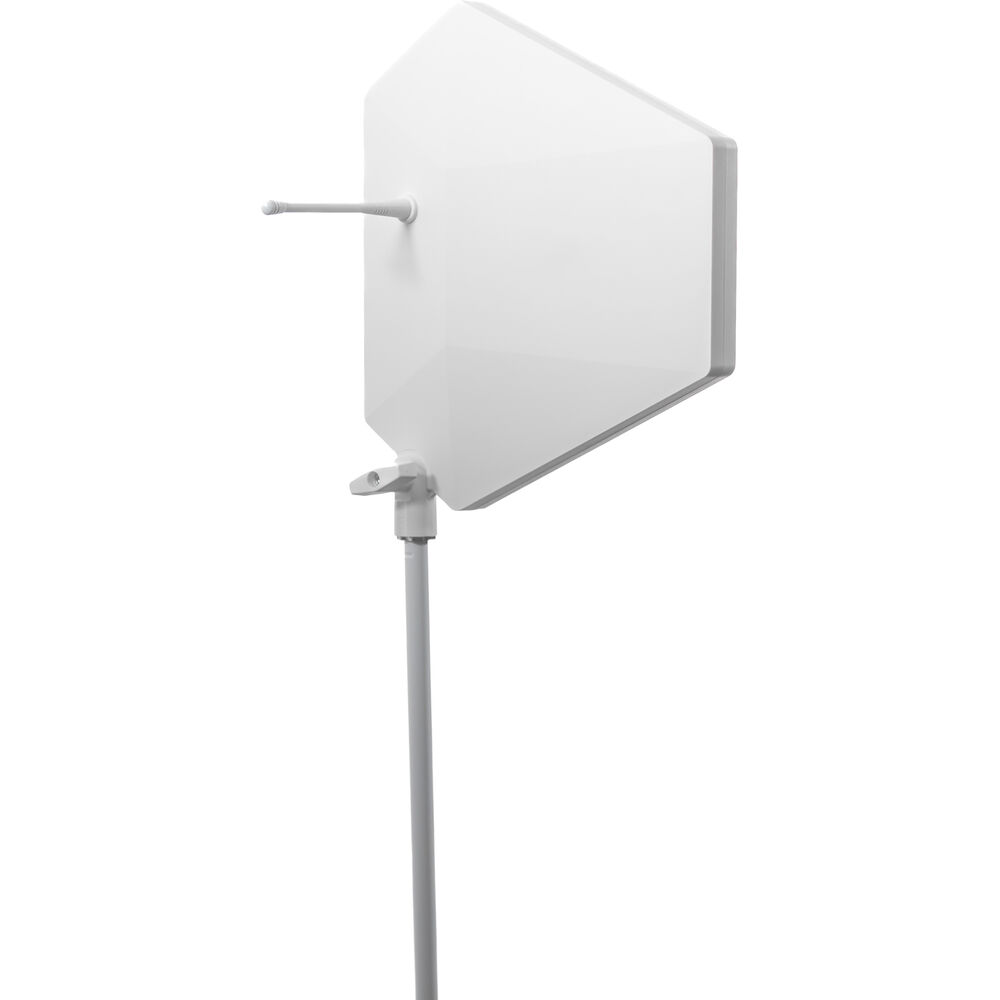

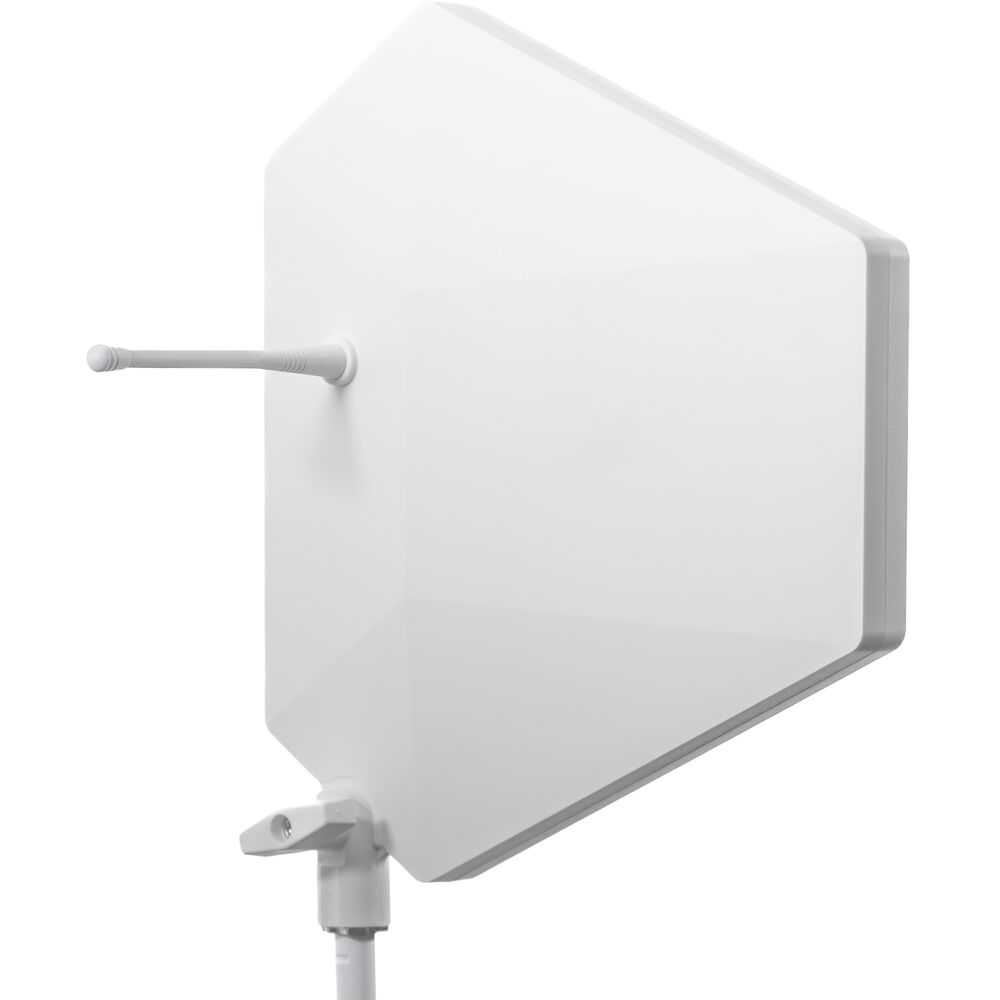

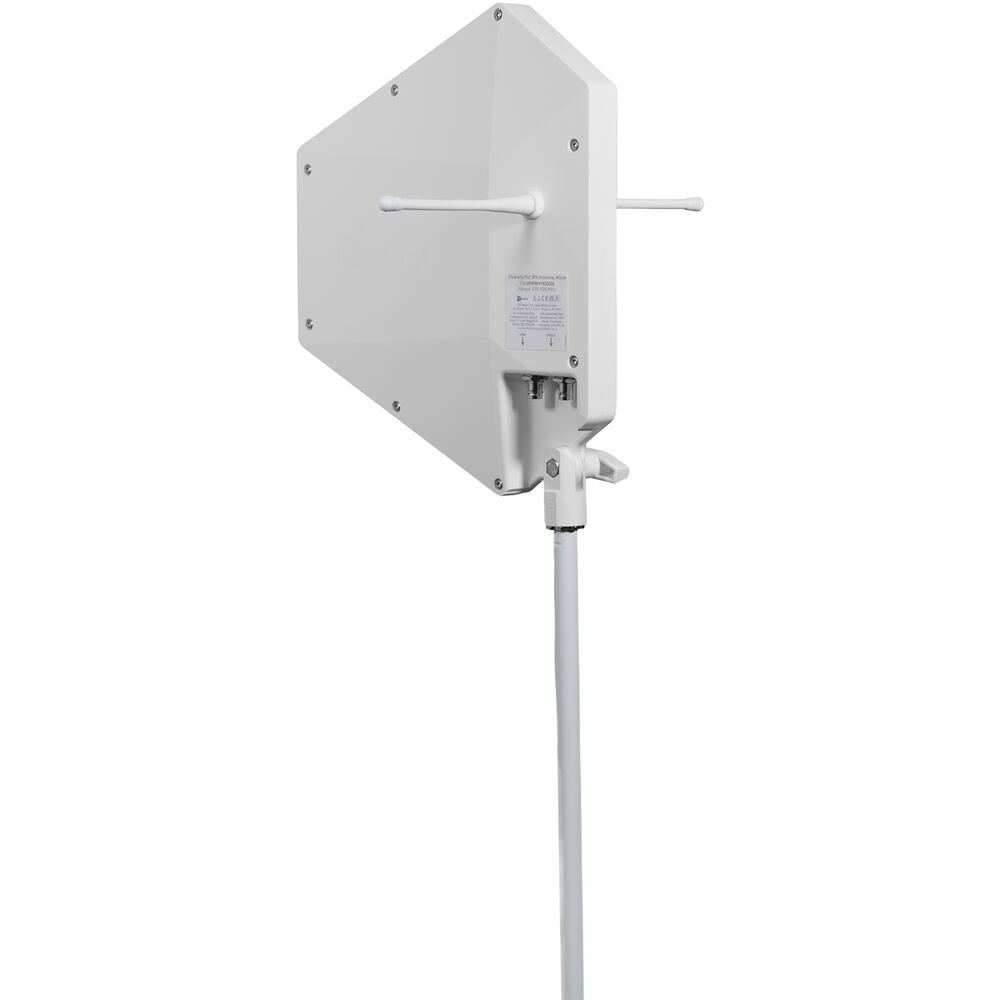

The RF Venue Diversity Fin IPX Antenna is the rugged, weather-resistant evolution of RF Venue's industry-standard flagship. Delivering the same trusted performance as the original Diversity Fin, the IPX version is engineered to withstand the demands of touring, rental inventories, and permanent outdoor installations while maintaining consistently reliable wireless microphone signal performance.
Designed to eliminate multi-path interference and signal dropouts, the Diversity Fin IPX combines a log-periodic dipole array (LPDA) and a dipole antenna within a single IP-rated, ruggedized housing. This cross-linear polarization design captures both vertical and horizontal signals, ensuring dependable RF performance regardless of how a performer holds a transmitter or how challenging the RF environment may be.
The DC Octopus 8-Connector Power Distribution Cable from RF Venue includes the Anderson PowerPole connector and is compatible with the DISTRO9 HDR.
This white, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.
- RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
- Half-Rack Connecting Plate and Hardware
- Set of Rack Ears (Long and Short)
- IEC Power Cord
- Limited 2-Year Manufacturer Warranty
- RF Venue Diversity Fin IPX Antenna (White, 470 to 928 MHz)
- 2 x Dipole Antenna
- 2 x Spare Dipole Antenna
- Threaded EU Microphone Stand Adapter
- Limited 2-Year Manufacturer Warranty
- RF Venue DC Octopus 8-Connector Power Distribution Cable
- Limited 2-Year Manufacturer Warranty
- 2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
- Limited 2-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)
- Limited 2-Year Manufacturer Warranty
No additional resources available
RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Output |
5A, 12 VDC
|
| Material of Construction |
Metal
|
| Package Weight |
7 lb
|
| Box Dimensions (LxWxH) |
19.8 x 14.3 x 9"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
