Description

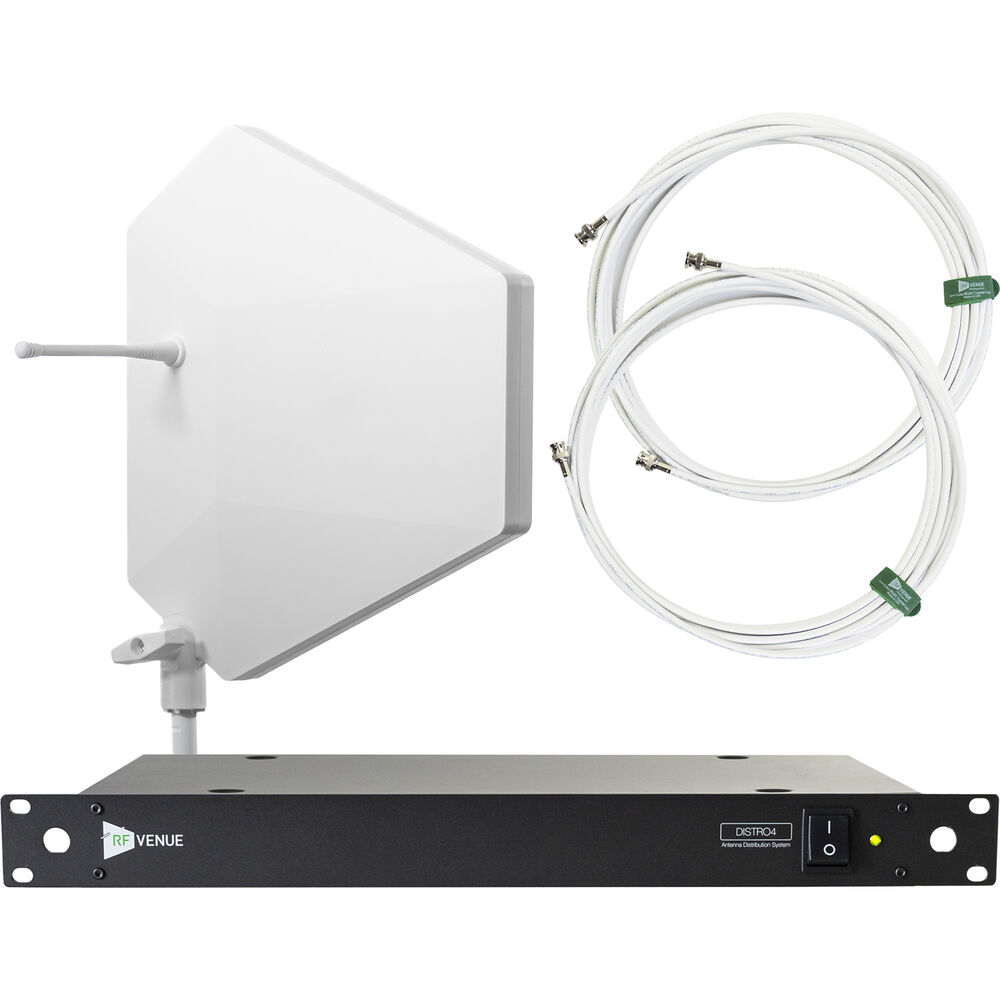

Improve the reception and reduce dropouts in your wireless audio system with the Diversity Fin IPX Antenna and DISTRO4 4-Channel UHF Distribution System Bundle from RF Venue. This turnkey package conveniently bundles the white, all-weather Diversity Fin IPX antenna with a rackmount 4-channel splitter capable of splitting the RF signals from the antenna's diversity connections, amplifying them, and sending them to multiple receivers. In addition to the comprehensive set of cables included with the DISTRO4, a pair of 25' coaxial BNC connecting cables are also provided.

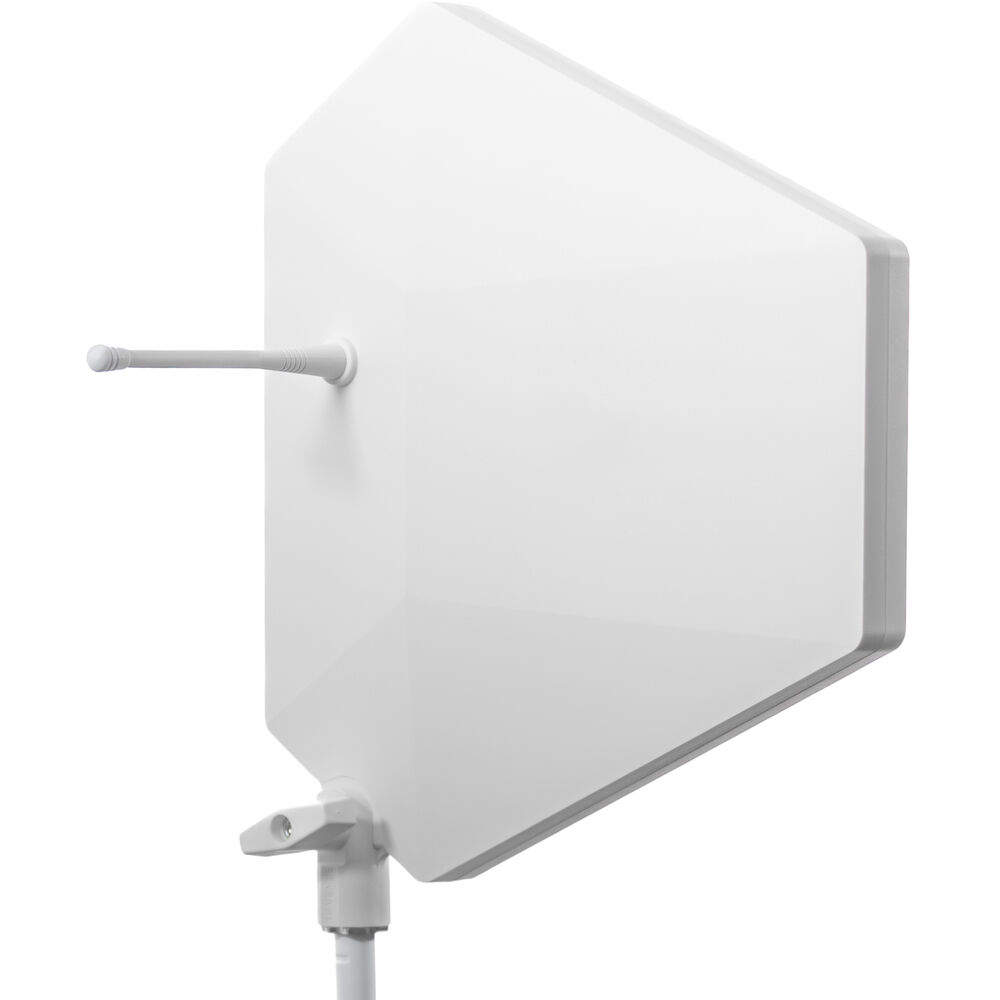

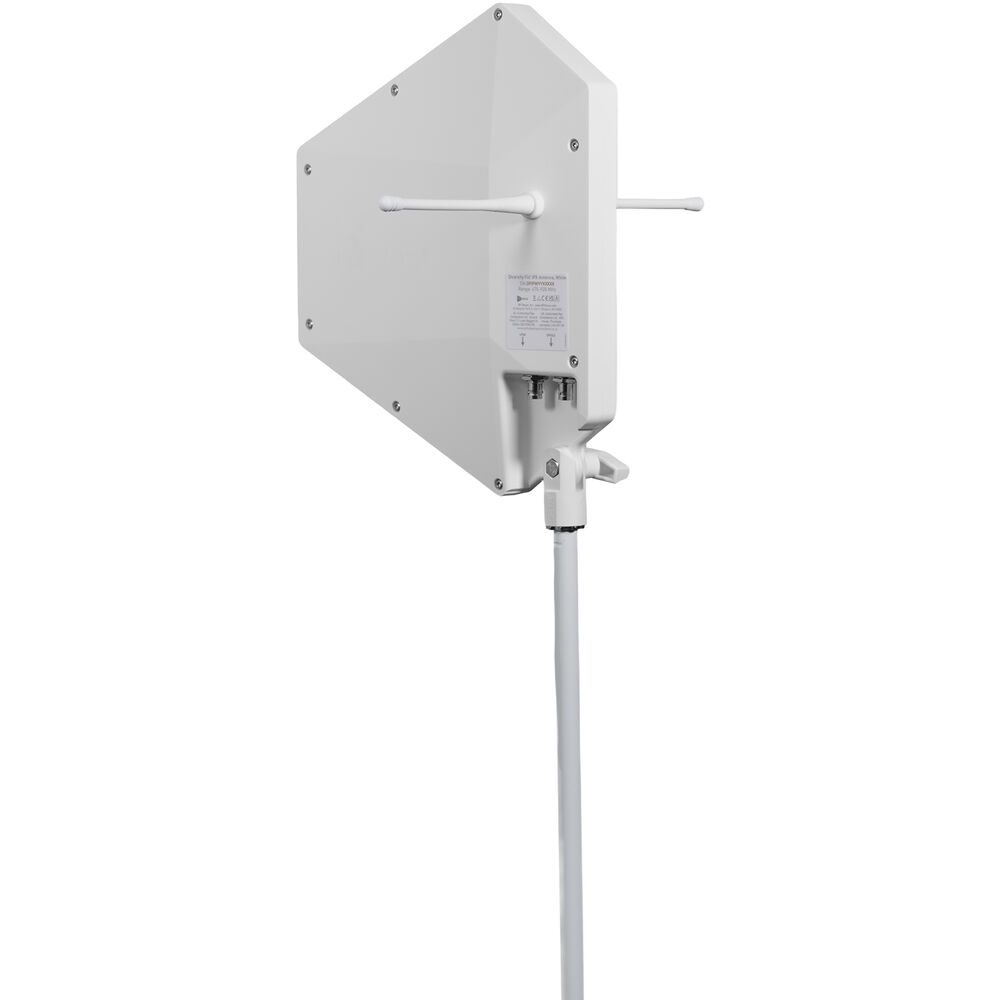

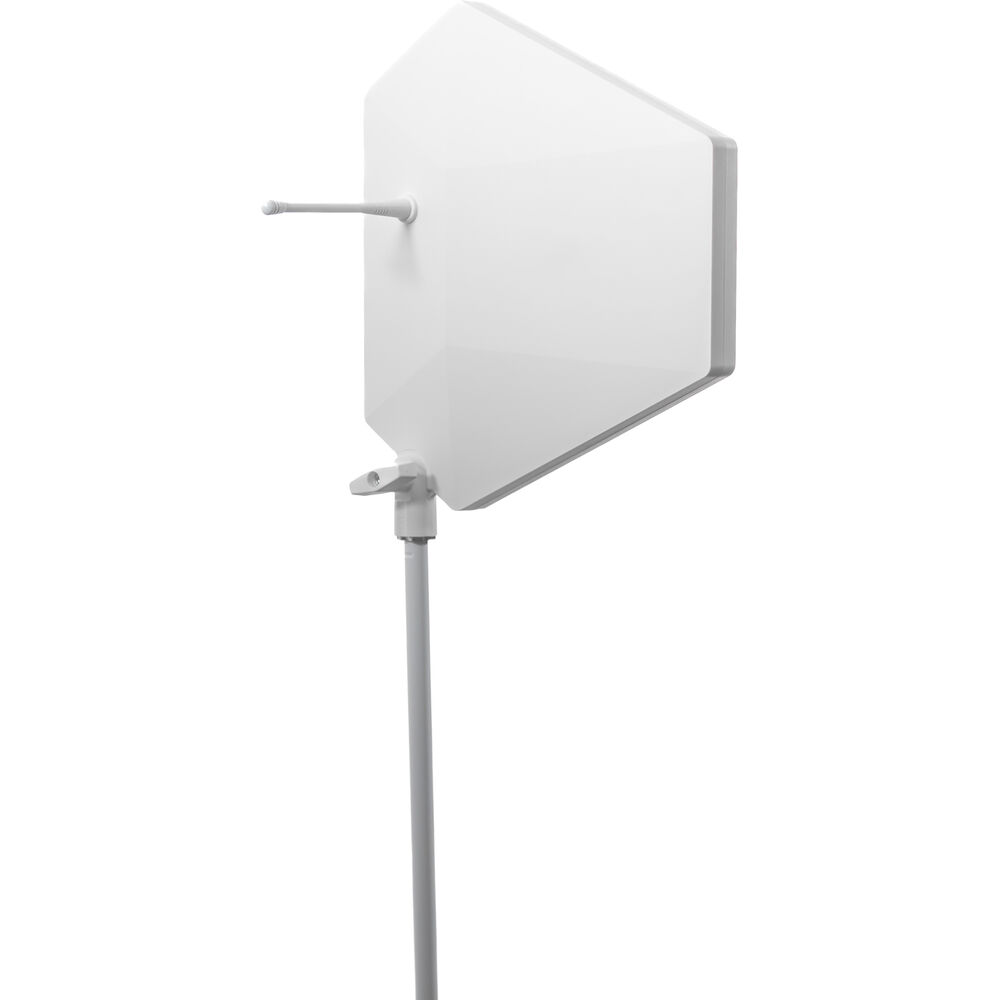

The RF Venue Diversity Fin IPX Antenna is the rugged, weather-resistant evolution of RF Venue's industry-standard flagship. Delivering the same trusted performance as the original Diversity Fin, the IPX version is engineered to withstand the demands of touring, rental inventories, and permanent outdoor installations while maintaining consistently reliable wireless microphone signal performance.
Designed to eliminate multi-path interference and signal dropouts, the Diversity Fin IPX combines a log-periodic dipole array (LPDA) and a dipole antenna within a single IP-rated, ruggedized housing. This cross-linear polarization design captures both vertical and horizontal signals, ensuring dependable RF performance regardless of how a performer holds a transmitter or how challenging the RF environment may be.

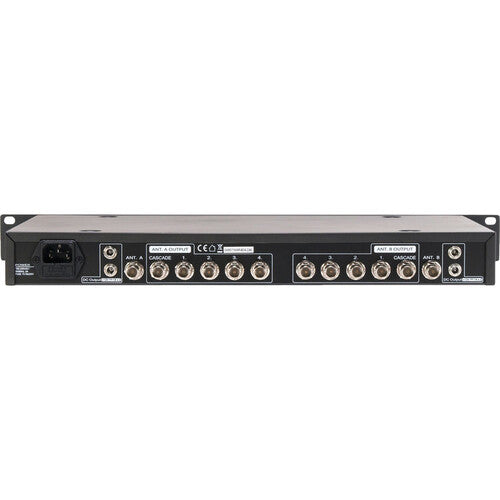

The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately). The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit's cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 4 receivers
- Internal switch applies DC power over coaxial cable to antenna connections
- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTO4 units and receivers
- Wide UHF bandwidth from 470 to 952 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- 1 RU full-rack width to install near receivers
- 2000mA internal power supply (no wall wart)
This white, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
- RF Venue Diversity Fin IPX Antenna (White, 470 to 928 MHz)
- 2 x Dipole Antenna
- 2 x Spare Dipole Antenna
- Threaded EU Microphone Stand Adapter
- Limited 2-Year Manufacturer Warranty
- RF Venue DISTRO4 4-Channel UHF Antenna Distribution System (470 to 952 MHz)
- 10 x Coaxial RF Cables
- 4 x DC Power Jumpers
- AC Power Cord
- Limited 2-Year Manufacturer Warranty
- 2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
- Limited 2-Year Manufacturer Warranty
No additional resources available
RF Venue Diversity Fin IPX Antenna (White, 470 to 928 MHz)
| Array Type |
Log Periodic Dipole Array
|
| Polarization |
Horizontal, Vertical
|
| Operating Frequency |
470 to 928 MHz
|
| Input/Output |
1x Coaxial BNC Female
|
| Compatibility |
Non-Dedicated
|
| Environmental Resistance |
Weather-Resistant (IP44)
|
| Antenna Mounting |
1/4"-20
|
| Package Weight |
4.68 lb
|
| Box Dimensions (LxWxH) |
17.8 x 15.5 x 3.1"
|
