Description
RF Venue D-ARC Overview

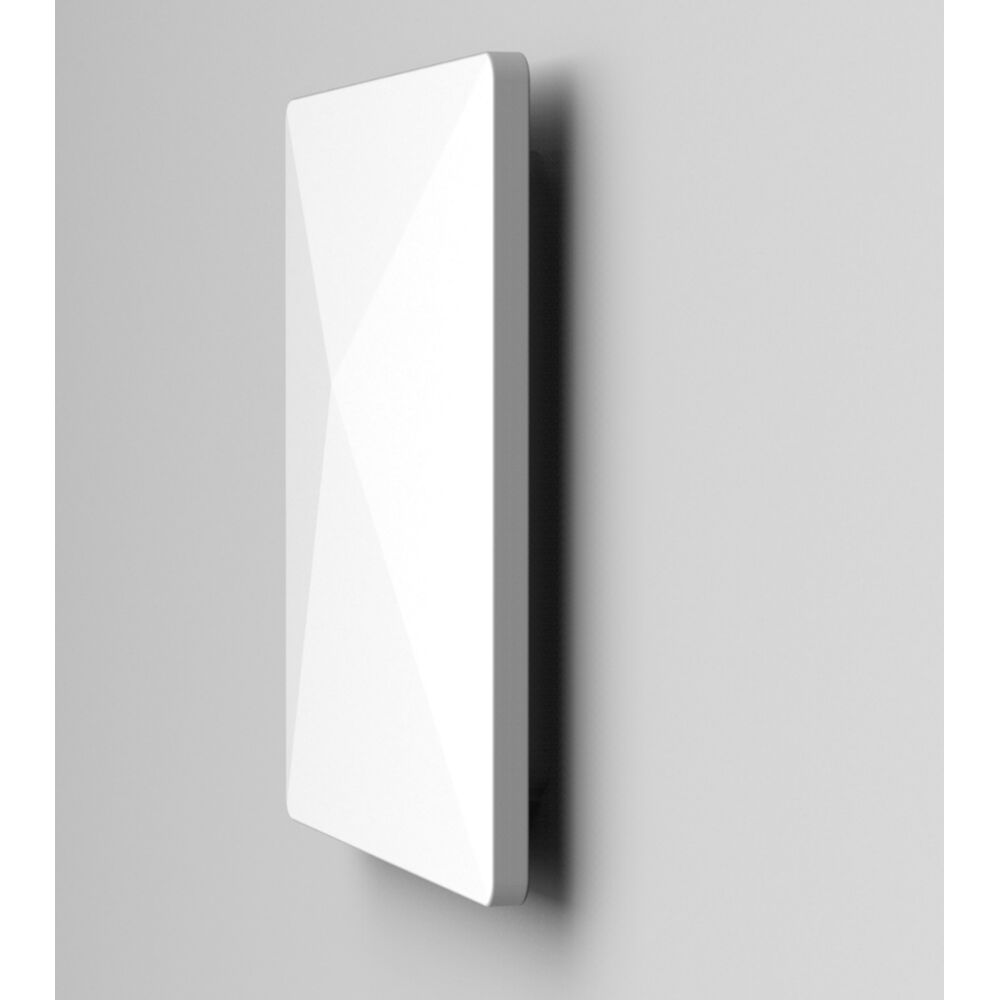

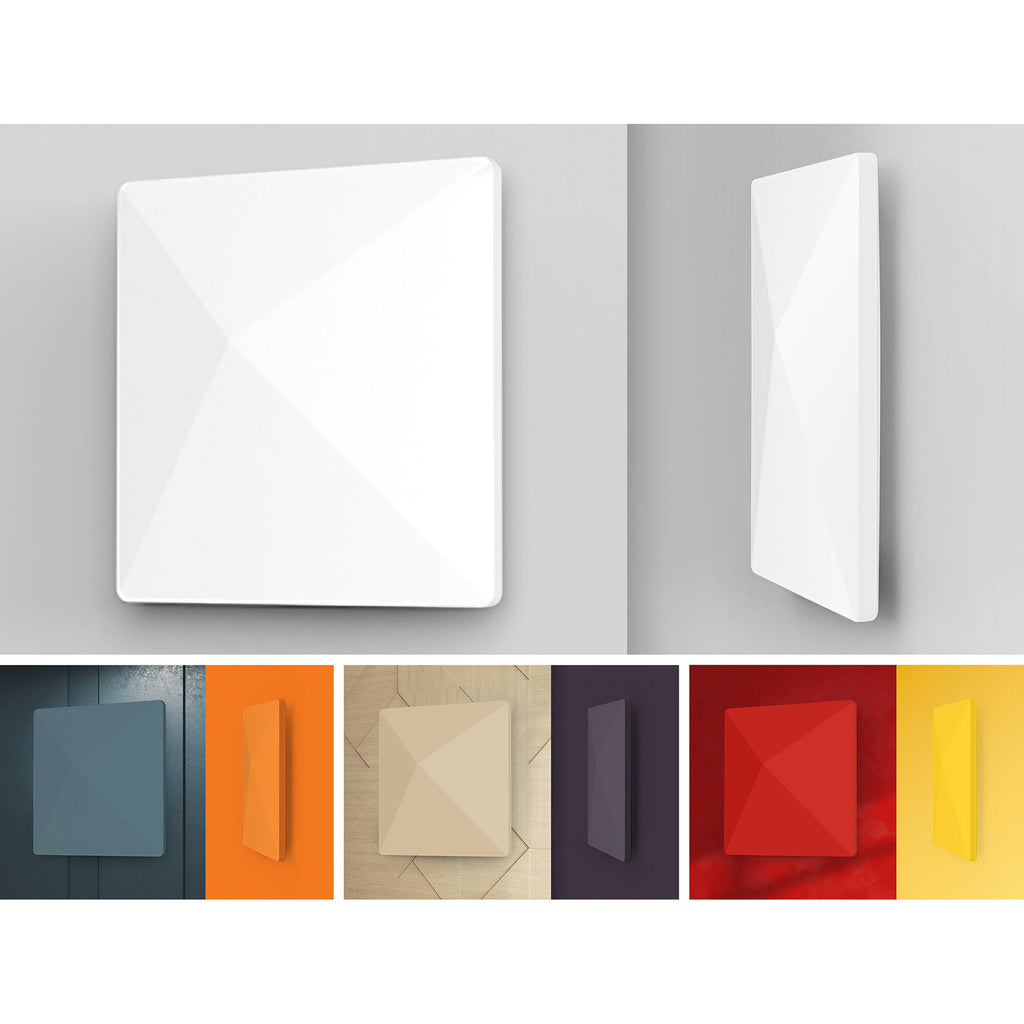

Get better reception from your UHF wireless microphone system with the white RF Venue Diversity Architectural Antenna. This high-performance diversity flood antenna features a slim enclosure designed to be discreetly mounted on a wall or ceiling in your classroom, meeting space, training center, or house of worship. Based on the highly acclaimed Diversity Fin Antenna, the Architectural Antenna's unique shape helps eliminate the most common signal dropouts caused by changes in the angle and orientation of the RF signal.
The back plate comes with pre-drilled holes that provide multiple mounting options; you then simply attach the front plate using the included mounting screws. Rear-mounted BNC female connectors allow you to connect the antenna to your in-wall or in-ceiling cable run feeding your wireless receiver. The system uses a dual-feed antenna design with both A and B diversity connections provided, eliminating the need for two separate antennas and giving you improved wireless performance with less dropouts in a sleek, low-profile enclosure that complements any decor.
- Improves wireless UHF reception and reduces dropouts for clearer audio
- Wide UHF bandwidth (470 to 616 MHz)
- Two antennas in one space-saving package
- Blends into any background
- Easy, cost-effective installation
- Ceiling and wall mounting kits included
In the Box
- RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (White, 470 to 616 MHz)
- Ceiling Hardware Mounting Kit
- Wall Hardware Mounting Kit
RF Venue D-ARC Specs
| Frequency Band | 470 to 616 MHz |
| Bandwidth | 146 MHz |
| Impedance | 50 Ohms |
| Average Return Loss | -6.4 dB |
| Pattern Type | Diversity Flood |
| Gain | 3 dBd |
| Polarization | Linear |
| Connectors | BNC Female |
| Operating Temperature | 14 to 104° F / -10 to 40° C |
| Dimensions | 11 x 11 x 2" / 280 x 280 x 50 mm |
| Weight | 2 lb / 0.9 kg |
| Package Weight | 2.685 lb |
| Box Dimensions (LxWxH) | 12.4 x 12.2 x 3.5" |
