Description
RF Venue D-ARCD9 Overview
- 1Description
- 2Diversity Architectural Antenna for Discreet Wall or Ceiling Mounting
- 3DISTRO9 HDR Multi-Zone Antenna Distributor
- 4Low-Loss Coaxial Cables
- 5DC Power Distribution Cables
This Diversity Architectural Antenna & DISTRO9 HDR 9-Channel UHF Distribution System Pack from RF Venue offers a turnkey solution to achieve professional-quality RF signal distribution for up to nine wireless microphones.

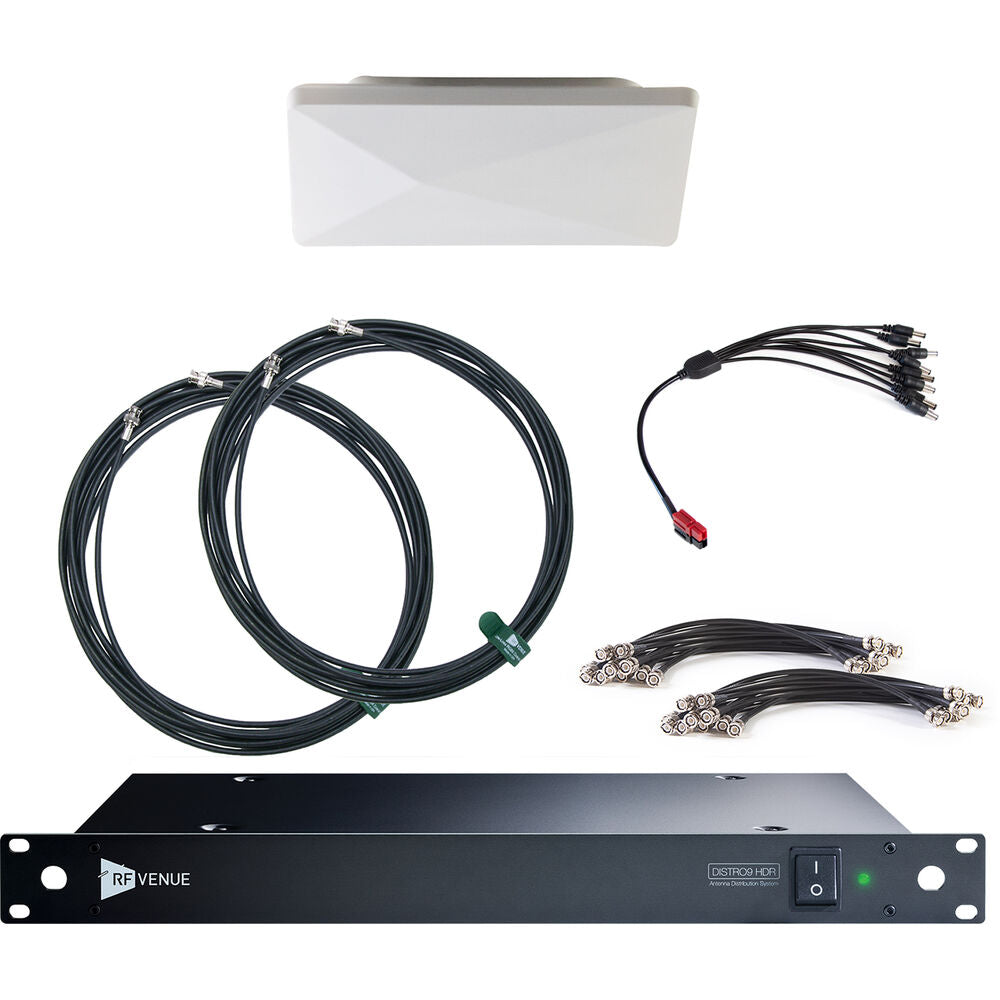

The bundle includes a white Diversity Architectural Antenna with kits for both ceiling and wall mounting included, a high-performance DISTRO9 HDR 9-channel multi-zone antenna distributor, a set of premium, low-loss double-shielded coaxial cables, and a DC Power Cable kit.
The high-performance diversity flood antenna features a slim enclosure designed to be discreetly mounted on a wall or ceiling in your classroom, meeting space, training center, or house of worship. The DISTRO9 HDR is designed and assembled in the USA and ETL listed in the USA and Canada and will work with a wide variety of UHF wireless microphone systems in the 470 to 616 MHz range.
Diversity Architectural Antenna for Discreet Wall or Ceiling Mounting
- The white Architectural Antenna's innovative design provides two antennas in one space-saving package that blends into the background.
- Based on the highly acclaimed Diversity Fin Antenna, the Architectural Antenna's unique shape helps eliminate the most common signal dropouts caused by changes in the angle and orientation of the RF signal.
- Ceiling and wall mounting kits are included.
- Installation is easy. The back plate comes with pre-drilled holes that provide multiple mounting options; you then simply attach the front plate using the included mounting screws.
- Rear-mounted BNC female connectors allow you to connect the antenna to your in-wall or in-ceiling cable run feeding your wireless receiver.
- The system uses a dual-feed antenna design with both A and B diversity connections provided, eliminating the need for two separate antennas and giving you improved wireless performance with less dropouts in a sleek, low-profile enclosure that complements any décor.
DISTRO9 HDR Multi-Zone Antenna Distributor
- The DISTRO9 HDR offers a unique approach to high-quality RF signal distribution for wireless microphones. A proprietary design eliminates traditional internal splitters used on most antenna distribution systems and replaces them with advanced �divide-by-three� circuitry, providing up to 9 low-noise channels of diversity wireless. DISTRO9 HDR employs low-noise figure amplifiers and superior gain structure to provide high dynamic range over the spectrum.
- Any DISTRO9 HDR RF output can be cascaded to a second DISTRO9 HDR (available separately), eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in just 2 RU of rack space. Multi-zone installations are easy with the DISTRO9 HDR's two zone antenna inputs, providing coverage for large areas or multiple rooms, each with DC power available for in-line amplifiers or active antennas.
- Featuring a robust internal power supply, the DISTRO9 HDR can provide clean DC power to 9 wireless microphone receivers with the included DC Power Cable kit, and can also be powered directly from a DC battery source for location sound-cart applications.
- The DISTRO9 HDR is ETL listed to meet bid specification requirements on municipal, government, and other high-profile projects.
- An internal I/O section provides a range of future module add-on capabilities ranging from remote web-based spectrum monitoring to bandpass filtering, and more.
- As RF spectrum congestion grows and operating bands evolve worldwide, the DISTRO9 HDR is highly configurable to meet the current and future needs of any professional wireless microphone system.
Low-Loss Coaxial Cables
Includes high-quality, made-in-the-USA, RF-Venue-tested RG8X low-loss coaxial cables.
- 2 x 25' RG8X coaxial cables
- 10 x 2' RG8X coaxial cables
- 10 x 1.5' RG8X coaxial cables
DC Power Distribution Cables
- The DC power cable kit distributes power to 9 wireless receivers.
In the Box
- RF Venue Diversity Architectural Antenna & DISTRO9 HDR 9-Channel UHF Distribution System Pack (White, 470 to 616 MHz)
- RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (White, 470 to 616 MHz)
- RF Venue Distro9 HDR Multi-Zone Antenna Distribution System
- 2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')
- RG8X1.5-10 (10-Pack Interconnects,1.5')
- RG8X2-10 (10-Pack Interconnects, 2')
- DC-OCTOPUS Power Distribution Kit
