Description
RF Venue D-ARC Overview

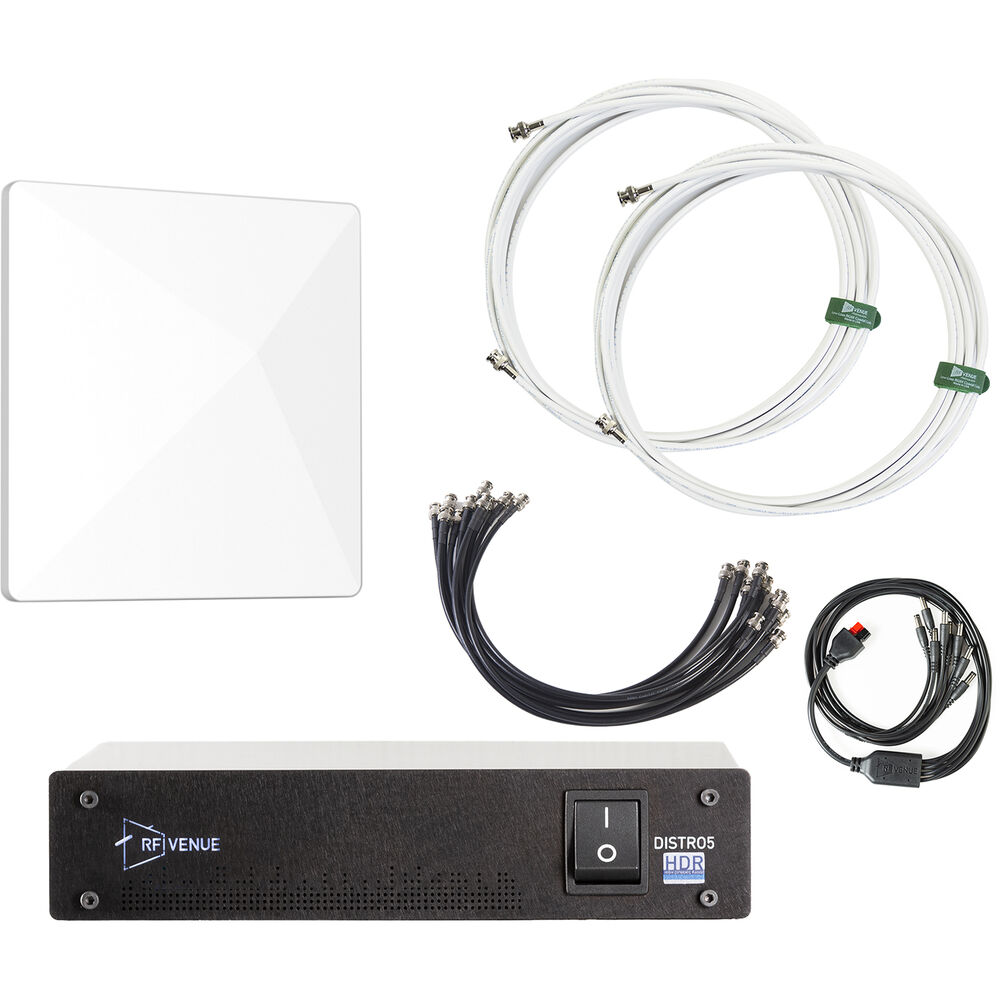

Improve the reception and reduce dropouts in your classroom, event space, or conference room wireless microphone system with the white Diversity Architectural Antenna and DISTRO5 HDR 5-Channel UHF Distribution System Bundle from RF Venue. This turnkey package conveniently bundles a stylish white wall- or ceiling-mountable diversity flood antenna along with an active, half-rack, 5-channel splitter capable of splitting the RF signals from the antenna's A and B diversity connections, amplifying them, and sending them to multiple receivers. The package also includes a pair of white 25' coaxial low-loss antenna cables as well as a 10-pack of 1.5' low-loss coaxial cables to distribute the RF signal. The included DC Octopus cable distributes 12 VDC power to the receivers, eliminating wall warts and the need for dedicated rack power distribution.
Get better reception from your UHF wireless microphone system with the white RF Venue Diversity Architectural Antenna. This high-performance diversity flood antenna features a slim enclosure designed to be discreetly mounted on a wall or ceiling in your classroom, meeting space, training center, or house of worship. Based on the highly acclaimed Diversity Fin Antenna, the Architectural Antenna's unique shape helps eliminate the most common signal dropouts caused by changes in the angle and orientation of the RF signal.
The back plate comes with pre-drilled holes that provide multiple mounting options; you then simply attach the front plate using the included mounting screws. Rear-mounted BNC female connectors allow you to connect the antenna to your in-wall or in-ceiling cable run feeding your wireless receiver. The system uses a dual-feed antenna design with both A and B diversity connections provided, eliminating the need for two separate antennas and giving you improved wireless performance with less dropouts in a sleek, low-profile enclosure that complements any decor.
- Improves wireless UHF reception and reduces dropouts for clearer audio
- Wide UHF bandwidth (470 to 616 MHz)
- Two antennas in one space-saving package
- Blends into any background
- Easy, cost-effective installation
- Ceiling and wall mounting kits included
The DISTRO5 HDR 5-Channel UHF Antenna Distribution System from RF Venue is a high-dynamic-range active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers via coaxial cables (antennas, receivers, and cables available separately). In addition, the unit features a DC power input, allowing you to power it from a DC battery input for location work, and a DC power output, allowing you to power up to 8 receivers or compatible 12 VDC devices using a DC Octopus cable (available separately).
The all-metal, half-rack splitter includes long and short rack ears along with mounting hardware. For larger setups, you can cascade an additional DISTRO5 HDR unit (available separately) for a single 1 RU rack space of RF distribution for up to 9 receivers.
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to five receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 8 receivers via Octopus cable (available separately)
- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTRO5 HDR unit and receivers
- Wide UHF bandwidth from 470 to 698 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- Compact half-rack size to install near receivers
The DC Octopus 8-Connector Power Distribution Cable from RF Venue includes the Anderson PowerPole connector and is compatible with the DISTRO9 HDR.
This white, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.
Items Included
- RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (White, 470 to 616 MHz)
- Ceiling Hardware Mounting Kit
- Wall Hardware Mounting Kit
- Limited 1-Year Manufacturer Warranty
- RF Venue DISTRO5 HDR 5-Channel UHF Antenna Distribution System (470 to 698 MHz)
- Half-Rack Connecting Plate and Hardware
- Set of Rack Ears (Long and Short)
- IEC Power Cord
- Limited 1-Year Manufacturer Warranty
- RF Venue DC Octopus 8-Connector Power Distribution Cable
- Limited 1-Year Manufacturer Warranty
- 2 x RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
RF Venue D-ARC Specs
| Antenna Type |
Panel
|
| Input/Output |
2x Coaxial BNC Female
|
| Compatibility |
Not Specified by Manufacturer
|
| Operating Frequency |
470 to 698 MHz
|
| Gain |
3 dBi
|
| Number of Antennas |
2
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Color |
White
|
| Dimensions |
H: 2.0 x W: 11.0 x D: 11.0" / H: 50.00 x W: 280.00 x D: 280.00 mm
|
| Weight |
2 lb / 0.9 kg
|
| Package Weight |
2.685 lb
|
| Box Dimensions (LxWxH) |
12.4 x 12.2 x 3.5"
|
RF Venue D-ARC Specs
| Mobile App Compatible |
No
|
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Output |
5A, 12 VDC
|
| Material of Construction |
Metal
|
| Package Weight |
7 lb
|
| Box Dimensions (LxWxH) |
19.8 x 14.3 x 9"
|
RF Venue D-ARC Specs
| Compatibility |
Not Specified by Manufacturer
|
| Connector 1 |
1x BNC Male
|
| Connector 2 |
1x BNC Male
|
| Color |
White
|
| Cable Length |
25' / 7.6 m
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
13.9 x 13.6 x 2.5"
|
RF Venue D-ARC Specs
| Color |
Black
|
| Cable Length |
1.5' / 0.5 m
|
| Package Weight |
1.1 lb
|
| Box Dimensions (LxWxH) |
10.2 x 8.2 x 1.8"
|
