Description
RF Venue COMB8CP Overview
- 1Description
- 2RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
- 3RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz)
- 4RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')

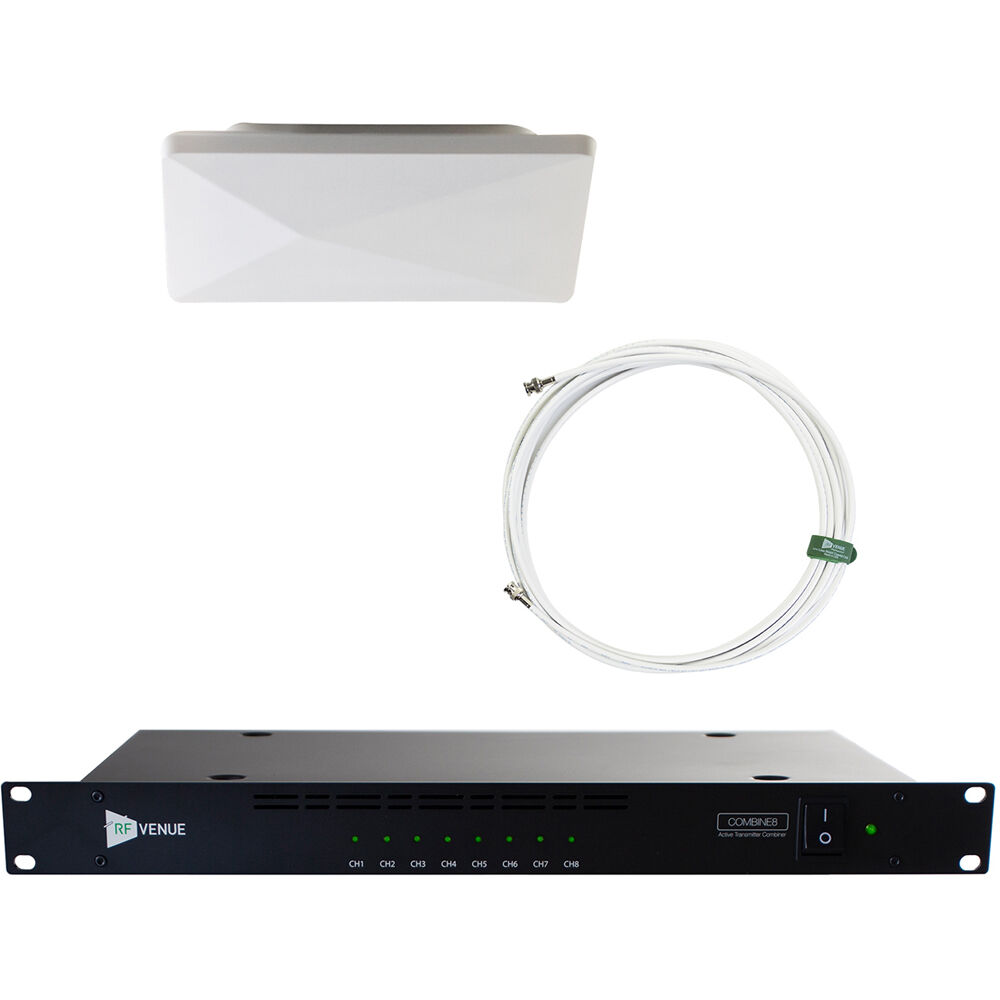

Improve your IEM reception with the CP Architectural Antenna with COMBINE8 8-Channel Combiner and Cable Bundle from RF Venue. Designed specifically for use with IEM systems, the white CP Architectural Antenna is a high-performance flood antenna with a slim and discreet enclosure that can be painted to match any decor. The 8-channel COMBINE8 is an antenna combiner that receives eight incoming IEM transmitter RF signals and combines them to a single, convenient front-panel antenna connection for wireless transmission, minimizing the intermodulation issues that can arise when using multiple antennas. A 25' white coaxial cable is also provided to connect the antenna to the combiner.
Get enhanced protection against dropouts and poor sound quality on IEM wireless bodypack receivers with the white RF Venue CP Architectural Antenna. Designed to be discreetly mounted on a wall or ceiling in your music venue, event space, or house of worship, the antenna features a slim enclosure that can be painted to match any interior�for a highly polished and professional look.
Building on the highly acclaimed CP Beam Antenna, the CP Architectural is a high-performance flood antenna that uses a unique circularly polarized design to provide excellent transmit-signal coverage for IEMs. The antenna installs in minutes using the included wall- and ceiling-mount rear plates that are pre-drilled with multiple mounting-hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Just connect the BNC male connector of your in-wall or in-ceiling, coaxial-cable run to the antenna's rear-mounted BNC female connector, and the CP Architectural is ready for use.
The RF Venue COMBINE8 enables you to actively combine signals from up to eight in-ear monitor (IEM) wireless transmitters into a single transmitting antenna. IEM transmitter combination for multi-channel systems greatly lowers the probability of intermodulation artifacts arising from multiple adjacent transmitters interfering with one another�thus improving audio quality.
The COMBINE8 can be used with any brand of IEM transmitter set to transmit at 50mW or less as well as any type of directional antenna. The rear panel houses eight BNC transmitter-input connectors and one BNC antenna output.
An external DC power supply is included to provide DC power for up to eight IEM transmitters, removing the need for wall warts and reducing clutter.
For your convenience, RF Venue offers the 8-Channel In-Ear Monitor Upgrade Pack, which bundles the COMBINE8 with a CP Beam helical antenna, and a 25" low-loss RG8X coaxial cable.
This white, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
In the Box
- RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
- Ceiling Hardware Mounting Kit
- Wall Hardware Mounting Kit
- Limited 1-Year Manufacturer Warranty
- RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz)
- 8 x BNC Jumper Cables
- Auxiliary DC Power Supply for up to 8 Transmitters
- AC Power Cable
- Auxiliary AC Power Cable
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
- Limited 1-Year Manufacturer Warranty
- Description
- RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
- RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz)
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz) Specs
| Frequency Range |
400 to 800 MHz
|
| Bandwidth |
400 MHz
|
| Return Loss |
10 dB (Average)
|
| Impedance |
50 ohms
|
| Antenna |
Pattern Type: Flood
Polarization: RHCP Beam Width: 120° |
| Connector |
BNC Female
|
| Gain |
2.5 dBi (at 500 MHz)
|
| Operating Temperature |
22 to 72°F / -10 to 40°C
|
| Mounting |
1 x Ceiling Hardware
1 x Wall Hardware |
| Color |
White
|
| Dimensions |
11 x 11 x 2" / 280 x 280 x 50 mm
|
| Weight |
2 lb / 0.9 kg
|
| Package Weight |
2.69 lb
|
| Box Dimensions (LxWxH) |
12.5 x 12.3 x 2.8"
|
RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz) Specs
| Frequency Range |
407 to 608 MHz
|
| I/O |
8 x BNC RF Input Connectors
1 x BNC Antenna Output Connector |
| Gain |
Full System Gain: 0 dB (±2 dB)
|
| Maximum RF Input Power |
+18 dBm (60 mW)
|
| LED Indicator |
Input Signal Threshold: > +5 dBm
|
| Power Consumption |
36 W
|
| Power |
Input AC: 100-240 VAC, 50/60 Hz, 1.5 A (Maximum)
|
| Dimensions |
18.9 x 1.8 x 10.2" / 480 x 45 x 260 mm
|
| Weight |
8.1 lb / 3.7 kg
|
| Package Weight |
9.47 lb
|
| Box Dimensions (LxWxH) |
22.1 x 13 x 3.6"
|
RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25') Specs
| Compatibility |
Not Specified by Manufacturer
|
| Connector 1 |
1x BNC Male
|
| Connector 2 |
1x BNC Male
|
| Color |
White
|
| Cable Length |
25' / 7.6 m
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
13.9 x 13.6 x 2.5"
|
