Description
RF Venue COMBINE4 Overview
- 1Description
- 2RF Venue COMBINE4 - 4-Channel Antenna Combiner
- 3RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
- 4RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')

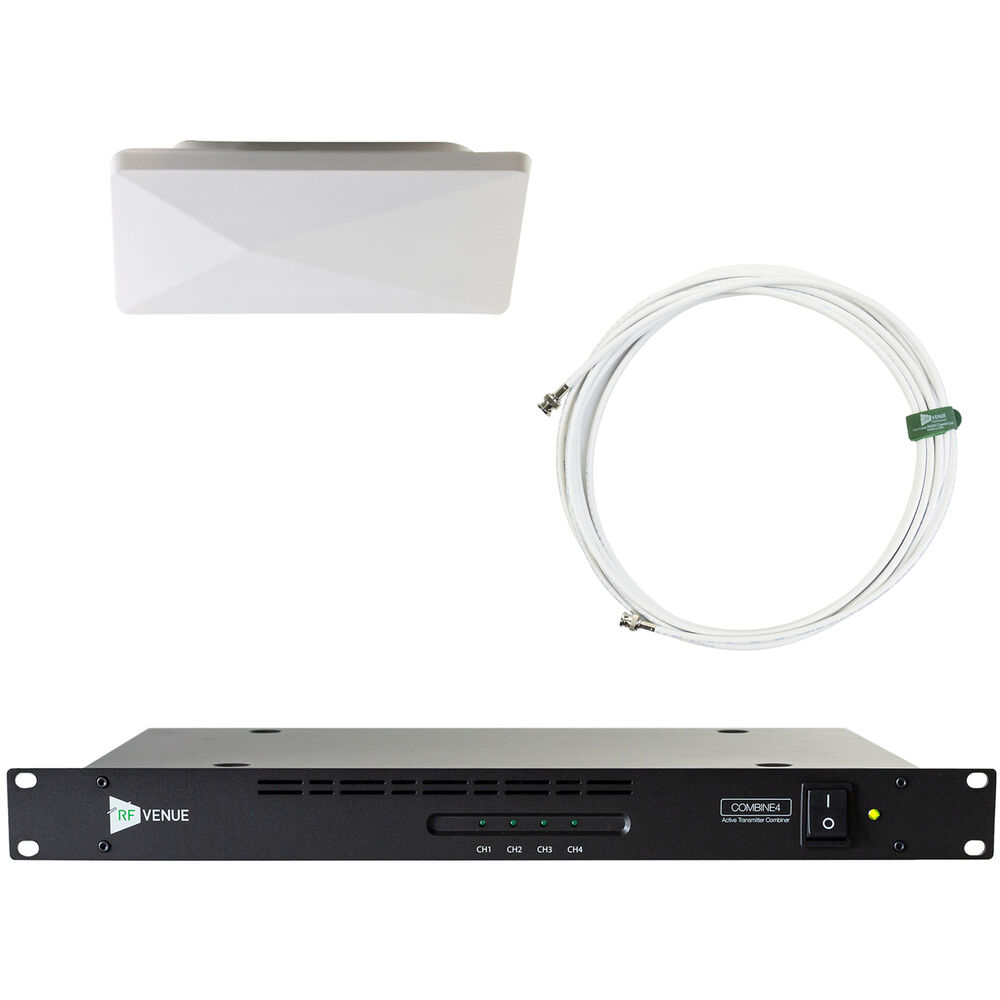

Improve your IEM reception with the CP Architectural Antenna with COMBINE4 4-Channel Combiner and Cable Bundle from RF Venue. Designed specifically for use with IEM systems, the CP Architectural Antenna is a high-performance flood antenna with a slim and discreet enclosure that can be painted to match any decor. The 4-channel COMBINE4 is an antenna combiner that receives four incoming IEM transmitter RF signals and combines them to a single, convenient front-panel antenna connection for wireless transmission, minimizing the intermodulation issues that can arise when using multiple antennas. A 25' white coaxial cable is also provided to connect the antenna to the combiner.
The COMBINE4 from RFvenue is an antenna combiner that was developed for cross-brand flexibility for IEM (In-Ear Monitor) systems. The four-channel Radio Frequency (RF) combiner receives four incoming IEM transmitter RF signals and combines them to a single convenient front-panel mounted output connection.
The unit features a high-quality internal power supply and includes DC and RF jumper cables required for four-channel IEM system operation.
Get enhanced protection against dropouts and poor sound quality on IEM wireless bodypack receivers with the white RF Venue CP Architectural Antenna. Designed to be discreetly mounted on a wall or ceiling in your music venue, event space, or house of worship, the antenna features a slim enclosure that can be painted to match any interior�for a highly polished and professional look.
Building on the highly acclaimed CP Beam Antenna, the CP Architectural is a high-performance flood antenna that uses a unique circularly polarized design to provide excellent transmit-signal coverage for IEMs. The antenna installs in minutes using the included wall- and ceiling-mount rear plates that are pre-drilled with multiple mounting-hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Just connect the BNC male connector of your in-wall or in-ceiling, coaxial-cable run to the antenna's rear-mounted BNC female connector, and the CP Architectural is ready for use.
This white, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.
In the Box
- RF Venue COMBINE4 - 4-Channel Antenna Combiner
- AC Power Cable
- 4 x Coaxial RF Cables
- 4 x DC Power Jumpers
- Limited 1-Year Manufacturer Warranty
- RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
- Ceiling Hardware Mounting Kit
- Wall Hardware Mounting Kit
- Limited 1-Year Manufacturer Warranty
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
- Limited 1-Year Manufacturer Warranty
- Description
- RF Venue COMBINE4 - 4-Channel Antenna Combiner
- RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz)
- RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25')
RF Venue COMBINE4 - 4-Channel Antenna Combiner Specs
| Package Weight |
8.2 lb
|
| Box Dimensions (LxWxH) |
22.1 x 12.9 x 4"
|
RF Venue CP Architectural Antenna for Wireless IEM Systems (White, 400 to 800 MHz) Specs
| Frequency Range |
400 to 800 MHz
|
| Bandwidth |
400 MHz
|
| Return Loss |
10 dB (Average)
|
| Impedance |
50 ohms
|
| Antenna |
Pattern Type: Flood
Polarization: RHCP Beam Width: 120° |
| Connector |
BNC Female
|
| Gain |
2.5 dBi (at 500 MHz)
|
| Operating Temperature |
22 to 72°F / -10 to 40°C
|
| Mounting |
1 x Ceiling Hardware
1 x Wall Hardware |
| Color |
White
|
| Dimensions |
11 x 11 x 2" / 280 x 280 x 50 mm
|
| Weight |
2 lb / 0.9 kg
|
| Package Weight |
2.69 lb
|
| Box Dimensions (LxWxH) |
12.5 x 12.3 x 2.8"
|
RF Venue RG8X Low-Loss Coaxial Antenna Cable (White, 25') Specs
| Compatibility |
Not Specified by Manufacturer
|
| Connector 1 |
1 x BNC Male
|
| Connector 2 |
1 x BNC Male
|
| Color |
White
|
| Cable Length |
25' / 7.6 m
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
13.9 x 13.6 x 2.5"
|
