Description
RF Venue COMBINE8 Overview
The RF Venue COMBINE8 enables you to actively combine signals from up to eight in-ear monitor (IEM) wireless transmitters into a single transmitting antenna. IEM transmitter combination for multi-channel systems greatly lowers the probability of intermodulation artifacts arising from multiple adjacent transmitters interfering with one another�thus improving audio quality.

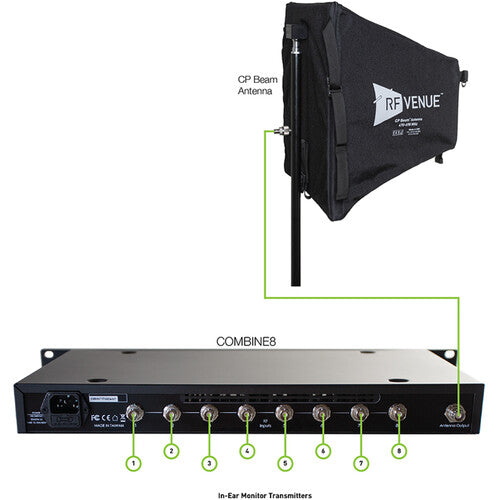

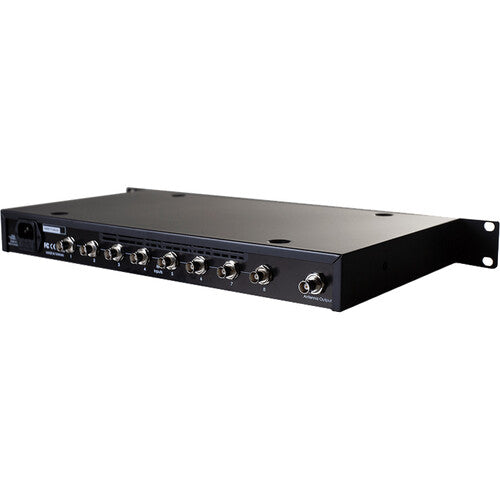

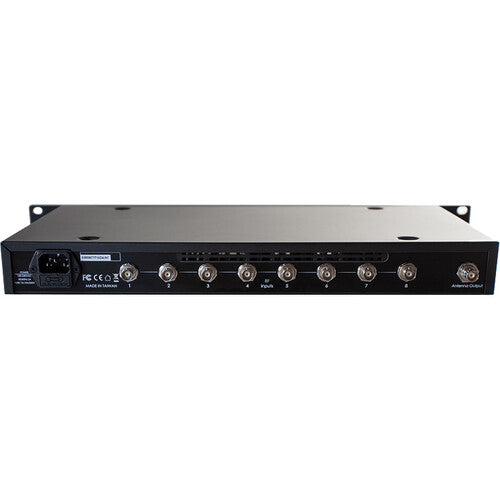

The COMBINE8 can be used with any brand of IEM transmitter set to transmit at 50mW or less as well as any type of directional antenna. The rear panel houses eight BNC transmitter-input connectors and one BNC antenna output.
An external DC power supply is included to provide DC power for up to eight IEM transmitters, removing the need for wall warts and reducing clutter.
For your convenience, RF Venue offers the 8-Channel In-Ear Monitor Upgrade Pack, which bundles the COMBINE8 with a CP Beam helical antenna, and a 25" low-loss RG8X coaxial cable.
In the Box
- RF Venue COMBINE8 8-Channel IEM Transmitter Combiner (470 to 608 MHz)
- 8 x BNC Jumper Cables
- Auxiliary DC Power Supply for up to 8 Transmitters
- AC Power Cable
- Auxiliary AC Power Cable
- Limited 1-Year Warranty
RF Venue COMBINE8 Specs
| Frequency Range | 407 to 608 MHz |
| I/O | 8 x BNC RF Input Connectors 1 x BNC Antenna Output Connector |
| Gain | Full System Gain: 0 dB (±2 dB) |
| Maximum RF Input Power | +18 dBm (60 mW) |
| LED Indicator | Input Signal Threshold: > +5 dBm |
| Power Consumption | 36 W |
| Power | Input AC: 100-240 VAC, 50/60 Hz, 1.5 A (Maximum) |
| Dimensions | 18.9 x 1.8 x 10.2" / 480 x 45 x 260 mm |
| Weight | 8.1 lb / 3.7 kg |
| Package Weight | 9.47 lb |
| Box Dimensions (LxWxH) | 22.1 x 13 x 3.6" |
