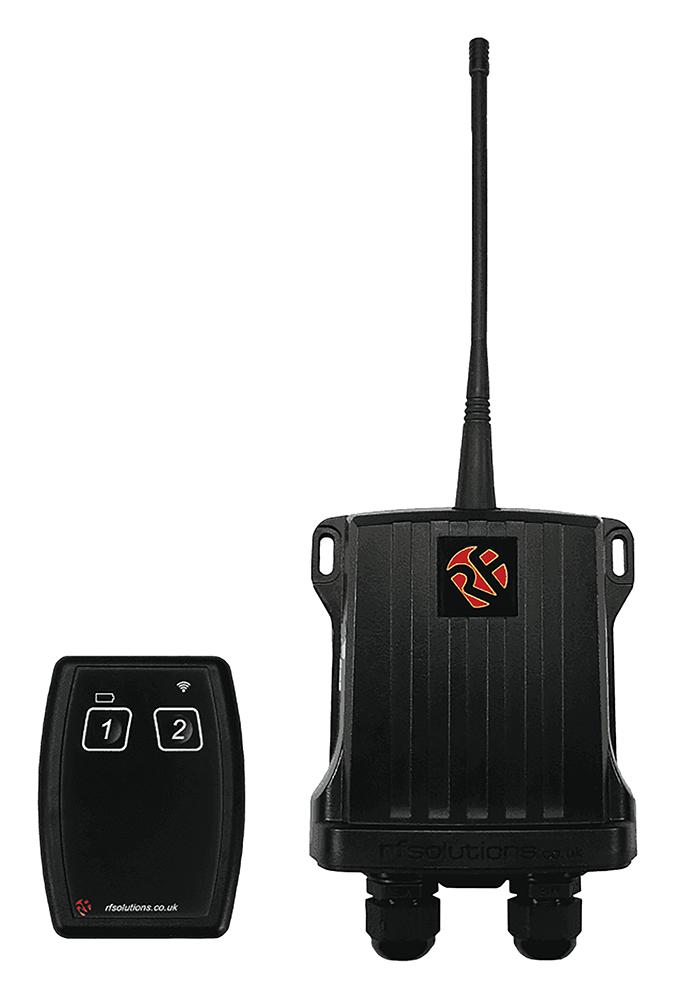

A versatile general purpose Remote Control System for many different applications. With the receiver housed in a rugged IP68 weatherproof enclosure, the QUANTA system is ideally suited to many remote control requirements. The output relays are activated by the button press on the transmitter. Each relay output can be controlled from any switch(es) on any QUANTA transmitter. Additional transmitters may be added to the system using the same 'easy-learn' process without opening the receiver enclosure.
- Suitable for commercial / industrial remote control, electric gates, roller shutter doors, Garden lighting and sports grounds
- Up to 100m Range
- 433MHz FM Technology
- 2 Channel, each 1000W
- Splashproof Transmitter (IP54)
- Waterproof Receiver (IP68)
- High Security RF Protocol
- Up to 4 Changeover Relays Contacts Rated 5A @ 230Vac
- Outputs Momentary or Latching
- Any Switch Map to Any Relay
- Systems supplied 'Ready to Go'
- FCC Certified and CE Compliant
Other details
| Brand |
RF SOLUTIONS |
| Part Number |
QUANTA-4S2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
