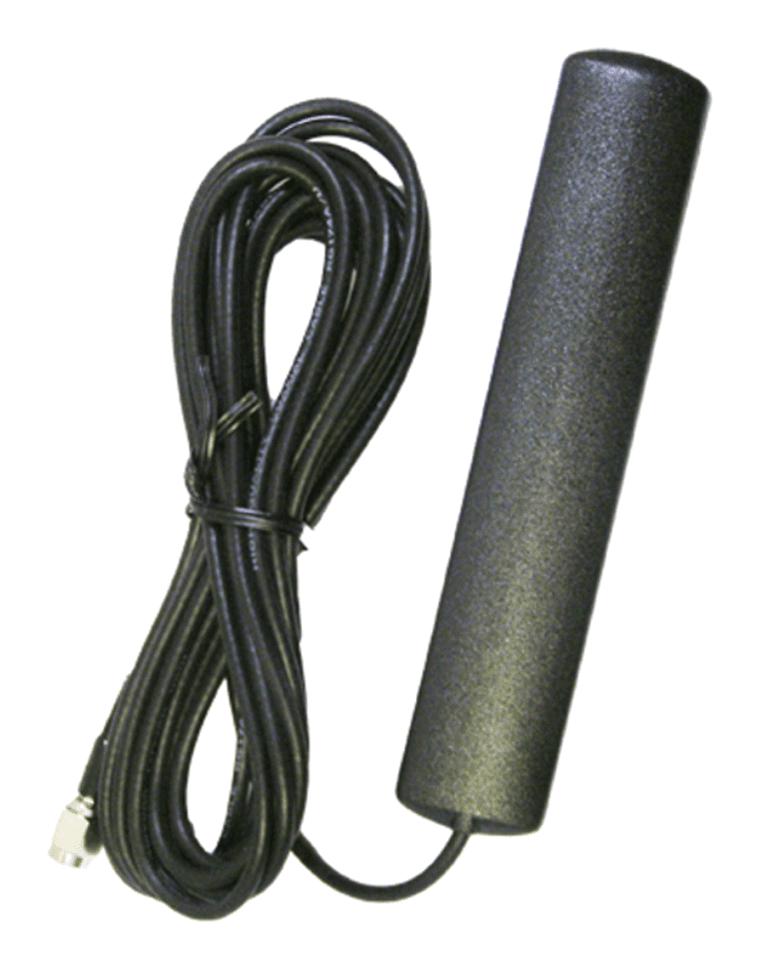

A compact PCB antenna for GSM cellular applications where high performance is required from a small size. using this will optimum range and reliability to your application.
- Suitable for applications such as embedded GSM, space saving applications and car window
- 3m RG174 connecting lead
- Ground plane independent
- Material ABS
- Operating temperature: -20°C to +65°C
Product details
| Antenna Type |
I-Bar |
| Frequency Min |
700MHz |
| Frequency Max |
2700MHz |
| Antenna Mounting |
Adhesive |
| Gain |
3dB |
| VSWR |
1.5 |
| Input Power |
10W |
| Input Impedance |
50ohm |
| Antenna Polarisation |
Linear |
| Product Range |
- |
Other details
| Brand |
RF SOLUTIONS |
| Part Number |
ANT-4GIBAR-SMA |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
