Description

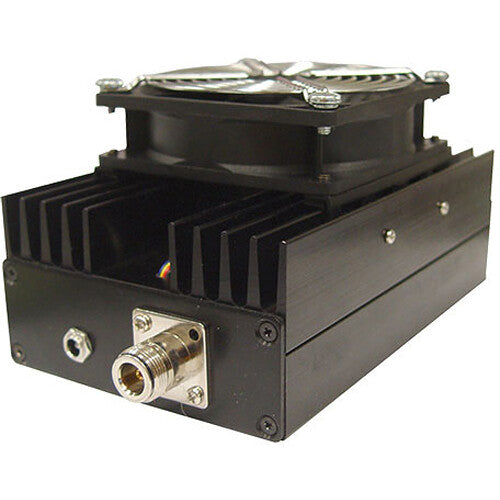

RF-Links ZHM0722-150 Overview
Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Wideband Microwave High-Power 150W Amplifier from RF-Links. The amplifier has been designed for professional VHF/UHF broadcasts, military communications, and laboratory testing applications, and it provides 50-ohm RF input and output, 66 dB gain, and up to 150W RF power output. It supports transmitters in the 700 to 2200 MHz broadband frequency range. This unit features BNC female input and output and it requires a separately available 43V power supply.
Key Features
Ideal for VHF/UHF broadcasts, military communications, laboratory testing applications
700 to 2200 MHz frequency range
150W output power
Compact, lightweight, rugged, and reliable
50-ohm input/output impedance
Requires 43V power supply
In the Box
- RF-Links Wideband Microwave High-Power 150W Amplifier (700-2200 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM0722-150 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
40 to 43 VDC at 4 to 20 A
|
| Operating Temperature |
-4 to 131°F / -20 to 55°C
|
Physical
| Material of Construction |
Aluminum
|
| Dimensions |
13 x 7.4 x 1" / 330 x 188 x 25 mm
|
| Weight |
2.6 lb / 1200 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 441450.8 |
| 3-5 | ₹ 436946.2 |
| 5-10 | ₹ 427937.0 |
| 10+ | ₹ 418927.8 |
Bulk discount will be automatically applied during checkout based on quantity.
