Description

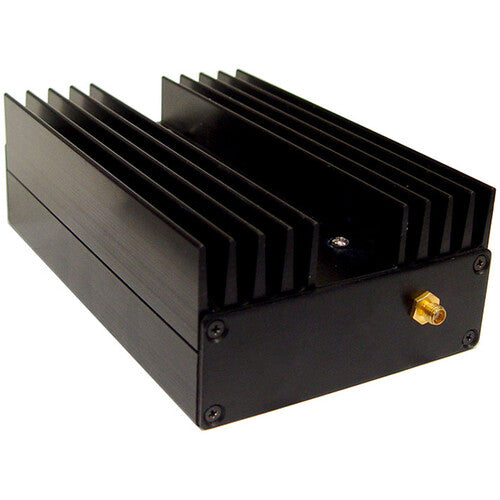

RF-Links ZHM-4016/2 Overview
Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Wideband 2W Microwave Amplifier from RF-Links. The aluminum amplifier has been designed for research, military communications, and laboratory testing applications, and it provides 50-ohm RF input and output, over 24 dB gain, and up to 2 W RF power output. It supports transmitters in the 40 to 1600 MHz broadband frequency range. This unit features SMA female input and output and it requires a separately available 24V power supply.
Key Features
Ideal for research, military communications, laboratory testing applications
40 to 1600 MHz frequency range
2W output power
Compact, lightweight, rugged, and reliable
50-ohm input/output impedance
Requires 24V power supply
Low noise, low distortion
In the Box
- RF-Links Wideband 2W Laboratory Amplifier (40�1600 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM-4016/2 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
24 VDC at 0.55 A
|
| Operating Temperature |
-40 to 167°F / -40 to 75°C
|
Physical
| Dimensions |
6 x 4 x 2" / 15.2 x 10.2 x 5.1 cm
|
| Weight |
0.9 lb / 400 g
|
