Description

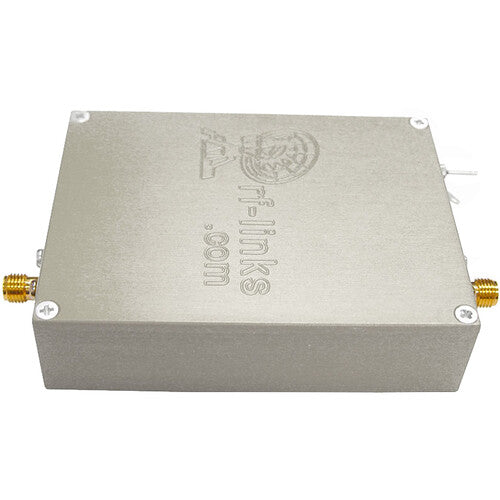

RF-Links ZHM-5659/15 Overview
Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Wideband 15W Microwave Amplifier from RF-Links. The amplifier has been designed for laboratory, military, and testing broadcast applications and it provides over 40 dB gain, 50 ohms input/output impedance, and 15W RF power output. It supports transmitters in the 5.6 to 5.9 GHz broadband frequency range. This unit features SMA female input and output.
Key Features
Ideal for laboratory, military, and commercial broadcast applications
5.6 to 5.9 GHz frequency range
15W output power
Compact, lightweight, rugged, and reliable
50 ohms input/output impedance
Requires external heat sink for cooling
In the Box
- RF-Links Wideband 15W Microwave Amplifier (5.6-5.9 GHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM-5659/15 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 to 17 VDC at 2.8 A
|
Physical
| Dimensions |
3.25 x 2.5 x 0.8" / 8.26 x 6.3 x 2 cm
|
| Weight |
Not Specified by Manufacturer
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 441450.8 |
| 3-5 | ₹ 436946.2 |
| 5-10 | ₹ 427937.0 |
| 10+ | ₹ 418927.8 |
Bulk discount will be automatically applied during checkout based on quantity.
