Description

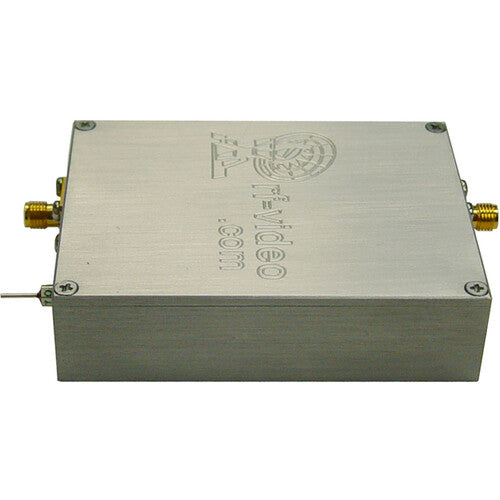

RF-Links ZHM-22G/1 Overview
Add a powerful but compact, high-power linear RF amplifier to your test platform with this Wideband 1.5W Microwave Amplifier from RF-Links. The aluminum amplifier has been designed for research, military communications, and laboratory testing applications, and it provides 50-ohm RF input and output, over 50 dB typical gain, and up to 1.5W RF power output. It supports transmitters in the 10 MHz to 22 GHz broadband frequency range. This unit features SMA female input and output, and it requires a separately available 12V power supply.
Note:
For government agencies only. This unit cannot be exported from the US.
Key Features
Ideal for telecom, government, fiber, military, and research laboratory testing applications
10 MHz to 22 GHz frequency range
1.5W output power
Compact, lightweight, rugged, and reliable
50-ohm input/output impedance
Requires 12V power supply
In the Box
- RF-Links Wideband 1.5W Microwave Amplifier (10 MHz- 22GHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM-22G/1 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 VDC at 400 to 440 mA
|
| Operating Temperature |
-40 to 185°F / -40 to 85°C
|
| Storage Temperature |
-85 to 302°F / -65 to 150°C
|
Physical
| Dimensions |
3.25 x 2.5 x 0.8" / 8.26 x 6.3 x 2 cm
|
| Weight |
Not Specified by Manufacturer
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
