Description

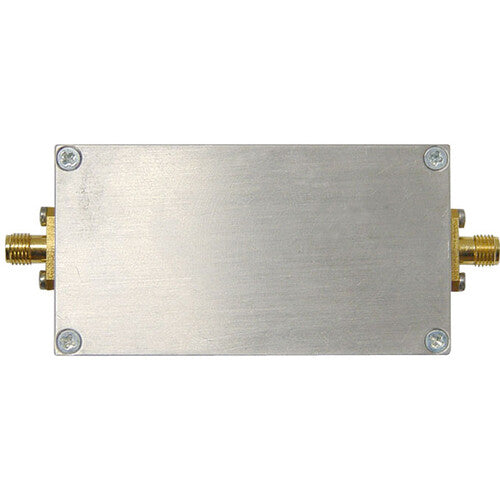

RF-Links LNAMP-1314 Overview
Add a powerful but compact low-noise amplifier to your video receiver with this Special Low-Noise Amplifier from RF-Links. The compact amplifier provides 50-ohm RF input and outputs via a male SMA-type connector. It supports receivers in the 1350 to 1450 MHz wideband frequency range and doesn't require any tuning or adjustment. Any 1350 to 1450 MHz antenna can connect to provide a signal gain of 33 dB and it requires 9�15V power.
Applications
Analog and digital transmission systems
Laboratory and test equipment
Radar receivers
In the Box
- RF-Links Special Low-Noise Amplifier for Receivers (1350-1450 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links LNAMP-1314 Specs
General
| Compatibility |
RF-Links Video Receivers
|
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
9 to 15 VDC at 80 mA
|
| Operating Temperature |
131°F / 55°C
|
Physical
| Dimensions |
2.8 x 1.5 x 0.75" / 7.1 x 3.8 x 1.91 cm
|
| Weight |
2.3 oz / 65 g
|
