Description

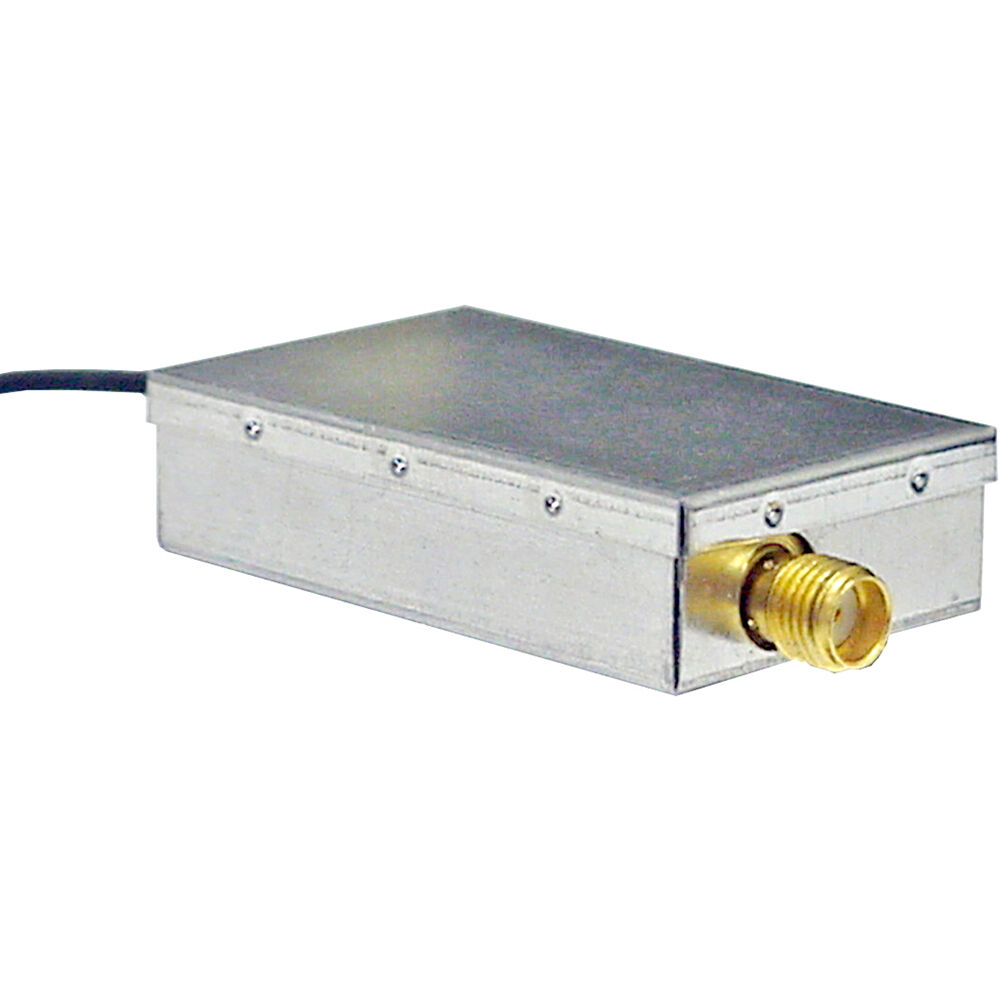

RF-Links AMP-1033/B Overview
Add a powerful but compact wideband linear amplifier to your video receiver with this RF UHF Linear Wideband Amplifier 0.2W from RF-Links. The compact amplifier provides 50-ohm RF input, 0.2W output power, and features male SMA I/O connectors. It supports transmitters in the 10 MHz to 3.3 GHz wideband frequency range and doesn't require any tuning or adjustment. It provides a signal gain of 28.4 dB and requires 12 VDC power.
Applications
PA Driver Amplifier
Cellular, PCS, GSM, UMTS
Wideband Instrumentation
Wireless Data, Satellite Terminals
In the Box
- RF-Links RF UHF Linear Wideband Amplifier 0.2W (10 MHz-3300 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links AMP-1033/B Specs
General
| Compatibility |
RF-Links Video Receivers & Transmitters
|
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 VDC at 0.12 A
|
Physical
| Dimensions |
1.7 x 1 x 0.4" / 4.3 x 2.5 x 1 cm
|
| Weight |
Not Specified by Manufacturer
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 147137.2 |
| 3-5 | ₹ 145635.8 |
| 5-10 | ₹ 142633.0 |
| 10+ | ₹ 139630.2 |
Bulk discount will be automatically applied during checkout based on quantity.
