| ₹ 450315.0 includes GST and import duties. | |
| B2B customers can avail ₹ 68673.04 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

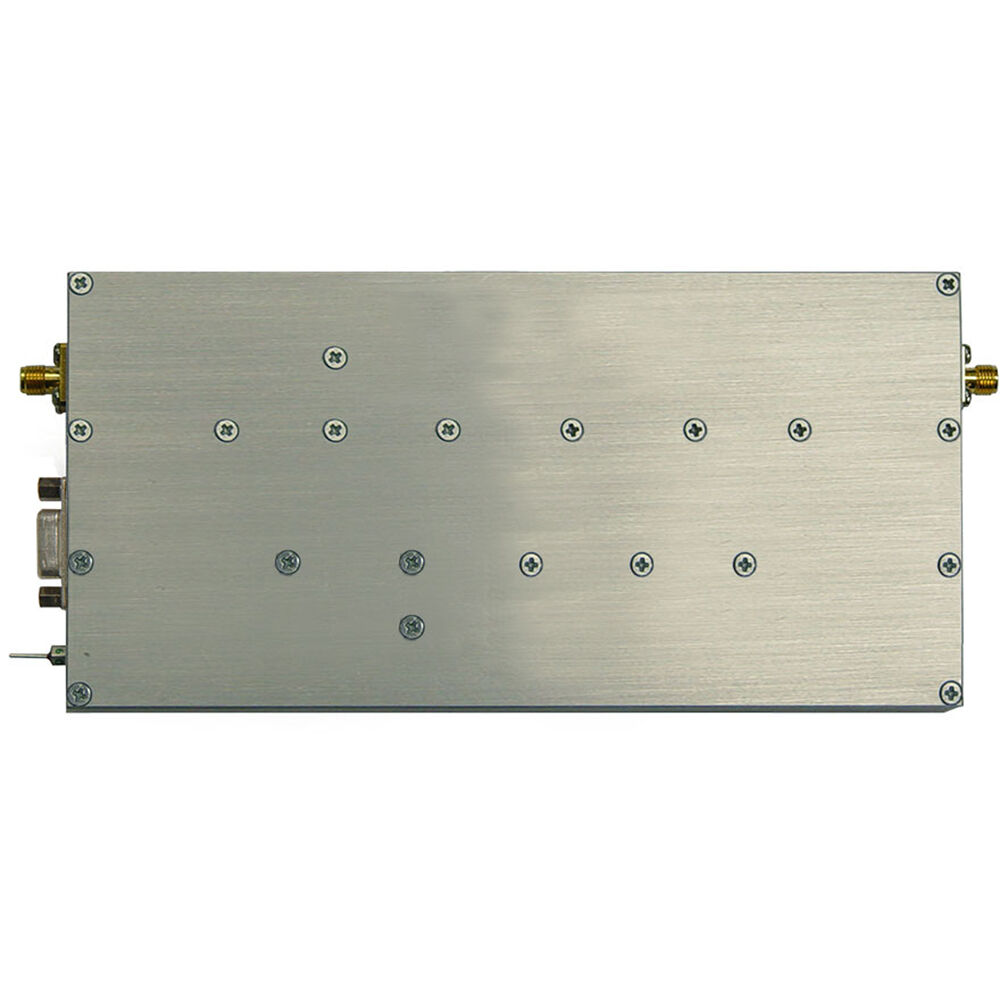

RF-Links ZHM-2000M Overview
Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Military-Grade UHF 10W Power Amplifier from RF-Links. The amplifier has been designed for professional UHF laboratory testing applications, and it provides 50-ohm RF input and output, over 49 dB gain, and up to 10W RF power output. It supports transmitters in the 800 to 2000 MHz broadband frequency range. This unit features SMA female input and output, and it features built-in circuit protection, monitoring, and control.
Key Features
Ideal for VHF/UHF laboratory testing applications
800 to 2000 MHz frequency range
10W output power
Compact, lightweight, rugged, and reliable
50-ohm input/output impedance
Built-in circuit protection
Requires external heat sink for cooling
In the Box
- RF-Links Military-Grade UHF 10W Power Amplifier (800-2000 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM-2000M Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 to 15 VDC at 5 to 6 A
|
Physical
| Dimensions |
7.5 x 4.8 x 2.8" / 19.1 x 12.2 x 7.1 cm
|
| Weight |
1.5 lb / 680 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 441308.7 |
| 3-5 | ₹ 436805.55 |
| 5-10 | ₹ 427799.25 |
| 10+ | ₹ 418792.95 |
Bulk discount will be automatically applied during checkout based on quantity.
