Description

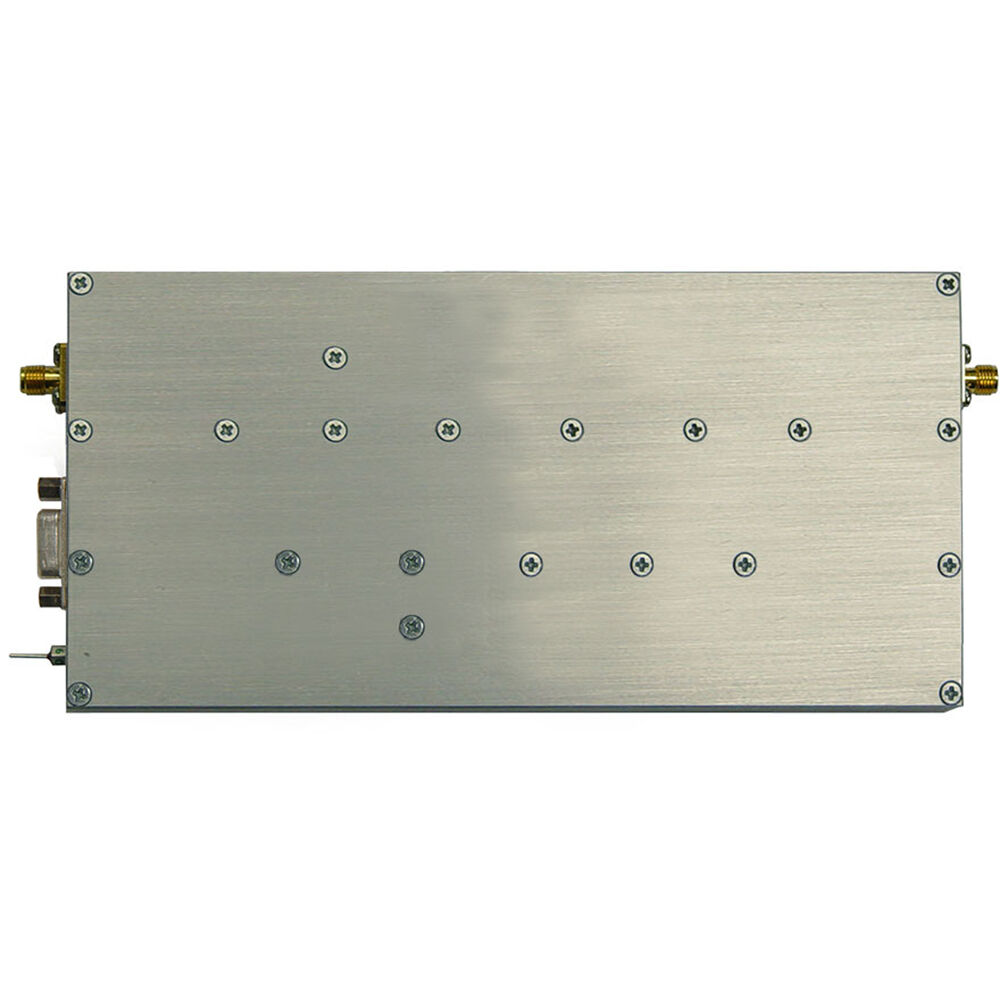

RF-Links ZHM 800-2500/50 Overview
Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Military-Grade 50W High-Power Amplifier from RF-Links. The silicon carbide amplifier has been designed for military and commercial broadcast applications and it provides over 46 dB gain, 50 ohms input/output impedance, and 50W RF power output. It supports transmitters in the 800 MHz to 2.5 GHz broadband frequency range. This unit features SMA female input and output.
Key Features
Ideal for military and commercial broadcast applications
800 MHz to 2.5 GHz frequency range
50W output power
Compact, lightweight, rugged, and reliable
Requires external heat sink for cooling
In the Box
- RF-Links Military-Grade 50W High-Power Amplifier (800 MHz-2.5 GHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM 800-2500/50 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
26 to 30 VDC at 2 to 6 A
|
| Operating Current |
6 A (Maximum)
|
Physical
| Material of Construction |
Silicon Carbide
|
| Dimensions |
7.5 x 3.5 x 1" / 19.1 x 8.9 x 2.5 cm
|
| Weight |
1 lb / 454 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
