Description
RF-Links ZHM 500-3000/50 Overview

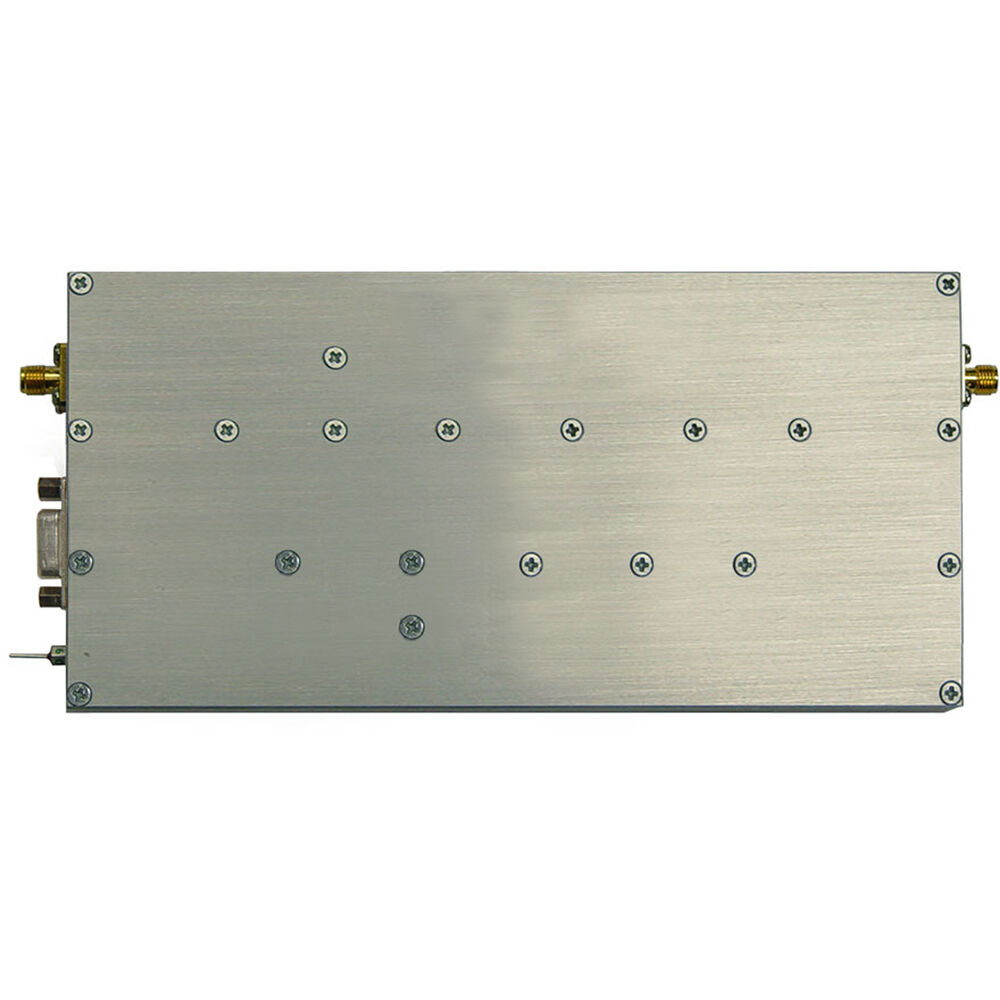

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Military-Grade 50W High-Power Amplifier from RF-Links. The gallium nitride amplifier has been designed for military and commercial broadcast applications and it provides over 35 dB gain, 50 ohms input/output impedance, and 50W RF power output. It supports transmitters in the 500 MHz to 3 GHz broadband frequency range. This unit features SMA female input and output.
Key Features
Ideal for military and commercial broadcast applications
500 MHz to 3 GHz frequency range
50W output power
Compact, lightweight, rugged, and reliable
Requires external heat sink for cooling
In the Box
- RF-Links Military-Grade 50W High-Power Amplifier (500 MHz to 3.0 GHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM 500-3000/50 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
26 to 30 VDC at 2 A
|
| Operating Current |
6 A
|
| Operating Temperature |
-40 to 185°F / -40 to 85°C
|
Physical
| Material of Construction |
Gallium Nitride
|
| Dimensions |
7.5 x 3.5 x 1" / 19.1 x 8.9 x 2.5 cm
|
| Weight |
1 lb / 454 g
|
