Description

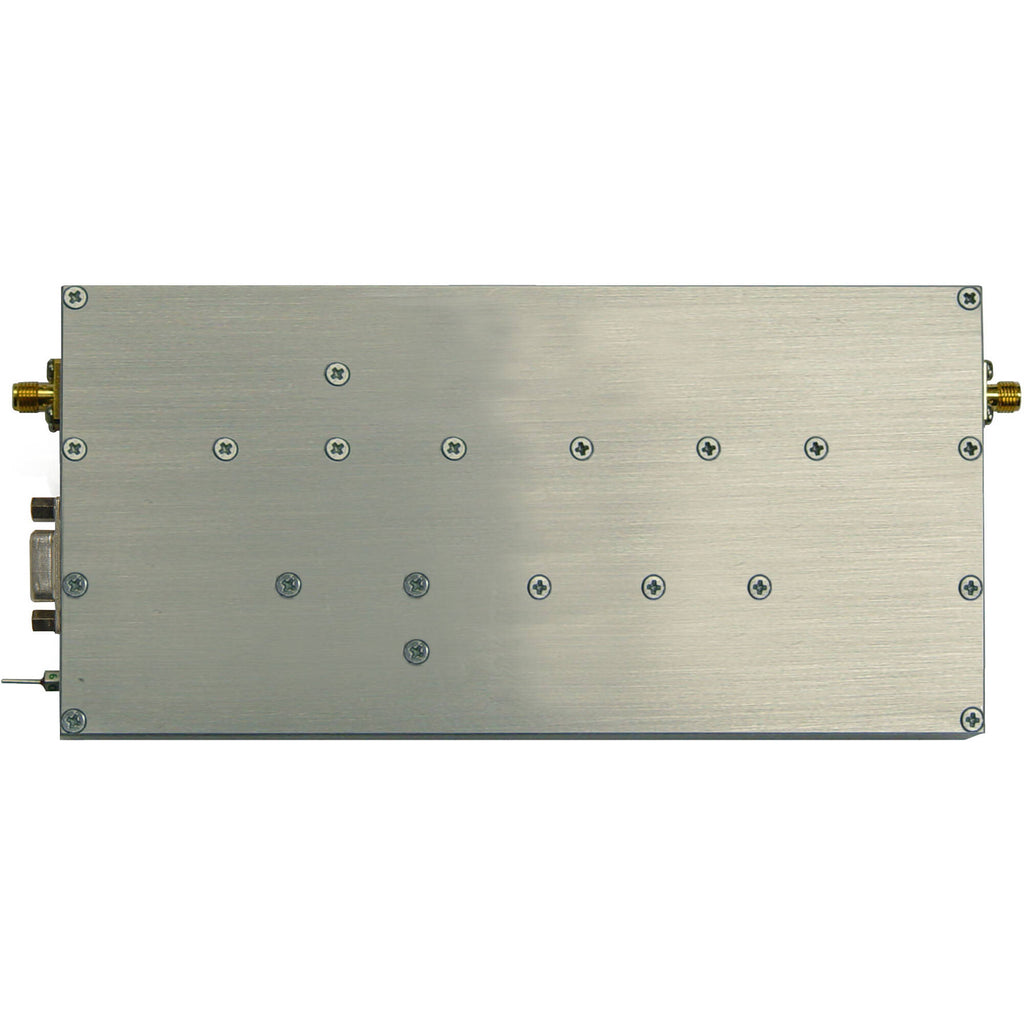

RF-Links ZHM 20-2500/50 Overview
Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Military-Grade 50-100W High-Power Amplifier from RF-Links. The gallium nitride amplifier has been designed for military and commercial broadcast applications and it provides over 55 dB gain and up to 50W RF power output. It supports transmitters in the 20 to 2500 MHz broadband frequency range. This unit features SNA female input and output.
Key Features
Ideal for military and commercial broadcast applications
20 to 2500 MHz frequency range
50 to 100W output power
Compact, lightweight, rugged, and reliable
Requires external heat sink for cooling
In the Box
- RF-Links Military-Grade 50-100W High-Power Amplifier (20-2500 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM 20-2500/50 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
26 to 32 VDC at 6.5 A
|
| Operating Temperature |
-40 to 185°F / -40 to 85°C
|
| Operating Humidity |
95%
|
| Operating Altitude |
10,000 to 30,000' / 3048.0 to 9144 m
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Storage Humidity |
95%
|
| Storage Altitude |
10,000 to 30,000' / 3048.0 to 9144 m
|
Physical
| Material of Construction |
Gallium Nitride
|
| Dimensions |
7.5 x 4.5 x 2" / 19.1 x 11.4 x 5.1 cm
|
| Weight |
2 lb / 907 g
|
