Description
RF-Links ZHM 20-1000/100 Overview

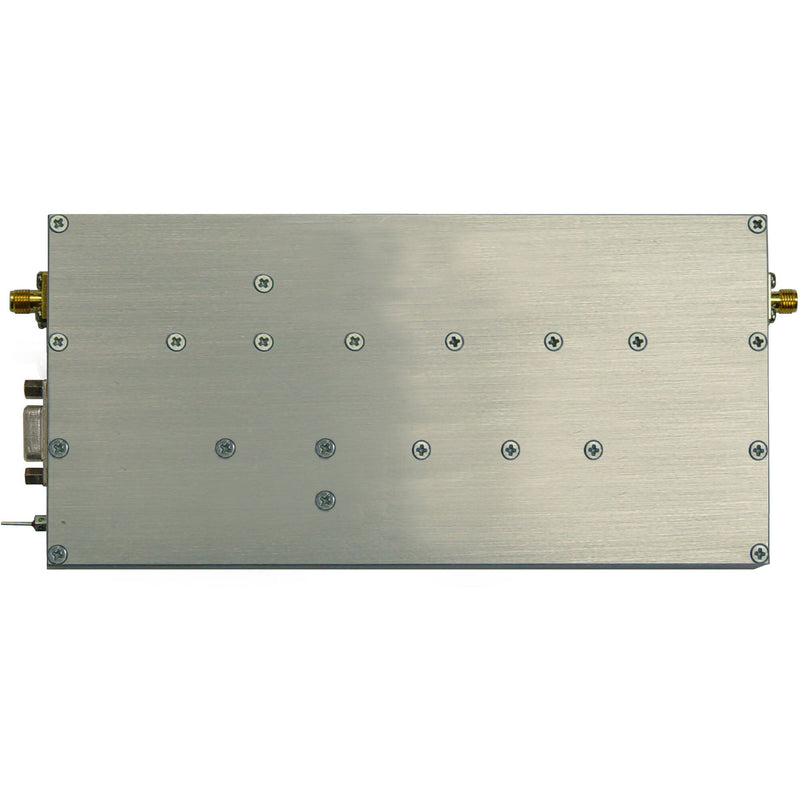

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Military-Grade 100W High-Power Amplifier from RF-Links. The gallium nitride amplifier has been designed for military and commercial broadcast applications and it provides over 58 dB gain and up to 100W RF power output. It supports transmitters in the 20 to 1000 MHz broadband frequency range. This unit features SMA female input and output.
Key Features
Ideal for military and commercial broadcast applications
20 to 1000 MHz frequency range
100W output power
Compact, lightweight, rugged, and reliable
Requires external heat sink for cooling
In the Box
- RF-Links Military-Grade 100W High-Power Amplifier (20-1000 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM 20-1000/100 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
26 to 30 VDC at 6 A
|
| Operating Current |
3000 mA
|
| Operating Temperature |
-4 to 176°F / -20 to 80°C
|
| Operating Humidity |
95%
|
| Operating Altitude |
10,000 to 30,000' / 3048.0 to 9144 m
|
| Storage Temperature |
-40 to 185°F / -40 to 85°C
|
| Storage Humidity |
95%
|
| Storage Altitude |
10,000 to 30,000' / 3048.0 to 9144 m
|
Physical
| Material of Construction |
Gallium Nitride
|
| Dimensions |
5.75 x 3.75 x 1.2" / 14.61 x 9.53 x 3 cm
|
| Weight |
2 lb / 907 g
|
