Description

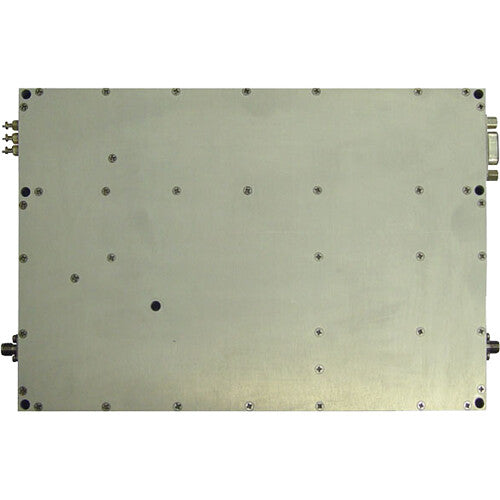

RF-Links ZHM 1727H100 Overview
Add a powerful but compact, high-power RF amplifier to your military or commercial broadcast platform with this Military-Grade 100W High-Power Amplifier from RF-Links. The compact amplifier is designed for broadband cellular and commercial communications systems, and it provides 50-ohm input/output impedance, 52 dB gain, and up to 100W RF power output. It supports transmitters in the 1700 to 2250 MHz broadband frequency range. This unit features SMA female input and output and requires a separately available external heat sink for cooling.
Key Features
Military-grade broadband high-power amplifier
Ideal for military and commercial cellular band communications systems
1700 to 2250 MHz frequency range
50W output power
50 Ohms input/output impedance
Compact, lightweight, rugged, and reliable
In the Box
- RF-Links Military-Grade 100W High-Power Amplifier (1700 to 2250 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZHM 1727H100 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
32 VDC at 2.1 A
|
| Operating Current |
14 A
|
| Operating Temperature |
149°F / 65°C
|
Physical
| Dimensions |
8.46 x 5.75 x 1.04" / 214.88 x 146.05 x 26.42 mm
|
| Weight |
Not Specified by Manufacturer
|
