Description

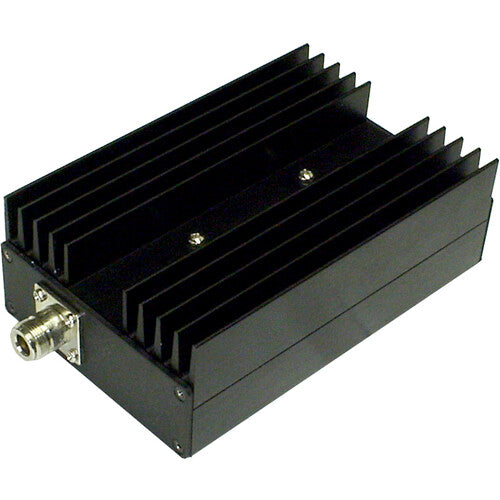

RF-Links ZH-1214/HP Overview
Add a powerful but compact, high-power linear RF amplifier to your laboratory or experimental broadcast platform with this Laboratory Grade High-Power Amplifier 40W from RF-Links. The class AB amplifier has been designed for professional test operation and provides 50-ohm RF input and output, 18 dB gain, and up to 40W RF power output. It supports transmitters in the 1.2 to 1.4 GHz broadband frequency range. This unit features SMA female input and output.
Key Features
Ideal for broadband laboratory, RF power exciters, and experiments
1.2 to 1.4 GHz frequency range
40W output power
Solid-state Class AB linear design
Compact, lightweight, rugged, and reliable
50-ohm input/output impedance
In the Box
- RF-Links Laboratory Grade High-Power Amplifier 40W (1200-1400 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links ZH-1214/HP Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 VDC
|
| Operating Current |
1.8 A (Typical)
|
| Operating Temperature |
-13 to 158°F / -25 to 70°C
|
Physical
| Dimensions |
6 x 4 x 2" / 15.2 x 10.2 x 5.1 cm
|
| Weight |
10.6 oz / 300 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 296881.2 |
| 3-5 | ₹ 293851.8 |
| 5-10 | ₹ 287793.0 |
| 10+ | ₹ 281734.2 |
Bulk discount will be automatically applied during checkout based on quantity.
