Description

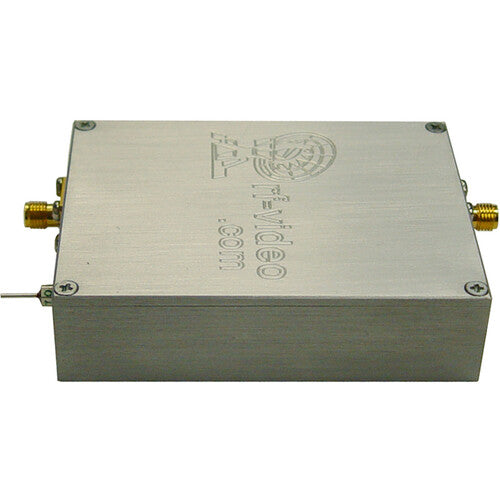

RF-Links AMP-750/45 Overview
Add a powerful but compact wideband linear amplifier to your small TV station or studio with this High-Gain UHF Linear Amplifier Class A Public Safety Band from RF-Links. The compact linear amplifier provides 50-ohm RF input, 45W RF Class A output power, and features male SMA I/O connectors. It supports UHF transmissions in the 750 to 860 MHz wideband frequency range with low distortion and doesn't require any tuning or adjustment. It provides a maximum signal gain of 26 dB. This unit is ideal for emergency UHF for analog or digital TV broadcasts.
Note:
This unit must be installed on a separately available heat sink.
In the Box
- RF-Links High-Gain UHF Linear Amplifier Class A (750-890 MHz)
- Limited 90-Day Manufacturer Warranty
RF-Links AMP-750/45 Specs
Inputs / Outputs
| Video I/O |
1 x SMA Input
1 x SMA Output |
Power
| Power Source |
Proprietary Interface
|
| DC Input Power |
12 to 14 VDC
|
| Operating Current |
6 A
|
Physical
| Dimensions |
3.25 x 2.5 x 0.8" / 82.55 x 63.5 x 20.3 mm
|
| Weight |
Not Specified by Manufacturer
|
