Description

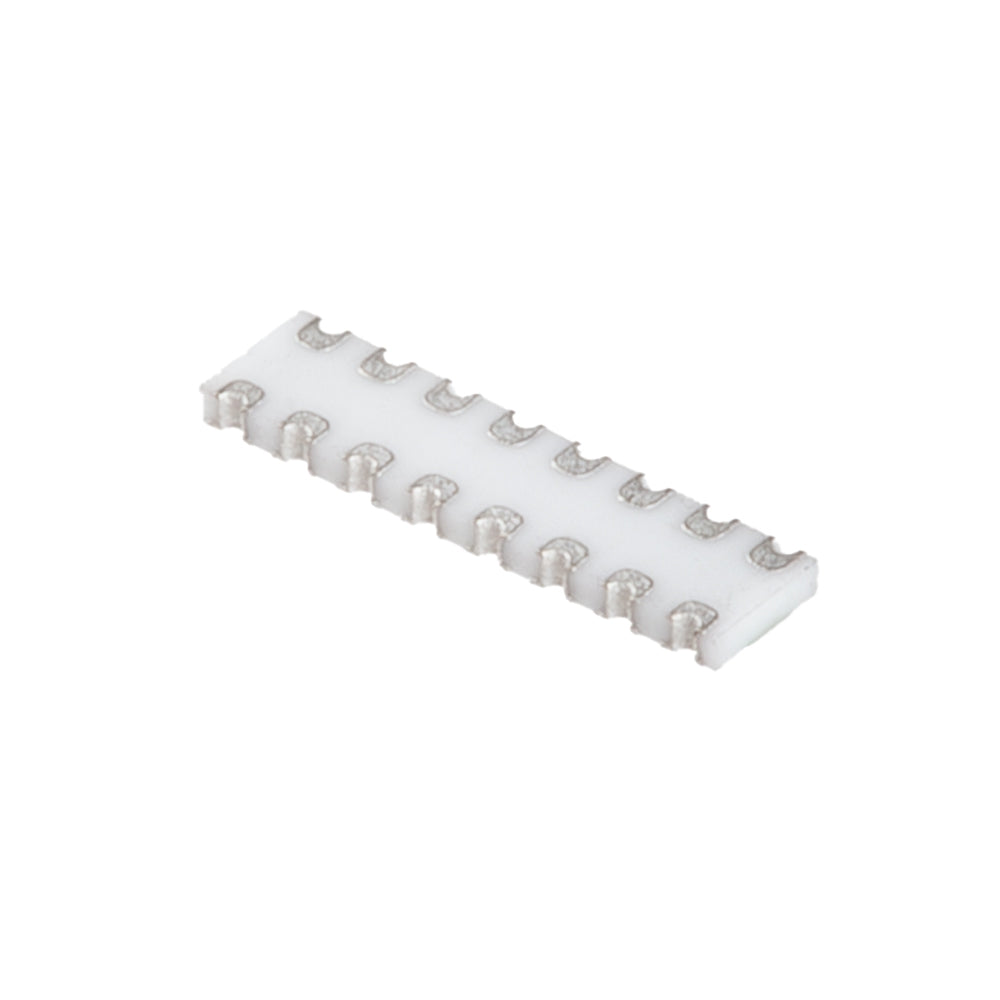

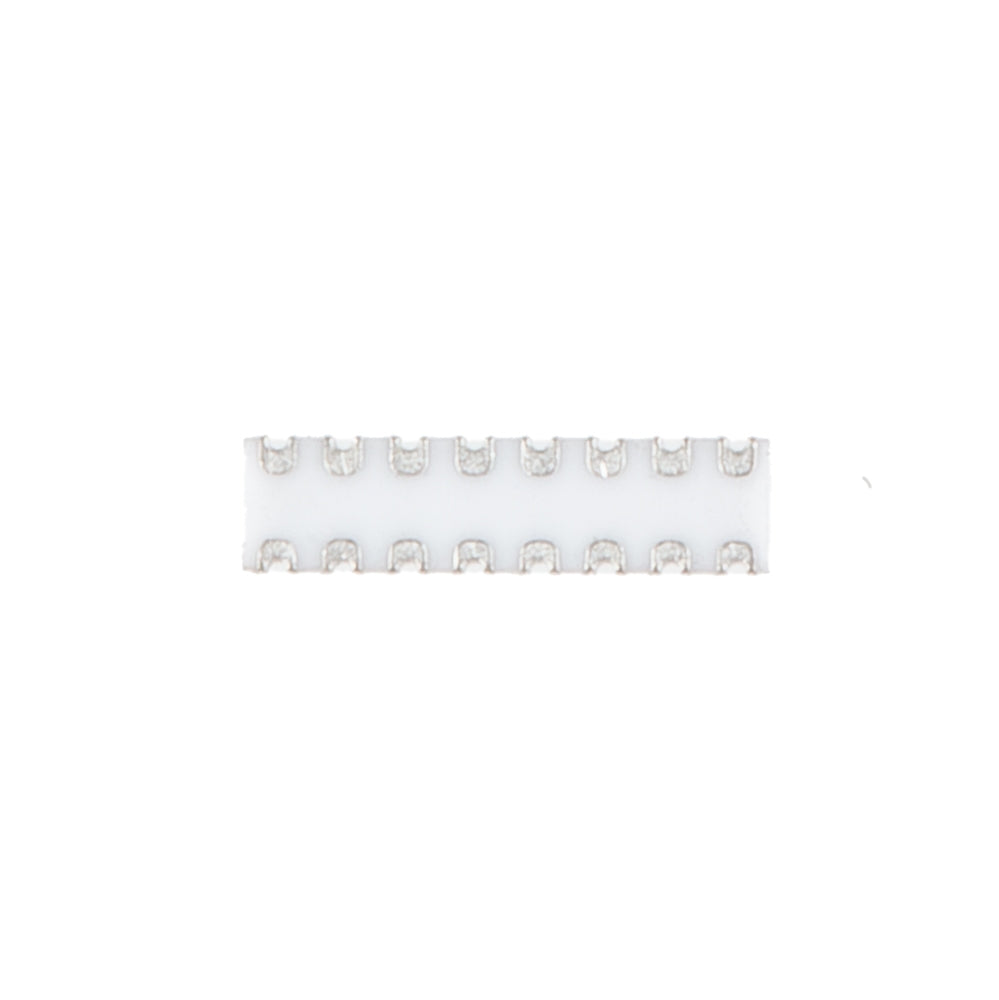

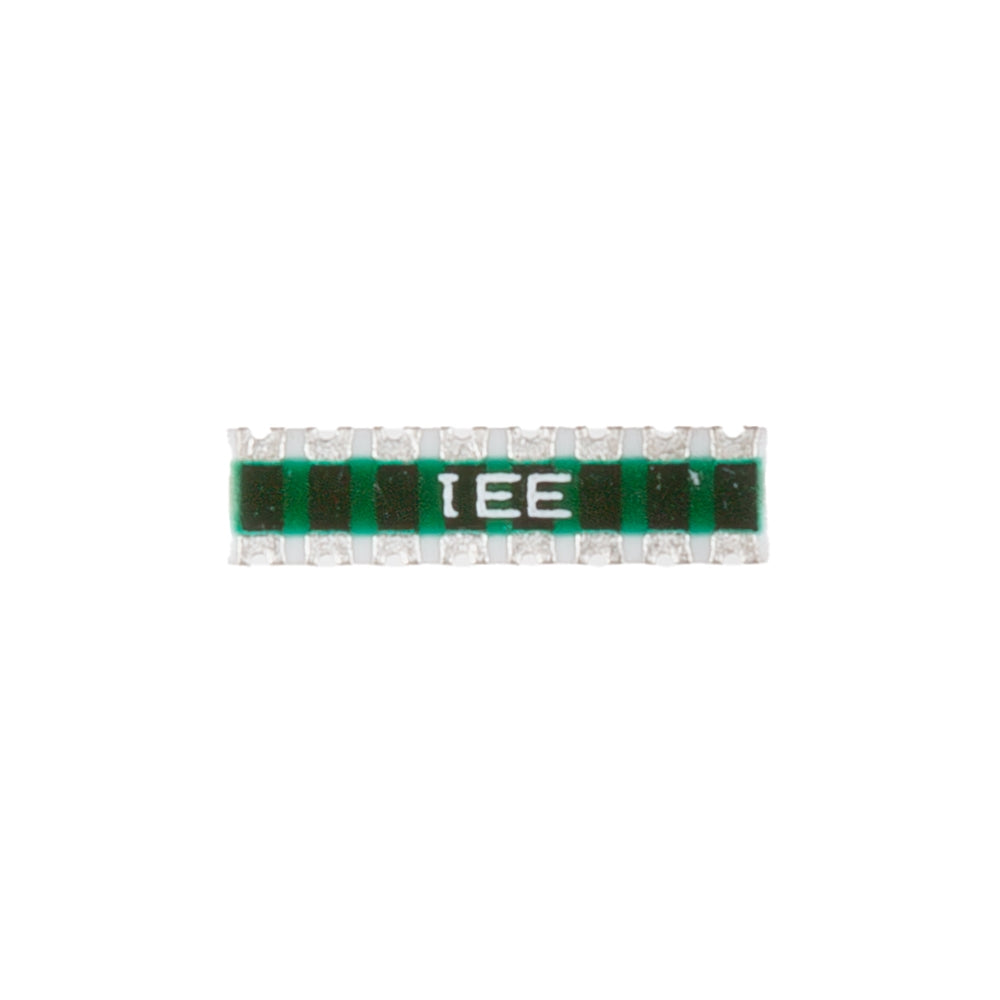

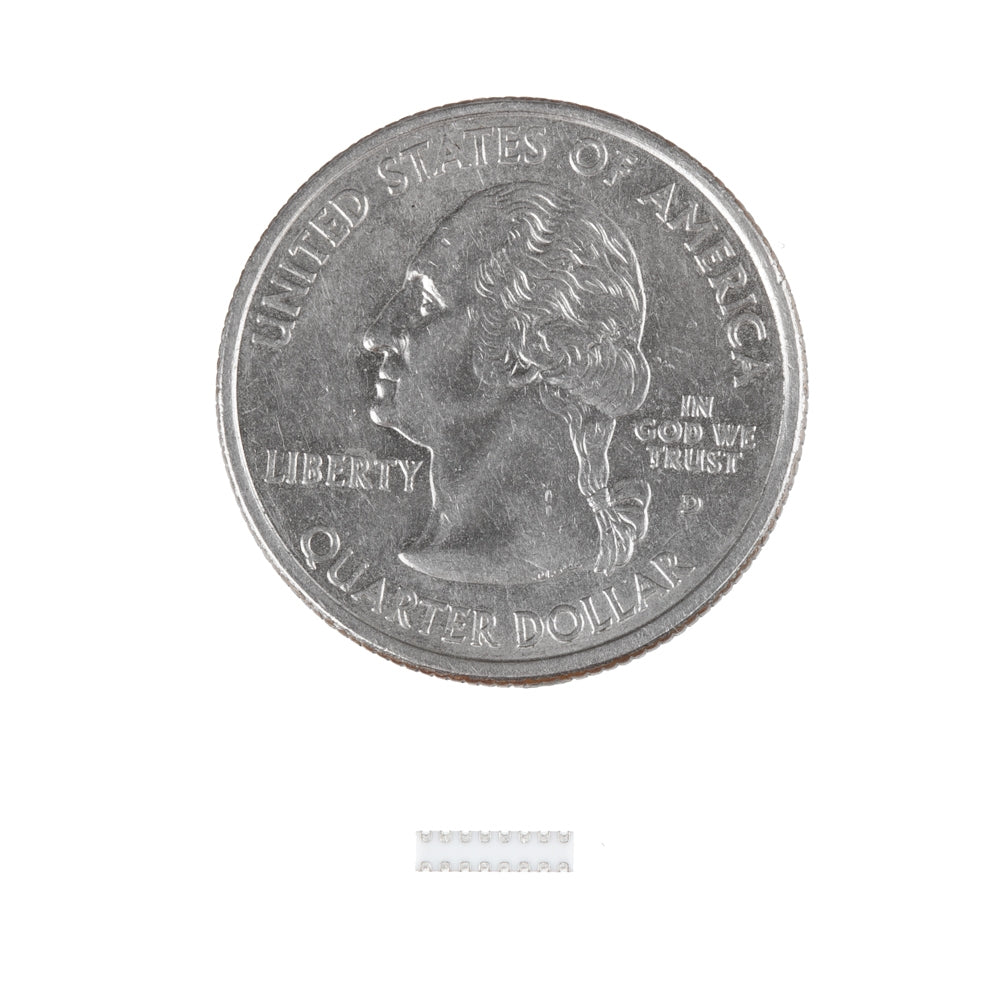

A 330 Ohm 8-resistor isolated network in a 16-pin 2506 package, featuring a 63mW power rating per element and ±5% tolerance.
Features & Specs
- Circuit Type: Isolated
- Resistance: 330 Ohms
- Tolerance: ±5%
- Number of Resistors: 8
- Number of Pins: 16
- Power Per Element: 63mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Dimensions: 0.252" L x 0.063" W (6.40mm x 1.60mm)
- Height - Seated (Max): 0.028" (0.70mm)
- Mfg #: 742C163331JP
Features & Specs
- Circuit Type: Isolated
- Resistance: 330 Ohms
- Tolerance: ±5%
- Number of Resistors: 8
- Number of Pins: 16
- Power Per Element: 63mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Dimensions: 0.252" L x 0.063" W (6.40mm x 1.60mm)
- Height - Seated (Max): 0.028" (0.70mm)
- Mfg #: 742C163331JP
