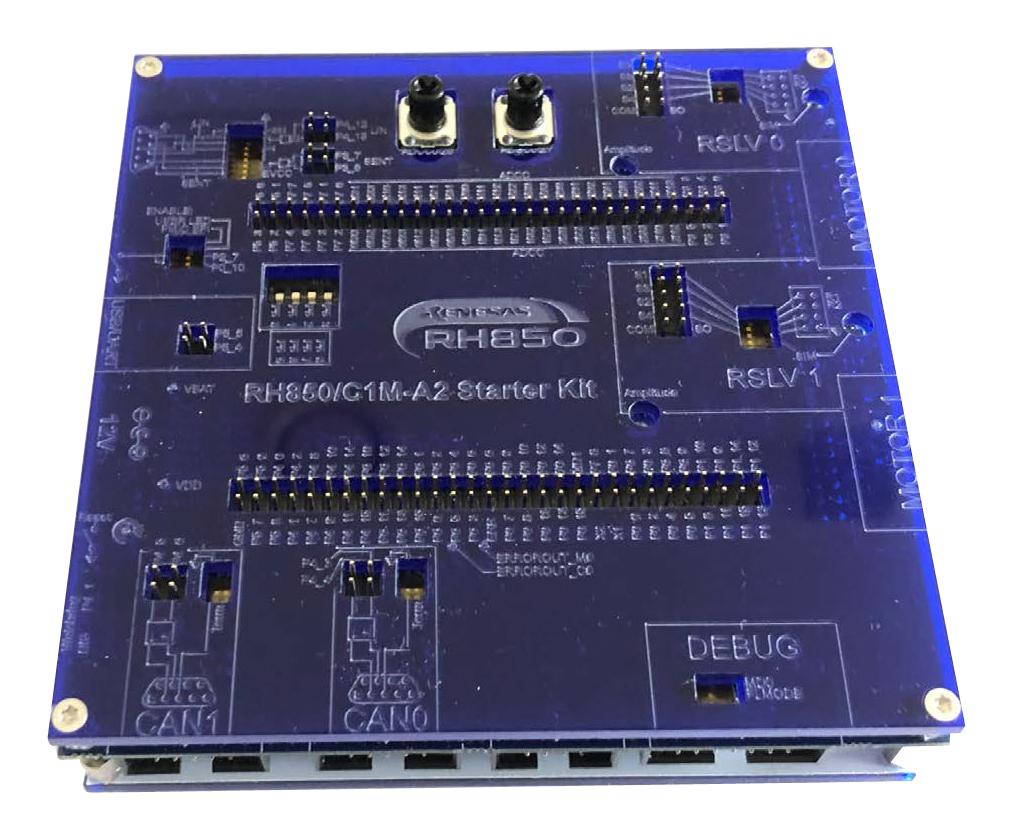

Y-ASK-RH850C1M-A2 is a RH850/C1M-A starter kit. The RH850/C1M-A Starter Kit serves as a simple and easy to use platform for evaluating the features and performance of Renesas 32bit RH850/C1M-A2 microcontrollers. Typical applications include motor generator system and xEV inverter solution and inductive position sensor.
- Connections for on-chip debugging and flash memory programming (Renesas E1 OCD Emulator included)
- Access to all microcontroller I/O pins
- User interaction through the potentiometers, buttons, LEDs
- Serial interface connections for 1x USB/UART, 1x LIN/SENT, 2x CAN-FD
- Power supply by external power supply unit (included, 12V DC input)
- Motor control features access to R/D converter, o/p for control signals, i/p's for resolver signals
Product details
| Silicon Manufacturer:
Renesas
|
| No. of Bits:
32bit
|
| Silicon Family Name:
RH850
|
| Core Architecture:
G3MH
|
| Core Sub-Architecture:
-
|
| Silicon Core Number:
R7F701275EABG-C#AC6
|
| Kit Contents:
Board R7F701275EABG-C#AC6, E1 OCD Emulator Unit, S/W Installation CD, Jumpers, Cables, Power Supply
|
| Product Range:
RH850 Family, RH850/C1x Series, RH850/C1M-Ax Group Microcontrollers
|
Other details
| Brand |
RENESAS |
| Part Number |
Y-ASK-RH850C1M-A2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
