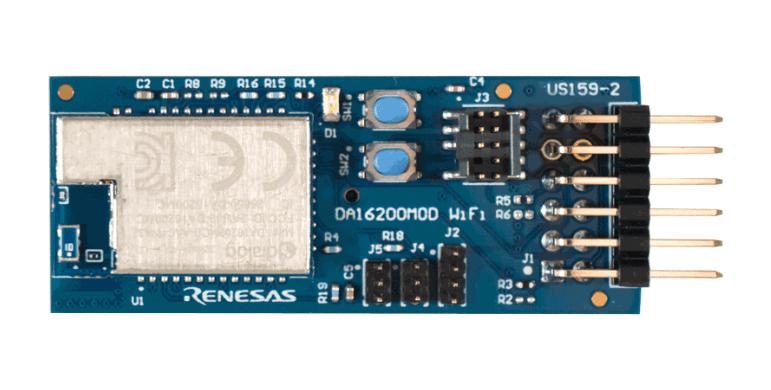

US159-DA16200MEVZ is an ultra low power Wi-Fi Pmod� module enables the user to add Wi-Fi capability to any evaluation kit or microcontroller board equipped with a Pmod expansion capability. The board provides a standard Pmod� Type 3A (Expanded UART) connection for the on-board Wi-Fi module. The US159-DA16200EVZ features a Type 3A Pmod� connector and incorporates the DA16200MOD Module, based on the DA16200 System-on-Chip. Thanks to the standard connector and software support, the US159-DA16200EVZ is ideal for Renesas' Quick-Connect IoT to rapidly create an IoT system.
- DA16200MOD module with integrated chip antenna
- Standardized type 3A Pmod� connector supports expanded UART interface
- Optional battery operation with on-board CR1220 coin cell
- LED (D1) to aid in user software debug
- 10-pin 1.27mm pitch Arm cortex-debug connector (J2) for software development and debug support
Other details
| Brand |
RENESAS |
| Part Number |
US159-DA16200MEVZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| User Manual EN |
|
