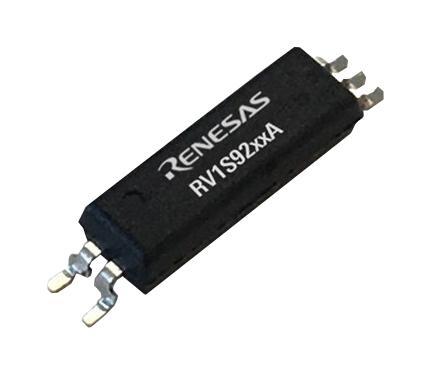

RV1S9209A is an optical coupled high-speed, totem pole output (active high output type) isolator containing an AlGaAs LED on the input side and a photodiode and a signal processing circuit on the output side on one chip. The RV1S9209A is specified high CMR and pulse width distortion with operating temperature. It is suitable for IPM (Intelligent Power Module) drive and for general purpose inverter.
- Small and long creepage (8.2mm min, LSSO5)
- Totem pole output (active high output type)
- Pulse width distortion ( tPLH-tPHL = 80ns max)
- High common mode transient immunity (CMH, CML = ± 50KV/µs min)
- Operating ambient temperature (125°C max)
- High isolation voltage (BV = 5000Vrms)
- UL:UL157, double protection/CSA:CAN/CSA-C22.2 No.62368-1, reinforced insulation
- VDE:DIN EN 60747-5-5 (option)
Other details
| Brand |
RENESAS |
| Part Number |
RV1S9209ACCSP-10YV#SC0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
