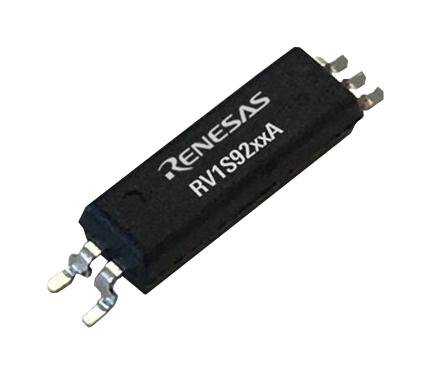

RV1S9207A is an optical coupled isolator containing an AlGaAs LED on the input side and a photo diode, a signal processing circuit and power output MOSFETs on the output side on one chip. The RV1S9207A is designed specifically for high common mode transient immunity (CMR) and high switching speed. It is suitable for driving IGBTs and MOSFETs. Typical applications include IGBT, power MOSFET gate driver, industrial inverter and AC servo.
- Small and long creepage (8.2mm min, LSSO5)
- Peak output current (0.6A max, 0.4A min)
- High speed switching (tPLH, tPHL = 150ns max)
- High common mode transient immunity (CMH, CML = ± 50KV/µs min)
- Operating ambient temperature (125°C max)
- High isolation voltage (BV = 5000Vrms)
- UL:UL157, double protection/CSA:CAN/CSA-C22.2 No.62368-1, reinforced insulation
- VDE:DIN EN 60747-5-5 (option)
Other details
| Brand |
RENESAS |
| Part Number |
RV1S9207ACCSP-10YC#SC0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
