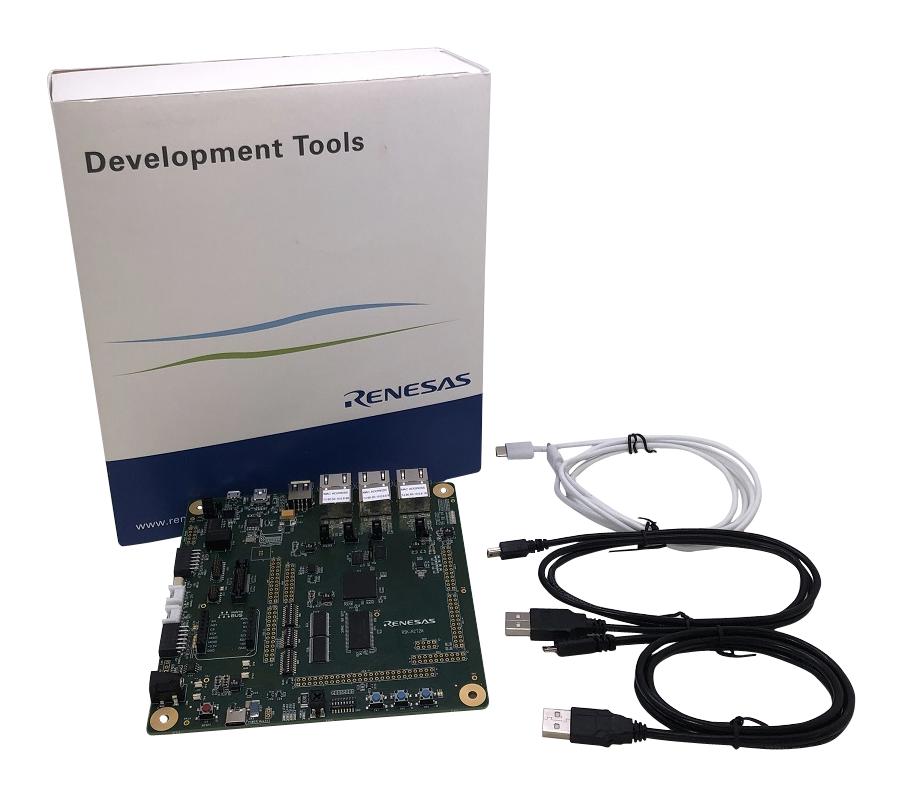

Renesas Starter Kit+ for RZ/T2M is an evaluation and development kit for the RZ/T2M MPU. Since it has an on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This board includes rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, and you can evaluate various functions of RZ/T2M without an extension board.
- On-board RZ/T2M MPU 320-pin (R9A07G075M24GBG)
- Rich functional ICs such as Gigabit Ethernet PHY and Octal Flash are mounted
- Generic interface such as Pmod�/Grove®/QWIIC®/mikroBUS�
- The pin header enables users to freely combine with the user's hardware system and evaluate RZ/T2M
- Emulator circuit is mounted, can start program debugging by simply connecting USB cable to PC
- Two USB cables are bundled: one for emulator and the other for power supply
- Renesas IDE e² studio and FSP for RZ/T2 are available
Product details
| Silicon Manufacturer |
Renesas |
| No. of Bits |
32bit |
| Silicon Family Name |
RZ/T2M |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-R52 |
| Silicon Core Number |
R9A07G075M24GBG |
| Kit Contents |
Starter Kit R9A07G075M24GBG, USB Cables(Type C-Type C, Type A-Type Mini B, Type A-Type Micro B) |
| Product Range |
- |
Other details
| Brand |
RENESAS |
| Part Number |
RTK9RZT2M0S00000BE |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
