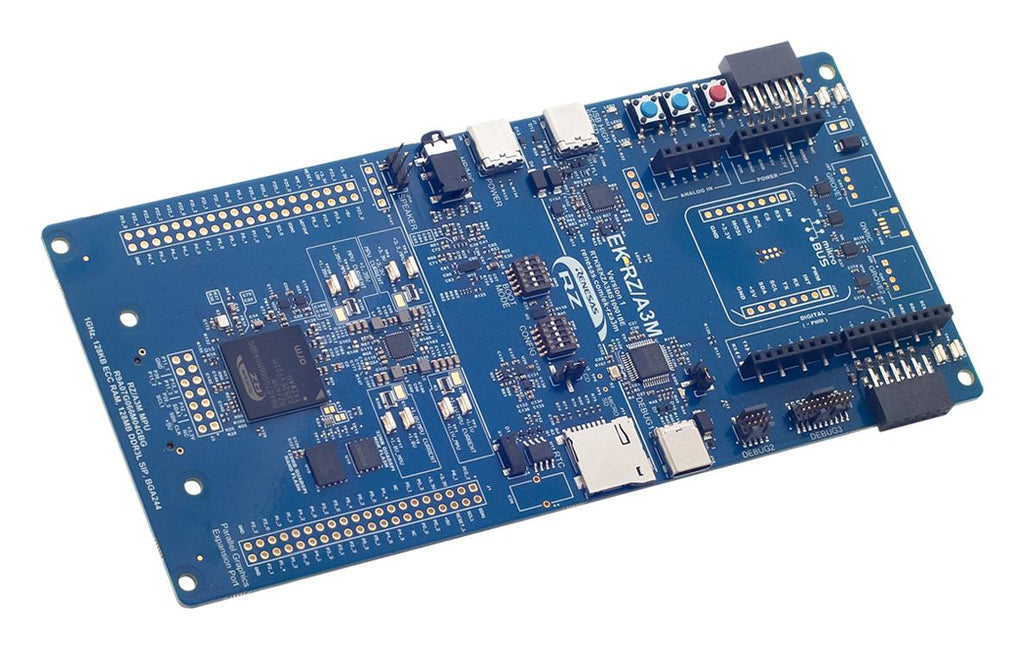

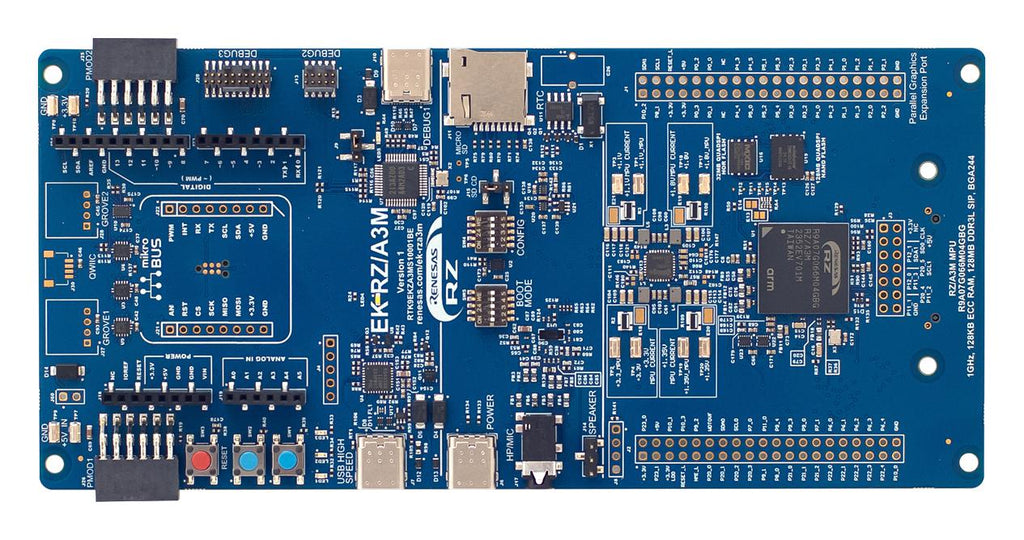

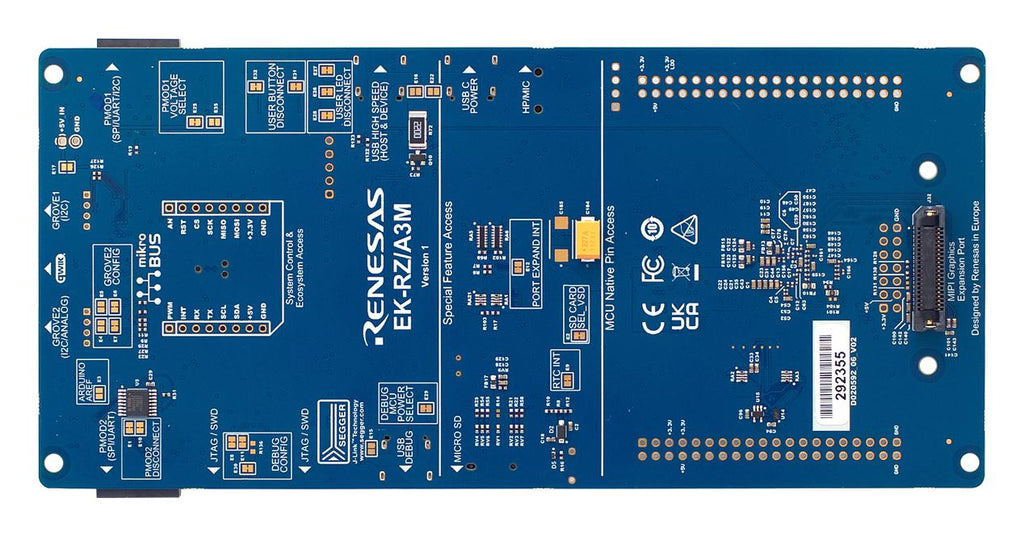

RENESAS RTK9EKZA3MS10001BE Evaluation Kit, R9A07G066M04GBG#AC0, RZ Family, ARM Cortex-A55, 64Bit

RTK9EKZA3MS10001BE is a evaluation kit featuring 64bit Arm® Cortex®-A55 MPU (1GHz) with built-in DDR3L SDRAM and MIPI graphics expansion board (5inch TFT display, 720*1280 pixel). The RZ/A3M MPU based on the Arm® Cortex®-A55 (CA55) core with NEON� extension and built-in large capacity 128MB DDR3L memory are equipped with a feature set optimized to address diverse human-machine interface (HMI) for consumer, smart home and building automation, healthcare, industrial applications, and office automation market segments. The RZ/A3M MPUs also integrate features such as high-resolution Graphics LCD controller with parallel RGB and 4-lane MIPI-DSI interfaces to display panels, 2D graphics drawing engine, support QSPI NOR/NAND flash for large-size programs and 244 pin LFBGA package which is ideal for 2-layers board design. Suitable for consumer products, smart home and building automation, healthcare, industrial applications and office automation applications.

• 64bit 1GHz Arm Cortex-A55 with NEON
• Built-in 128MB DDR3L SDRAM
• LCD controller up to WXGA (1280x800) with parallel RGB and MIPI-DSI (4lane) interface
• 2D drawing engine
• QSPI NOR/NAND flash boot
• Enable 2-layer PCB design
• SDHI for high-speed Wi-Fi® module
• I2S for audio interface
• USB 2.0 Interface for USB camera
• UART/SPI/I2C for sensors

Contents

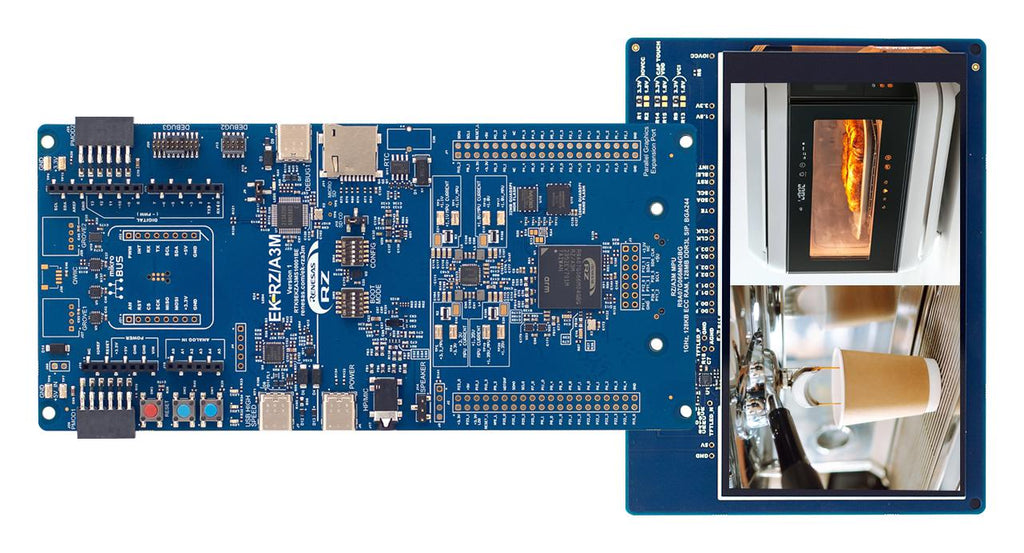

EK-RZ/A3M v1 board, USB-C to USB-C cable, USB-C to USB-A cable, USB-C to USB-A female host cable, MIPI graphics expansion board 2, Display mounting hardware (spacers and fixing screws).
