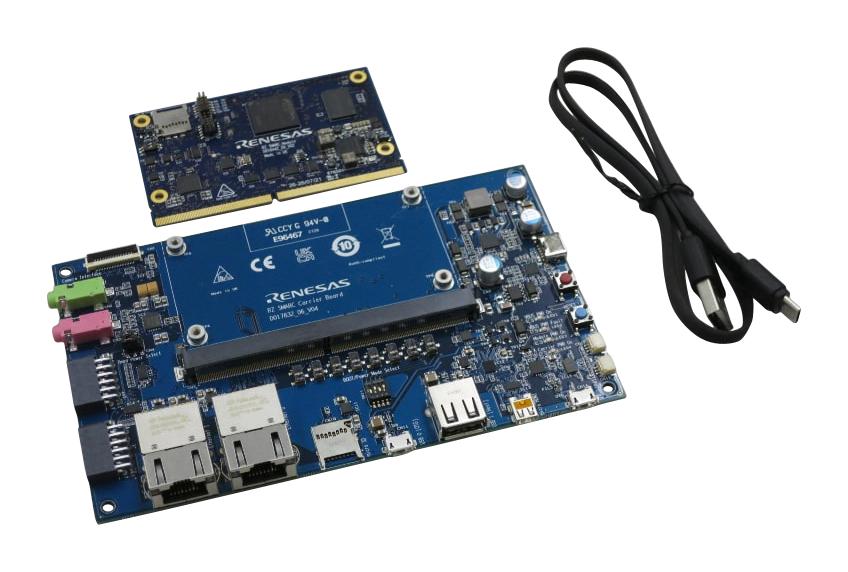

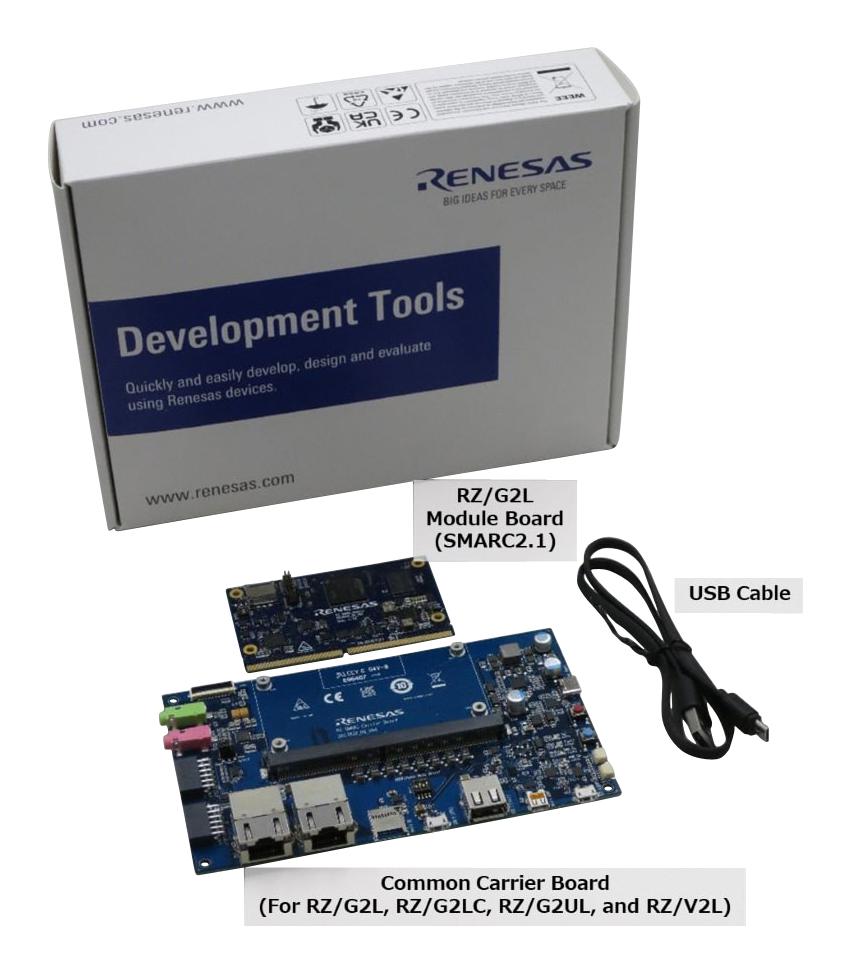

Evaluation board kit is ideal for evaluating RZ/G2L. It consists of a module board (SOM) and a carrier board. The carrier board can be commonly used with RZ/G2LC, RZ/G2UL and RZ/V2L modules (SOM) prepared according to the SMARC v2.1 standard. This allows to experience seamless and flexible evaluation between these devices.
- Cortex-A55 dual, Cortex-M33, non-secure
- Module board function ( 2GB DDR4 SDRAM, 512Mb QSPI flash memory, 64GB eMMC memory)
- The microSD card slot is implemented and used as an eSD for boot
- 5-output clock oscillator "5P35023" implemented and PMIC power supply "RAA215300" implemented
- FFC/FPC connector is mounted as standard for connection to serial interface for camera module
- Micro-HDMI connector via DSI/HDMI conversion MOD mounted as std for connection to serial interface
- Micro-AB receptacle, A receptacle are respectively mounted as std for connection to USB interface
- RJ45 connector is mounted as standard for software development and evaluation using Ethernet
- CAN connector is implemented for connection to CAN-Bus interface
- MicroSD card slot and 2 sockets for PMOD are implemented as an interface for RZ/G2L peripheral funts
Other details
| Brand |
RENESAS |
| Part Number |
RTK9744L23S01000BE |
| Quantity |
Each |
