RENESAS RTK7FPA8E1S00001BE Fast Prototyping Kit, R7FA8E1AFDCFB, 32bit, ARM Cortex-M85F

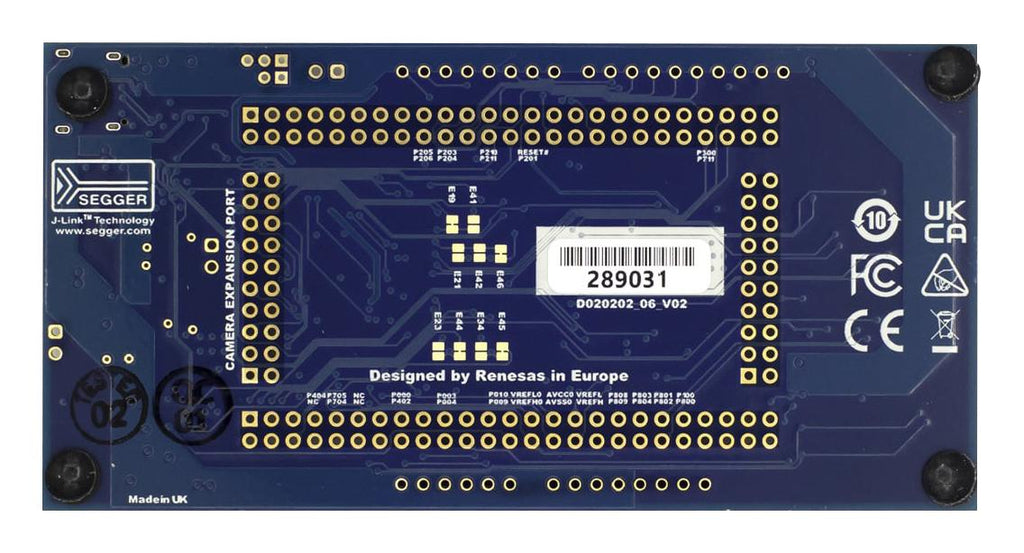

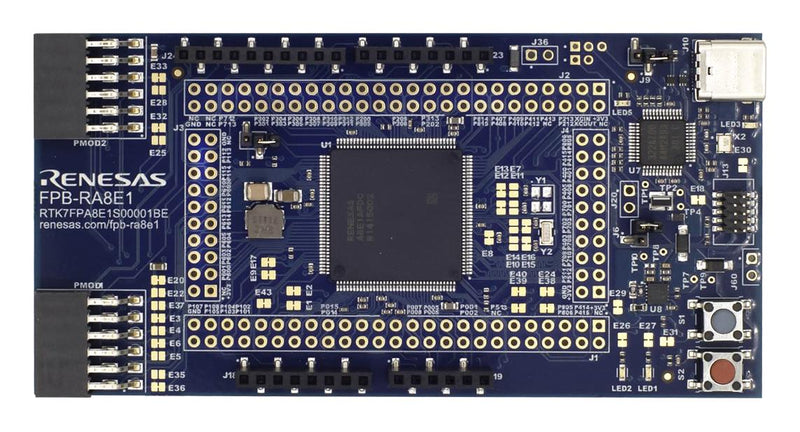

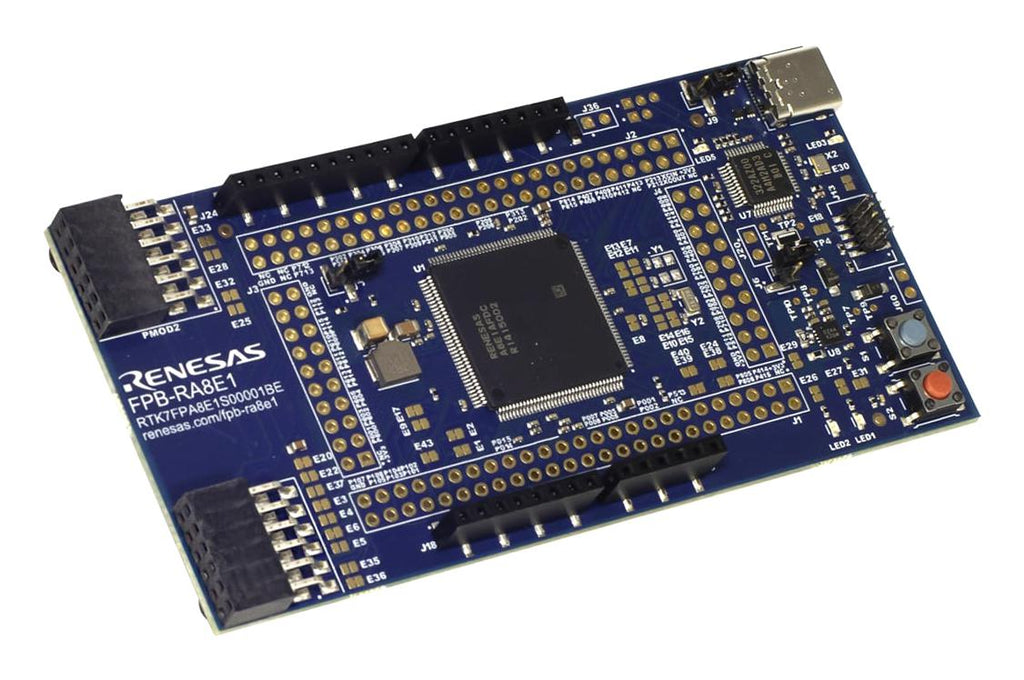

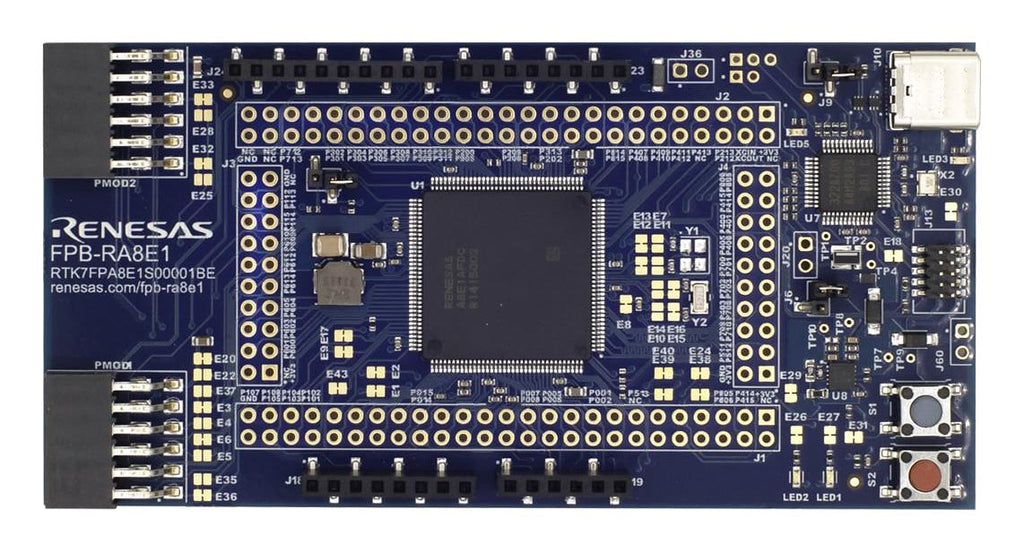

RTK7FPA8E1S00001BE is a FPB-RA8E1 fast prototyping board for RA8E1 MCU group. The RA8E1 fast prototyping board comes equipped with an R7FA8E1AFDCFB microcontroller and is an evaluation board specialized for prototype development for a variety of applications. It has a built-in SEGGER J-Link� emulator circuit so you can write/debug programs without additional tools. In addition, with Arduino Uno and Pmod� interfaces included standard and through-hole access to all pins of the microcontroller, and so on, it has high expandability.

• 360MHz, Arm® Cortex®-M85 core
• 1MB code flash, 12KB data flash, 544KB SRAM including 32KB of TCM, 144-pin, LFQFP package
• Native pin access through 1 x 20 and 2 x 50 male pin headers, 20-pin camera interface connector
• MCU current measurement point for precision current consumption measurement
• Ecosystem and system control access(two 5V input sources: USB debug, external power supply)
• Real-time clock backup supply connector (not populated)
• Two debug modes (debug on-board (SWD), debug in (SWD, SWO and JTAG))
• User LEDs and buttons (two user LEDs (green), one user button, one Reset button)
• 2 popular ecosystem expansions (2 Digilent Pmod� (SPI, UART, I2C) CONN, Arduino� (UNO R3) CONN)
• MCU boot configuration jumper

Contents

FPB-RA8E1 fast prototyping board (RTK7FPA8E1S00001BE), Quick start guide.
