RENESAS RTK7FPA0E2S00001BJ Evaluation Kit, R7FA0E2094CFM, RA Family, ARM, Cortex-M23, 32bit

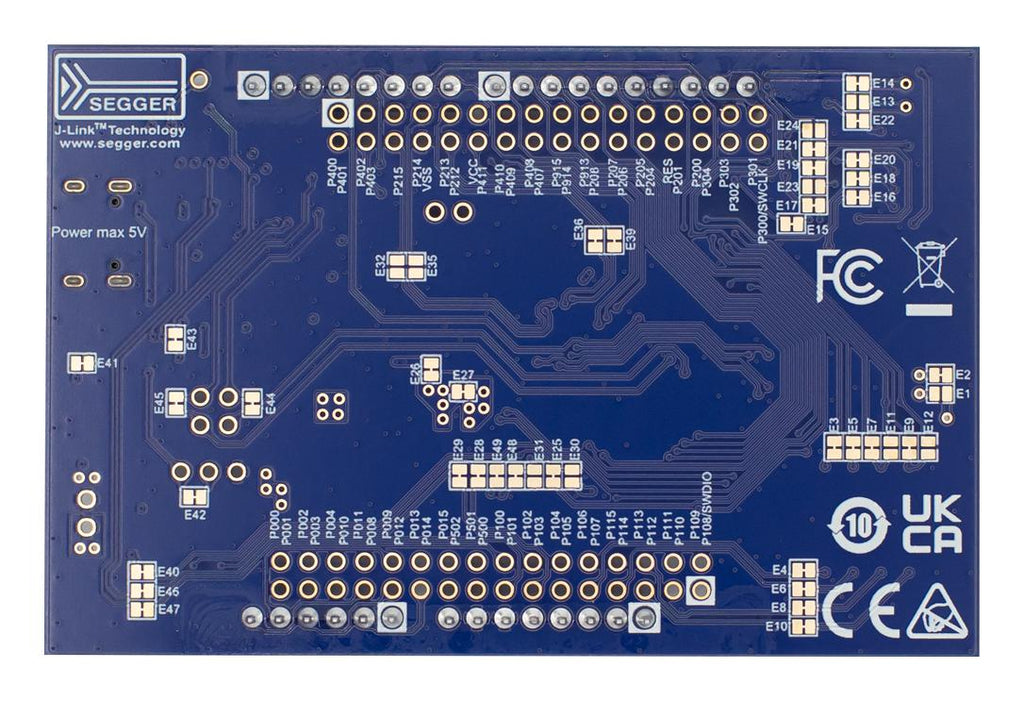

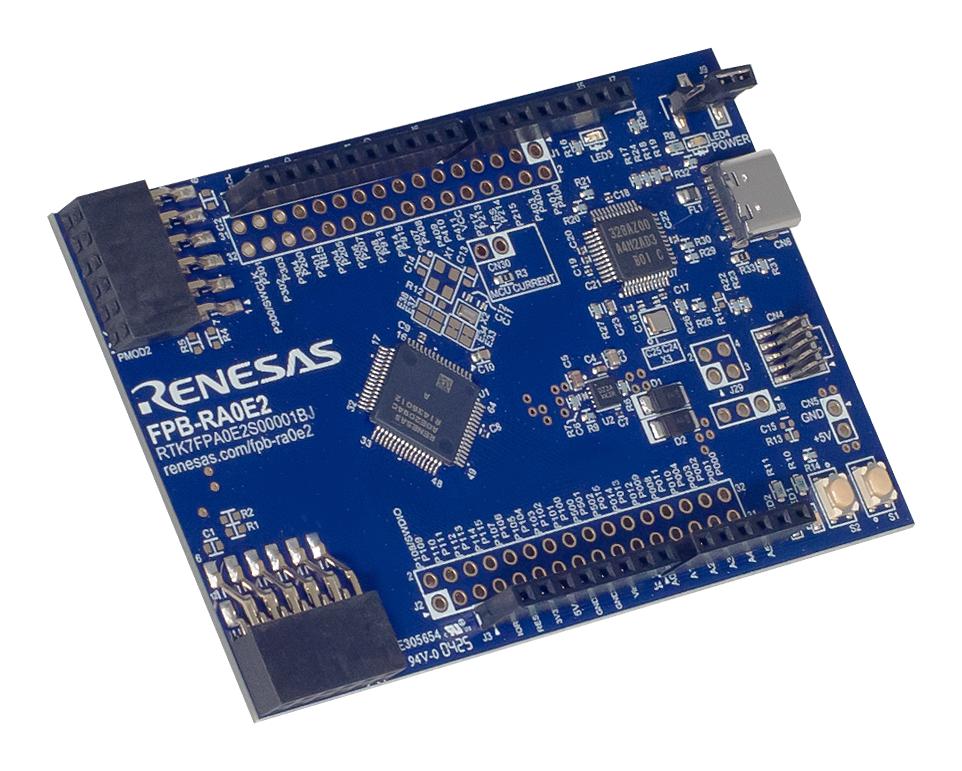

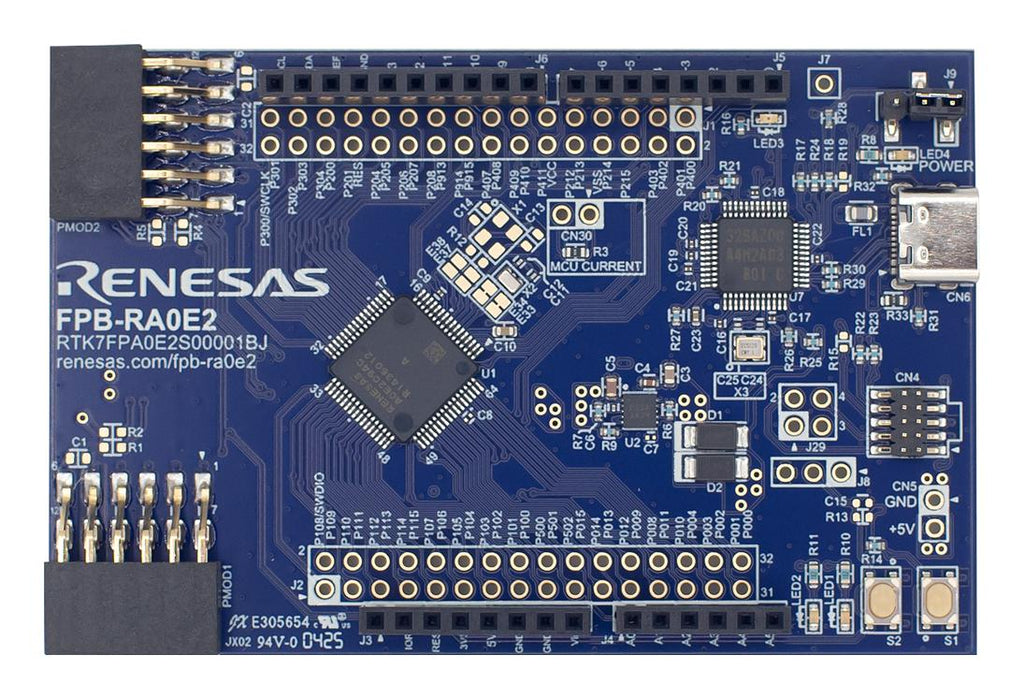

RTK7FPA0E2S00001BJ is a FPB-RA0E2 fast prototyping board that provides an entry point for evaluation, prototyping and development with the RA0E2 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for designing your own applications without the need to make further investments in tools. This product includes through-holes for pin headers that allow access to all MCU signal pins, allowing easy prototyping with the use of a breadboard.

• R7FA0E2094CFM MCU in 64-pin LQFP package
• 128KB ROM, 16KB SRAM, 2KB data flash memory on chip memory
• Board supply: 5V, VCC: 3.3V, MCU operating-voltage range: 1.6V to 5.5V
• USB connector: VBUS (5V input); VBUS is converted to 3.3V by LDO
• Reset switch x 1; user switch x 1
• Power indicator: green x 1, user: green x 2, on-board debugger ACT LED: yellow x 1
• USB 2.0 Type-C� connector and angle type, 12 pins x 2 Pmod� connectors
• Arduino® connectors: 6 pins x 1, 8 pins x 2, 10 pins x 1 (interfaces compatible with Arduino UNO R3)
• J-Link OB, connector: 10 pins Cortex® Debug connector

Contents

FPB-RA0E2 fast prototyping board (RTK7FPA0E2S00001BJ), Quick start guide (this document), USB 2.0 Type-C� cable (Type-C male to Type-C male).
