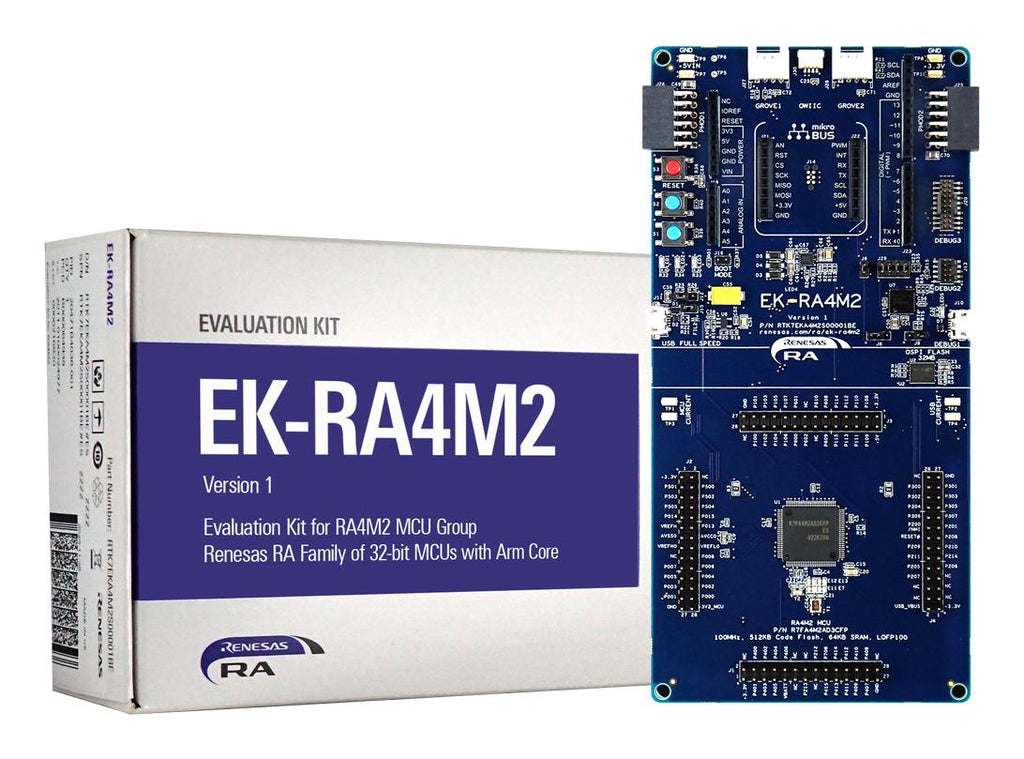

Renesas RTK7EKA4M2S00001BE RTK7EKA4M2S00001BE Evaluation Kit RA4M2 32bit ARM Cortex-M33 MCU

Evaluation kit for RA4M2 microcontroller group enables users to seamlessly evaluate the features of the RA4M2 MCU group and develop embedded systems applications using Flexible Software Package (FSP) and e2 studio IDE. The users can utilize rich on-board features along with their choice of popular ecosystems add-ons to bring their big ideas to life. It features three 5 V input sources such as USB (debug, full speed) and external power supply (using surface mount clamp test points and power input vias). The board has three user LEDs (red, blue, green), power LED (white) indicating availability of regulated power, debug LED (yellow) indicating the debug connection, two user buttons and one reset button.

• R7FA4M2AD3CFP MCU (referred to as RA MCU) with 100 MHz, Arm® Cortex®-M33 core
• Native pin access through 4 x 28-pin male headers
• MCU current measurement points for precision current consumption measurement
• USB full speed host and device (micro AB connector)
• 3 debug modes (debug on-board (SWD), debug in (ETM, SWD, and JTAG), debug out (SWD))
• 2 Seeed Grove® system (I2C/analogue) connectors, SparkFun® Qwiic® connector
• 2 Digilent Pmod (SPI and UART) connectors, Arduinoâ�¢ (Uno R3) connector
• MikroElektronikaâ�¢ mikroBUS connector
• MCU boot configuration jumper
• EK-RA4M2 board dimension is 80 mm (width) x 170 mm (length)

Contents

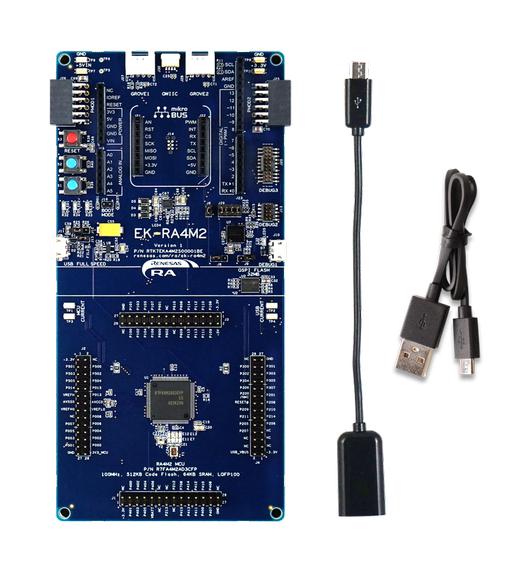

EK-RA4M2 v1 board, Micro USB device cable (type-A male to micro-B male), Micro USB host cable (type-A female to micro-B male).

Other details

Brand	RENESAS
Part Number	RTK7EKA4M2S00001BE
Quantity	Each
User Manual EN
Quick Start Guide EN
