Renesas RTK7EKA2E1S00001BE Evaluation Kit RA2E1 32bit ARM Cortex-M23 MCU

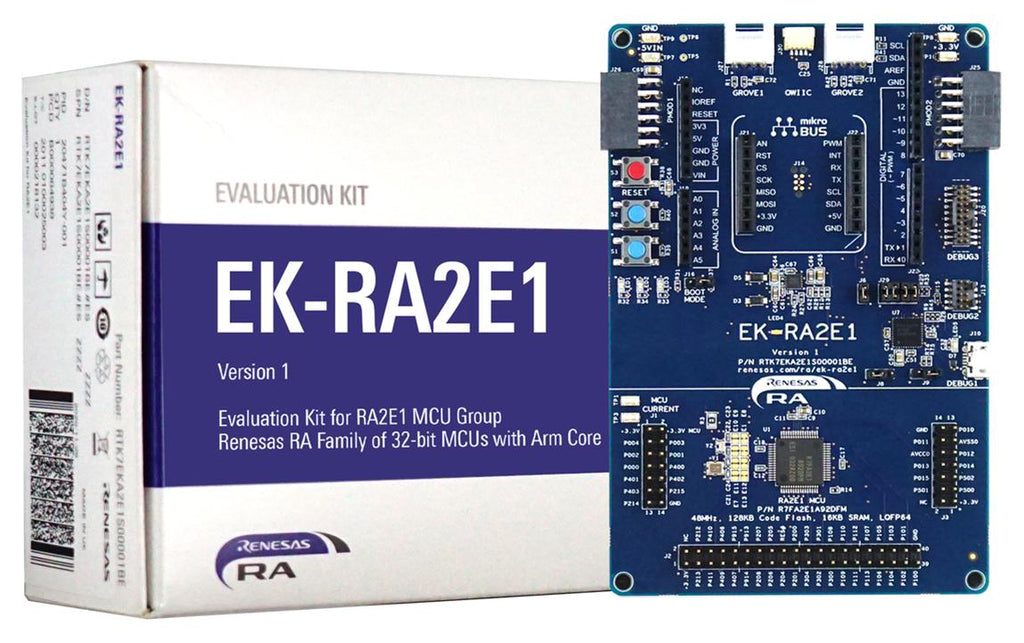

Evaluation kit for RA2E1 microcontroller group enables users to seamlessly evaluate the features of the RA2E1 MCU group and develop embedded systems applications using Flexible Software Package (FSP) and e2 studio IDE. The users can utilize rich on-board features along with their choice of popular ecosystems add-ons to bring their big ideas to life. It features two 5V input sources such as USB (debug) and external power supply (using surface mount clamp test points and power input vias). The board has three user LEDs (red, blue, green), power LED (white) indicating availability of regulated power, debug LED (yellow) indicating the debug connection, two user buttons and one reset button.

• R7FA2E1A92DFM MCU (referred to as RA MCU) with 48MHz, Arm® Cortex®-M23 core
• Native pin access through 1 x 40-pin and 2 x 14-pin male headers
• MCU current measurement points for precision current consumption measurement
• Multiple clock sources
• 3 debug modes (debug on-board (SWD), debug in (ETM, SWD, and JTAG), debug out (SWD))
• 2 Seeed Grove® system (I2C/analogue) connectors, SparkFun® Qwiic® connector
• 2 Digilent Pmod (SPI and UART) connectors, Arduino� (Uno R3) connector
• MikroElektronika� mikroBUS connector
• MCU boot configuration jumper
• Board dimension is 80 mm (width) x 120 mm (length)

Contents

EK-RA2E1 v1 board, Micro USB device cable (type-A male to micro-B male).

Other details

Brand	RENESAS
Part Number	RTK7EKA2E1S00001BE
Quantity	Each
Technical Data Sheet EN
Quick Start Guide EN
User Manual EN
