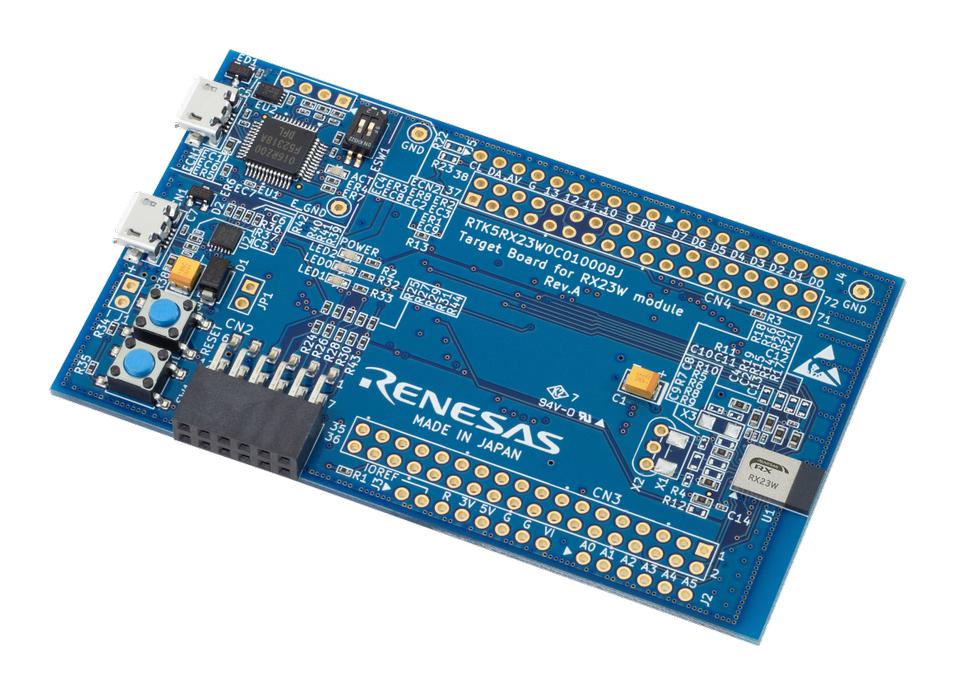

Target board for RX23W module provides an entry point to evaluation, prototyping and developing for the RX23W module. Moreover, since this board incorporates an emulator circuit, user can use it for their own application design without the need for further tool investments. This product provides through-holes for pin headers that allow access to all MCU signal pins, allowing an easy prototyping with a breadboard.
- On-board RX23W module
- Excellent choice for basic evaluation and development of selected module
- Full access to all pins by provided header through-hole connections
- Included on-chip debugging can be used for own development
- USB connector to power and debug the MCU (no USB cable included)
- Development environment like e² studio can be downloaded for free
- Board size is 54mm x 90mm, thickness is 1.6mm
- USB connector: 5V input, power-supply IC: 5V input, 3.3V output
- Power indicator: green x 1, user: green x 2. ACT LED: green x 1
- Pmod� connector, Arduino� UNO connectors, MCU headers, Arduino� UNO headers
Product details
| Silicon Manufacturer |
Renesas |
| No. of Bits |
32bit |
| Silicon Family Name |
RX |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
R5F523W8CDLN |
| Kit Contents |
Target Board RX23W Module |
| Product Range |
- |
Other details
| Brand |
RENESAS |
| Part Number |
RTK5RX23W0C01000BJ |
| Quantity |
Each |
| User Manual EN |
 |
