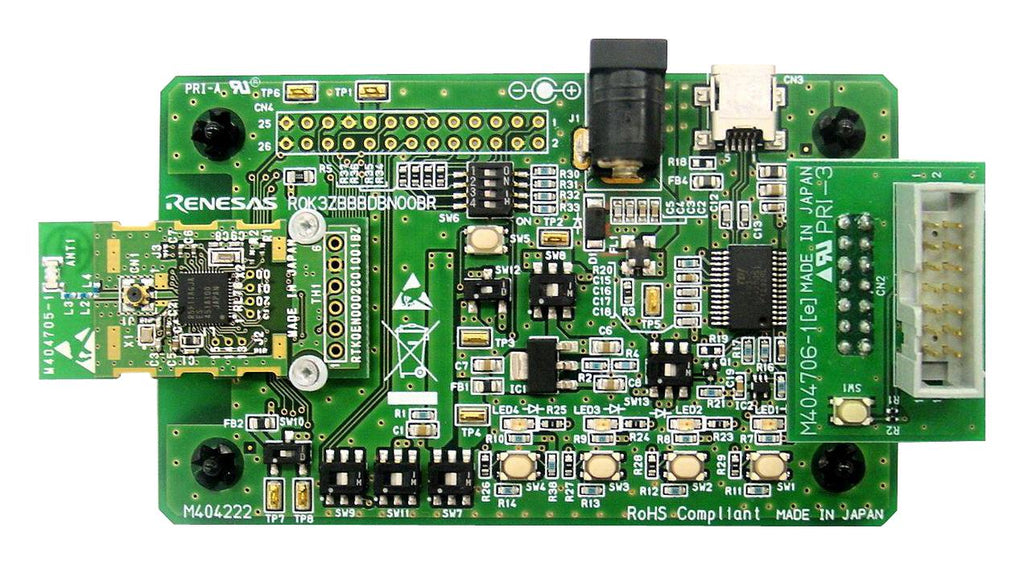

RTK0EN0001D01001BZ is a RL78/G1D evaluation board. This evaluation board consists of a module on which the RL78/G1D is mounted (RTK0EN0002C01001BZ) and an extension board for Bluetooth Low Energy evaluation (R0K3ZBBBDBN00BR) with peripheral functions such as push switches and LEDs.
- RL78/G1D wireless module
- USB interface, USB mini-B connector
- RESET switch, DIP switch (4-pole switch), push switches (four)
- Four LEDs
- 2.54mm pitch male connector with accidental insertion protection for connecting to an E1 emulator
- Supply current of 1A or higher
- Power supply for the RL78/G1D module: 1.8V to 3.6V
- Board size: 55mm x 90mm x 18mm
Footnotes This evaluation board does not include an AC adapter or battery box.
Product details
| Silicon Manufacturer |
Renesas |
| No. of Bits |
- |
| Silicon Family Name |
RL78/G1D |
| Core Architecture |
RL78 |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Kit Contents |
Evaluation Board RL78/G1D |
| Product Range |
- |
Other details
| Brand |
RENESAS |
| Part Number |
RTK0EN0001D01001BZ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
