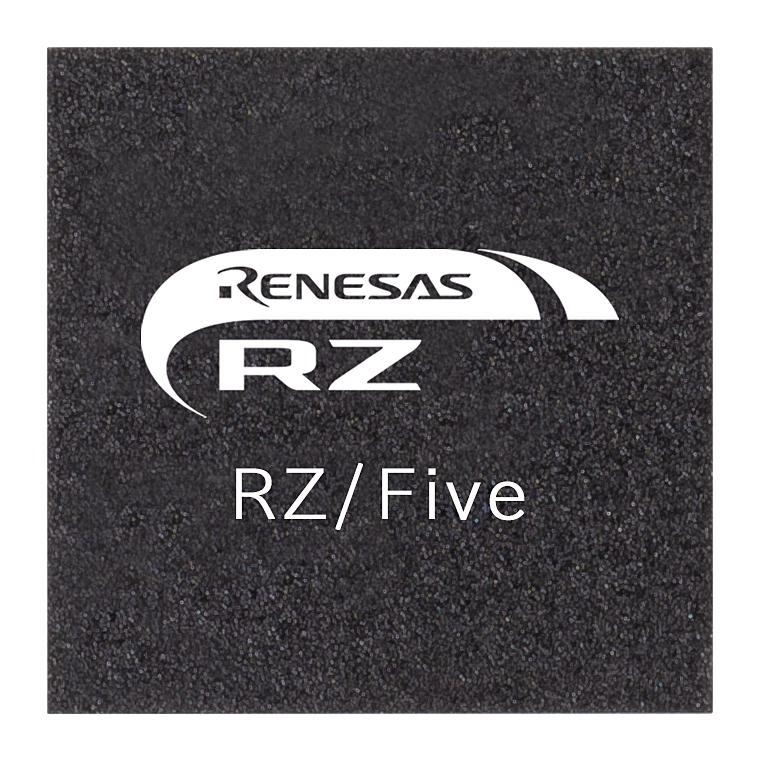

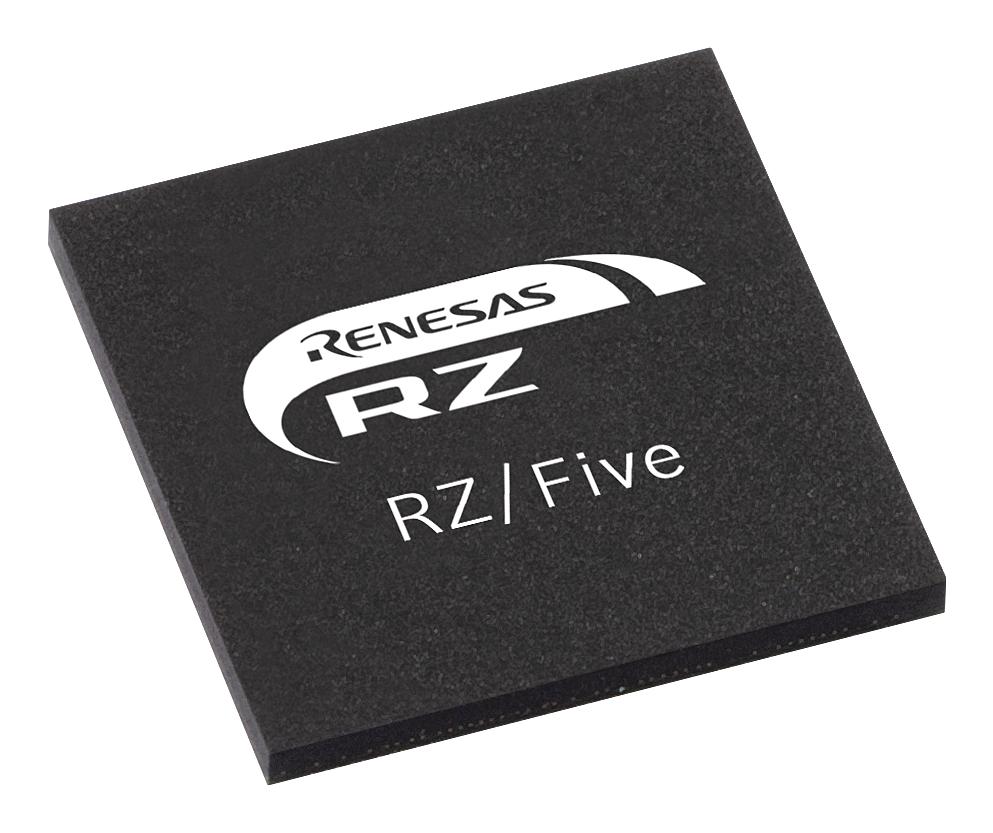

RZ/Five general-purpose microprocessor (MPU) is embedded with a 64-bit RISC-V ISA* compliant CPU (AX45MP Single) operating at 1.0GHz. It has many built-in interfaces including 16bit DDR3L/DDR4 interface, Gbit-Ethernet, CAN, and USB 2.0, making it ideal for applications such as entry-class social infrastructure gateway control equipment and industrial gateway control equipment. The RZ/Five MPU enables scaling of development through a mutual migration between Arm® and RISC-V cores.
- 1� AX45MP (1.0GHz)
- 16bit DDR3L/DDR4-1600 (in line ECC)
- 2� Gigabit Ethernet, 2� CAN (CAN-FD), 2� USB2.0 (host, host/peripheral)
- 2� SDHI (UHS-I, UHS-I/MMC), 1� SPI-Multi IO (4bit DDR), 4� I2C
- 5� UART, 3� RSPI, 2� 12bit ADC, 1� thermal sensor
- 1 channel Gigabit Ethernet
- 11mm x 11mm, 0.5mm pitch 266pins BGA package
Other details
| Brand |
RENESAS |
| Part Number |
R9A07G043F00GBG#AC0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
