R7FS7G27G2A01CLK#AC0 is a S7 series high performance Synergy� Synergy microcontroller. The MCU integrates multiple series of software- and pin-compatible Arm®-based 32bit cores that share a common set of Renesas peripherals to facilitate design scalability and efficient platform-based product development. The MCU in this series incorporates a high-performance Arm Cortex®-M4 core running up to 240MHz with the following features up to 4-MB code flash memory, 640-KB SRAM, graphics LCD controller (GLCDC), 2D drawing engine (DRW), capacitive touch sensing unit (CTSU), Ethernet MAC controller (ETHERC) with IEEE 1588 PTP, USBFS, USBHS, SD/MMC host interface, quad serial peripheral interface (QSPI), security and safety features, analogy peripherals. Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy.
- 3072KB program memory, 64KB data flash, 640KB SRAM
- Operating voltage range from 2.7 to 3.6V
- Maximum operating frequency is 240MHz
- 104 I/O ports
- 2ch x CAN
- 12bit x 2ch DAC
- Security and encryption
- 145 lead LGA package, operating temperature range from -40 to +85°C
Other details
| Brand |
RENESAS |
| Part Number |
R7FS7G27G2A01CLK#AC0 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

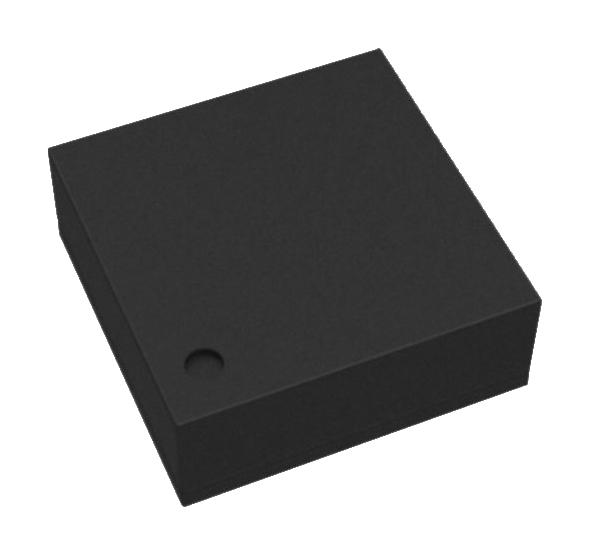

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
