Description
Product Overview
R7FA2E2A72DBY#HC1 is a RA2E2 group 48MHz Arm® Cortex®-M23 ultra-low power general purpose microcontroller. The RA2E2 Group is RA Family�s entry line single-chip microcontroller based on the 48-MHz Arm® Cortex®-M23 core with Renesas' innovative on-chip peripheral functions. RA2E2 Group offers ultra-low power operation and high speed serial communication with smallest package options of 20-pin and 24-pin QFN and 16-pin wafer-level CSP package, satisfying the needs of cost-sensitive and space-constrained applications. These RA2E2 Group microcontrollers enable extremely cost-effective designs for IoT sensor nodes, portable devices, industrial control, and any battery-operated application that requires developers to cut power consumption, cost and space.
- 48MHz Arm® Cortex®-M23
- 64KB program memory
- 2KB data flash and 8KB RAM
- WDT, GPT16 and AGTW timers
- AES128, AES256, TRNG security and encryption
- 12bit x 4-ch ADC
- 16bit x 6-ch, 32bit Asynchronous Timer x 2
- Supply voltage range from 1.6V to 5.5V

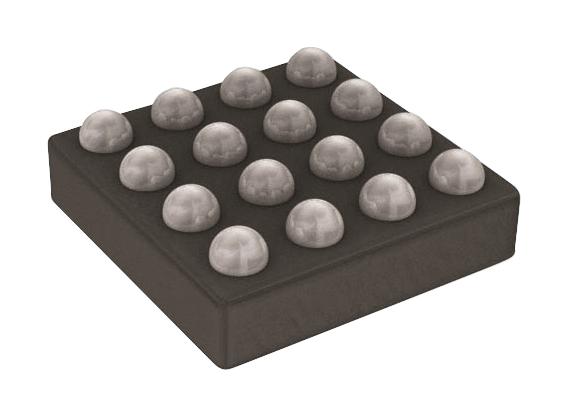

- 16 lead WLCSP package
- Temperature range from -40 to 85°C
Product details
Other details
| Brand | RENESAS |
| Part Number | R7FA2E2A72DBY#HC1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
