Description
Product Overview

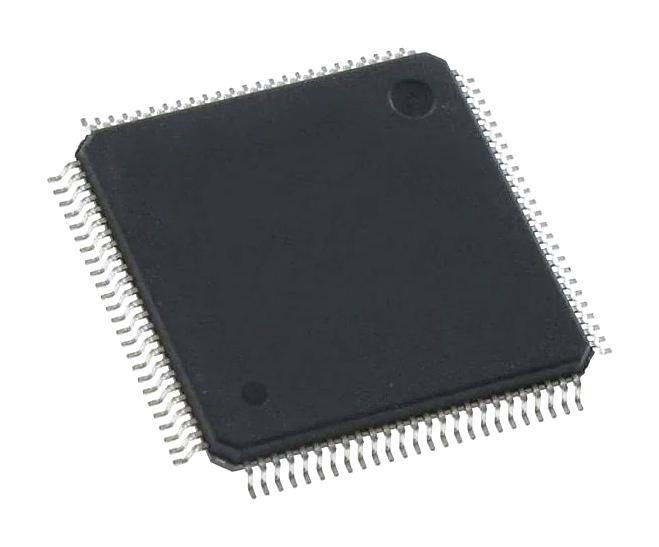

R7F124FPJ4AFB-C#AA0 is a F24 16bit single-chip microcontroller. Applications include general automotive electrical applications (motor control, door control, headlight control, etc.), and motorcycle engine control.
- 256KB code flash, 16KB data flash, 24KB RAM
- General-purpose register - 8bits x 32 registers (8 bits x 8 registers x 4 banks)
- High-speed on-chip oscillator clock, low-speed on-chip oscillator clock - 15KHz x 2 channels
- On-chip PLL, on-chip single-power-supply flash memory (with prohibition of block erase/writing)
- Self-programming (with boot swap function/flash shield window function), on-chip debug function
- On-chip power-on-reset (POR) circuit and voltage detector (LVD)
- On-chip watchdog timer (operable with the dedicated low-speed on-chip oscillator clock)
- Multiply/divide/multiply and accumulate instructions are supported
- On-chip key interrupt function, on-chip clock output/buzzer output controller
- 100 pin LQFP package, operating temperature range from -40°C to 125°C
Product details
Other details
| Brand | RENESAS |
| Part Number | R7F124FPJ4AFB-C#AA0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
