RENESAS R7F124FLJ4AFB-C#AA0 16 Bit Microcontroller, RL78, 16 bit, 40 MHz, 256 KB, 64 Pins

R7F124FLJ4AFB-C#AA0 is a F24 16bit single-chip microcontroller. Applications include general automotive electrical applications (motor control, door control, headlight control, etc.), and motorcycle engine control.

• 256KB code flash, 16KB data flash, 24KB RAM
• General-purpose register - 8bits x 32 registers (8 bits x 8 registers x 4 banks)
• High-speed on-chip oscillator clock, low-speed on-chip oscillator clock - 15KHz x 2 channels
• On-chip PLL, on-chip single-power-supply flash memory (with prohibition of block erase/writing)
• Self-programming (with boot swap function/flash shield window function), on-chip debug function
• On-chip power-on-reset (POR) circuit and voltage detector (LVD)
• On-chip watchdog timer (operable with the dedicated low-speed on-chip oscillator clock)
• Multiply/divide/multiply and accumulate instructions are supported
• On-chip key interrupt function, on-chip clock output/buzzer output controller

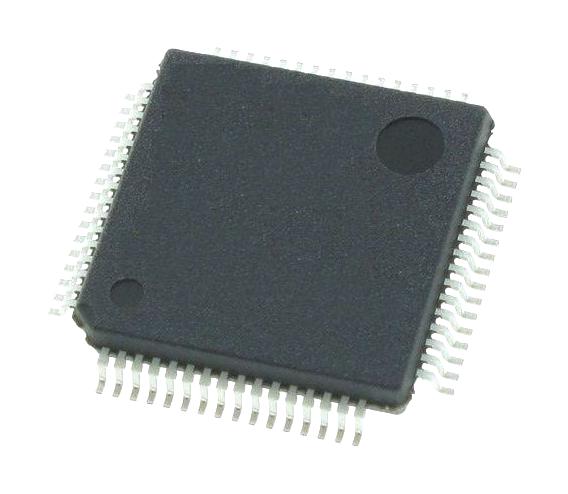

• 64 pin LQFP package, operating temperature range from -40°C to 125°C
