RX72T is a 32bit high-performance 200MHz operation microcontroller optimized for motor control in industrial, home appliance, and robotics applications. It is designed for motor control applications. The max. 200MHz RXv3 CPU core enables up to four inverters to be controlled simultaneously, with advanced security and safety functions for inverter control applications.
- RXv3 200MHz CPU core, 1024KB program memory, 32KB data flash, 128KB RAM
- Supply voltage range from 2.7 to 5.5V
- 78 I/O ports
- 7 UART, 8 x SPI, 8 x I²C, 1chn x CAN
- 8bit x 8ch, 16bit x 13ch, 32bit x 10ch timer, 12bit x 22ch ADC, 12bit x 2ch DAC
- Security and encryption, 2 watchdog timer, LVD, DMA, USB

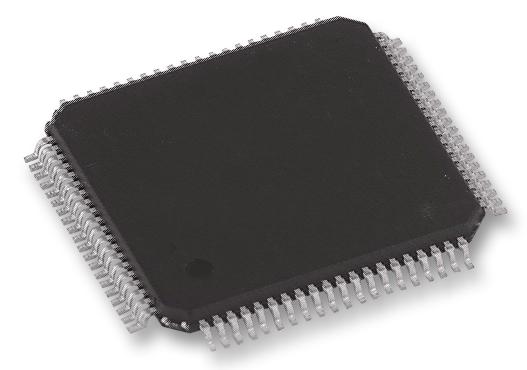

- 100 pin LFQFP package, operating temperature range from -40 to +85°C
Other details
| Brand |
RENESAS |
| Part Number |
R5F572TKGDFP#30 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
